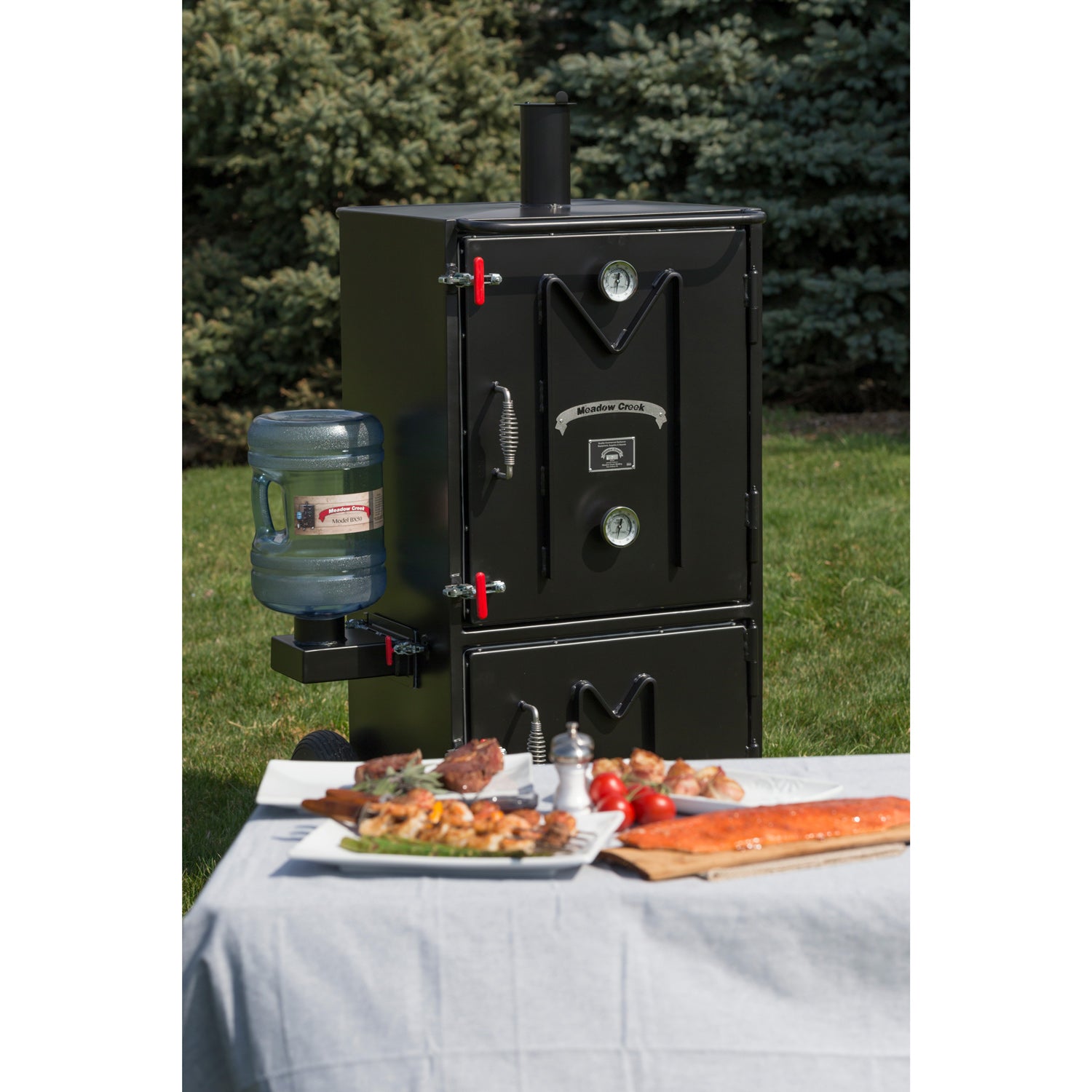

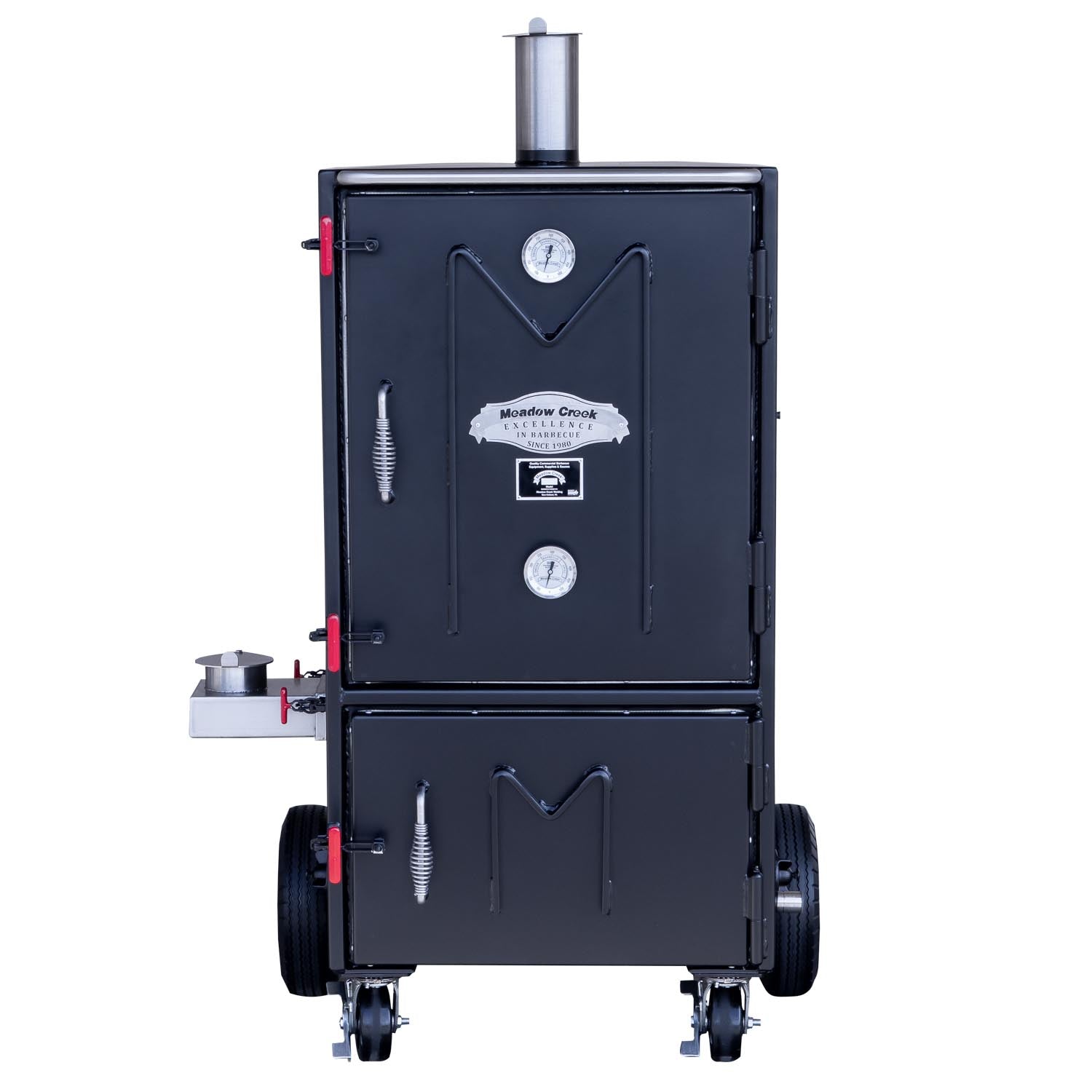

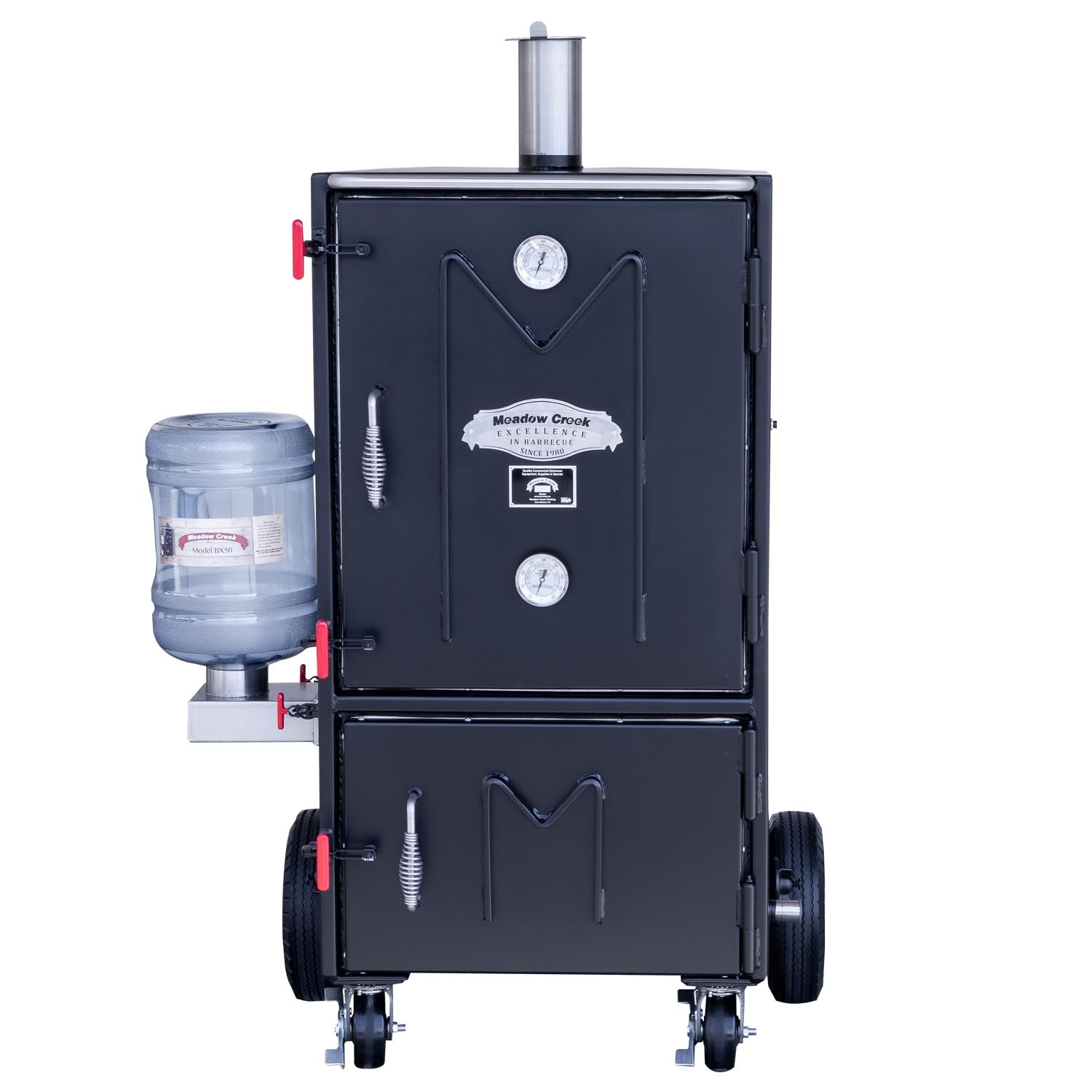

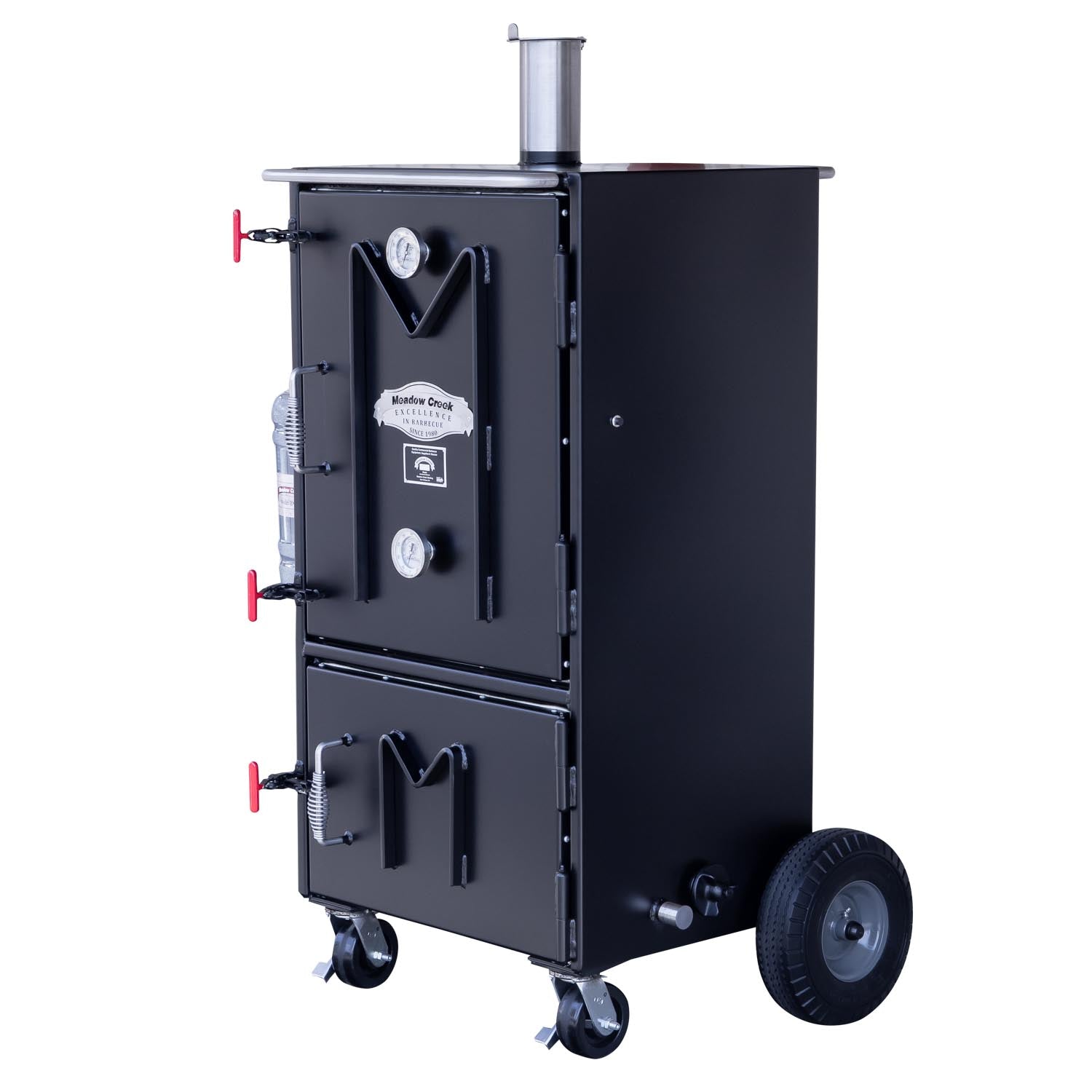

Meadow Creek BX50 Cabinet (Box) Smoker

Name: Meadow Creek BX50 Cabinet (Box) Smoker
Brand: Meadow Creek
SKU: BX50
Price: 5020.00 USD
Availability: InStock

$5,020.00

Optional add-ons shown in photos are not included and are sold separately.

FREIGHT QUOTE REQUIRED: Due to their size and weight, all Meadow Creek products require a custom freight quote. Place your order, and we’ll provide you with the best available shipping rate for your approval before finalizing your purchase. If the quote doesn’t meet your expectations, we’ll cancel your order and issue a full refund.

Build Time & Delivery

Meadow Creek products are made to order, with an estimated 2–4 week production lead time. Plus, an additional 7–10 business days for shipping.

Return & Refund

Meadow Creek products are custom-made to order and final sale. Each item is crafted specifically for your order and, as such, cannot be returned, exchanged, or refunded under any circumstances.

Warranty

Meadow Creek products are covered by a 1-year warranty against defects in materials and workmanship under normal use. Stainless steel grates are covered for 25 years against rust and weld failure.

This warranty is limited to repair or replacement of defective parts at Meadow Creek’s discretion and applies only to the original purchaser. It does not cover damage from misuse, accidents, alterations, improper maintenance, or normal wear. Tires, wheels, brake systems, burners, and other accessories are covered only by their manufacturer’s warranties. Labor, shipping, and incidental or consequential damages are not included.

For full warranty terms and conditions, please consult the manufacturer’s manual.

Documentation Downloads

Meadow Creek Buyer Guide
Meadow Creek Product Catalog
Meadow Creek Products Specifications Sheet

Box smokers have been doing well at competitions and backyarders love them because they’re compact, easy to use, and efficient to run. Combined with Meadow Creek’s 40+ year tradition of outstanding quality and service, the BX50 Cabinet Smoker is setting the woods on fire.

What really sets this box smoker apart is the ability to use it with or without water! Unlike some cabinet smokers on the market, such as the famous Backwoods Competitor, the BX50 works fine without water, which means you can use it for jerky. The water does help stabilize the temperature, but it does a very good job without water too.

The BX50 also comes standard with an auto-feed water system and a 5-gallon water jug for hassle-free water smoking.

Each cooking grate holds a full size pan.

This smoker is easy to use and quite efficient too, running at 250 degrees F for at least 8 hours on 20 pounds of charcoal. There are two thermometers for monitoring the inside of the cooking chamber. Using the BX50 as a water smoker, you should see only several degrees difference between the top and bottom thermometers once it’s up and running.

Whether you cook in the backyard, competitions, or in a commercial catering setting, the Meadow Creek BX50 is the next cool smoker to have.

Features

Double walls with 1" insulation

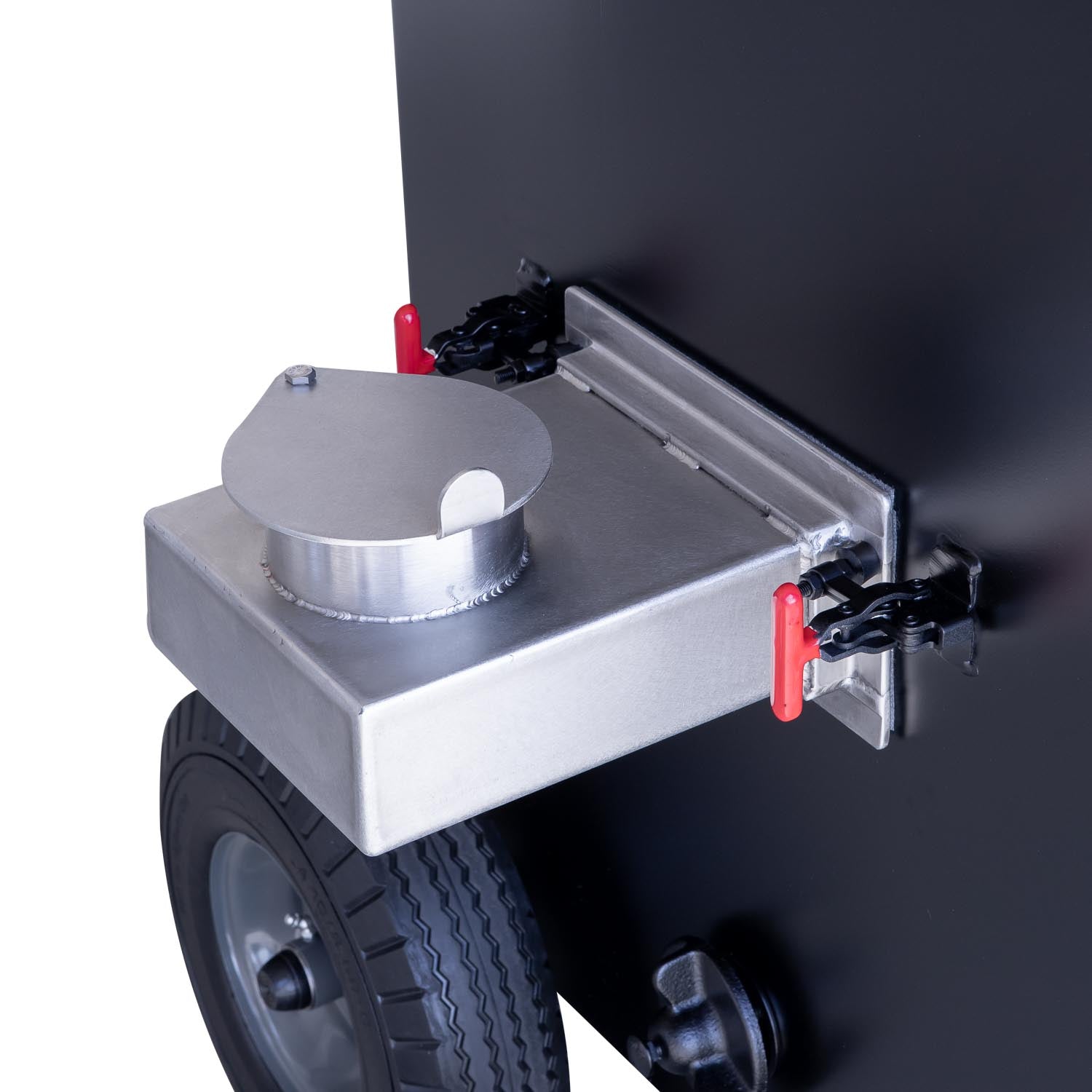

Auto-feed water system and a 5-gallon water jug
Removable water pan
Built for wet and dry smoking

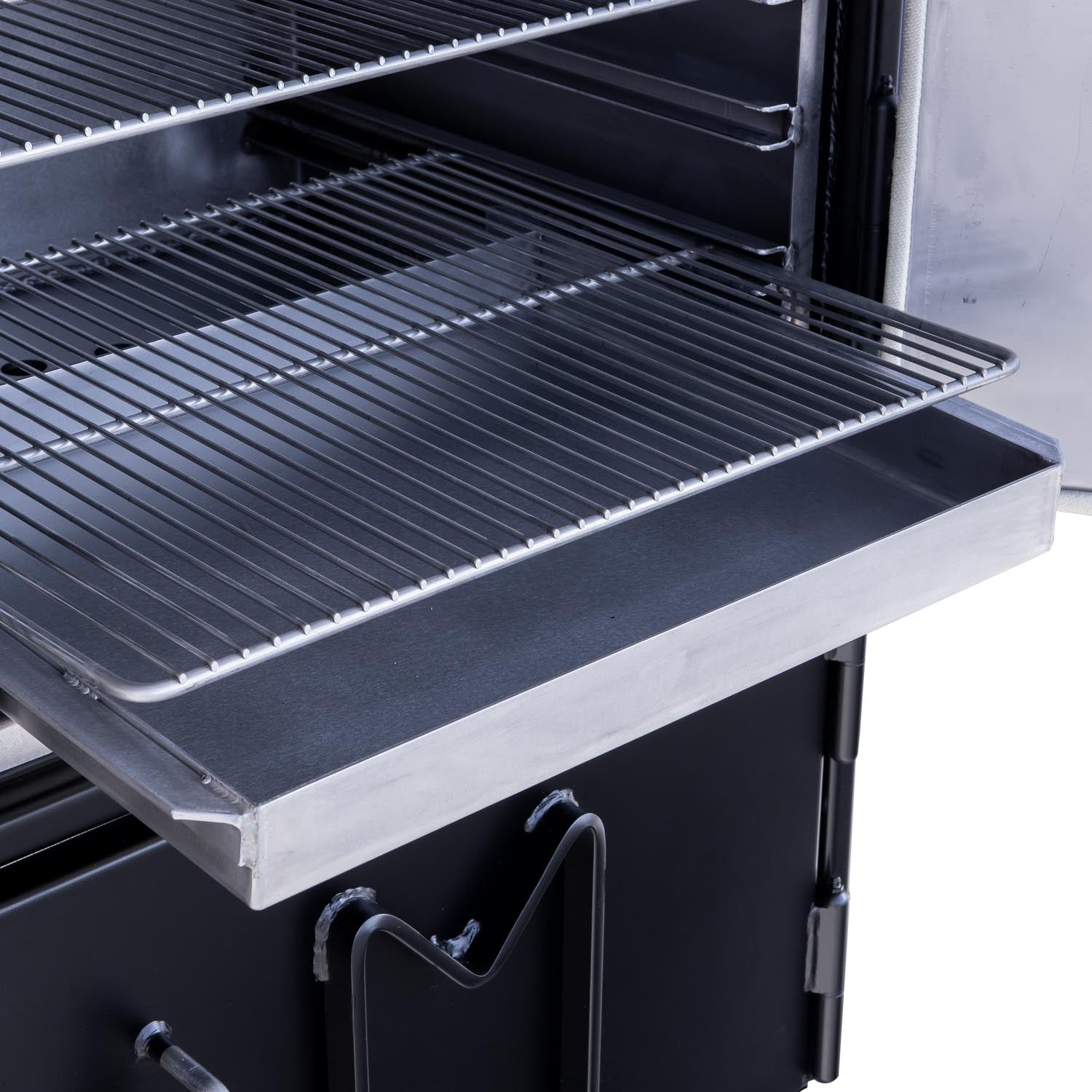

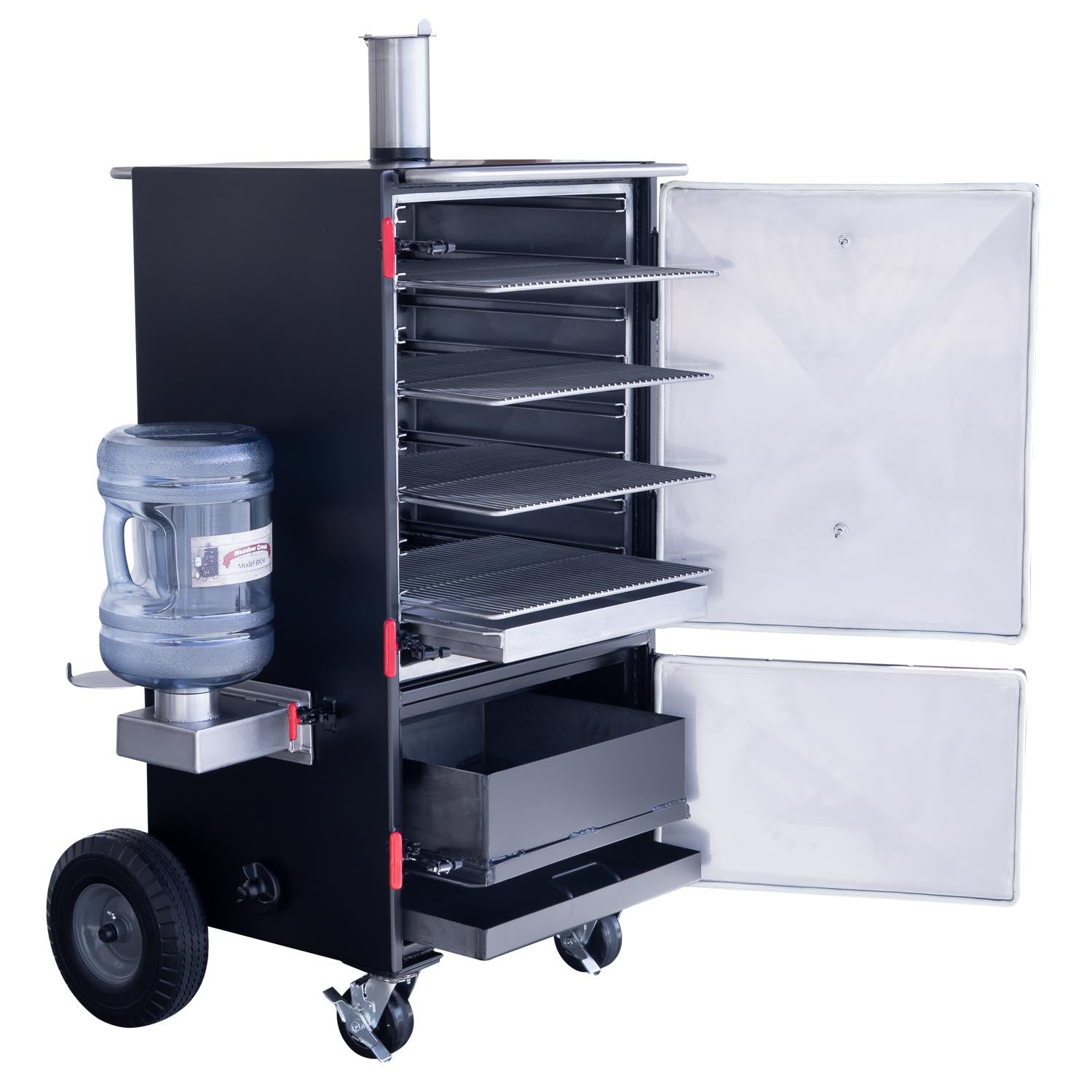

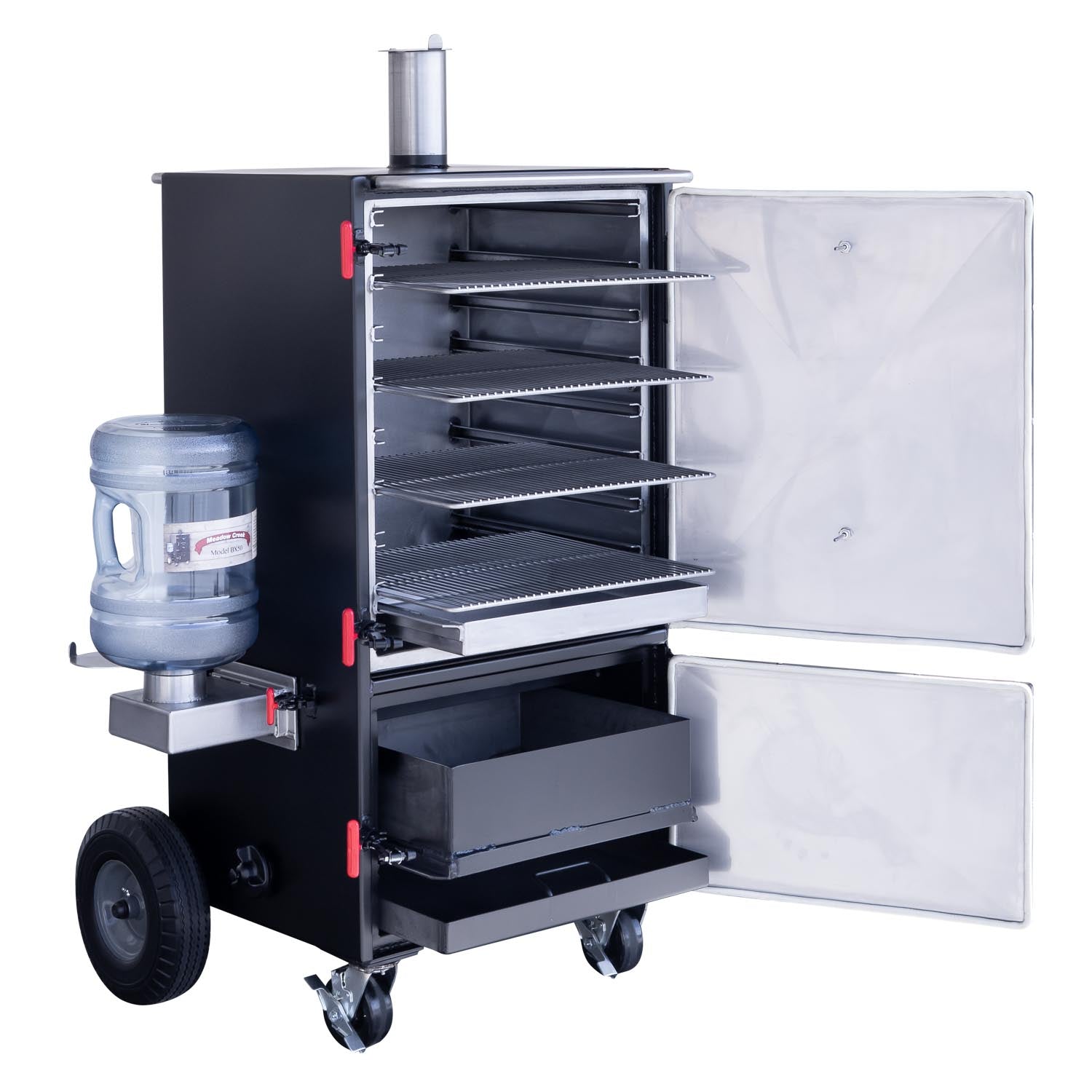

Slide-out cooking grates made of rust-free food-grade T304 stainless steel rod
Adjustable grate configuration (There are 7 slots total, with the option of adding three more grates.)
Painted with black heat-resistant paint in an attractive matte finish

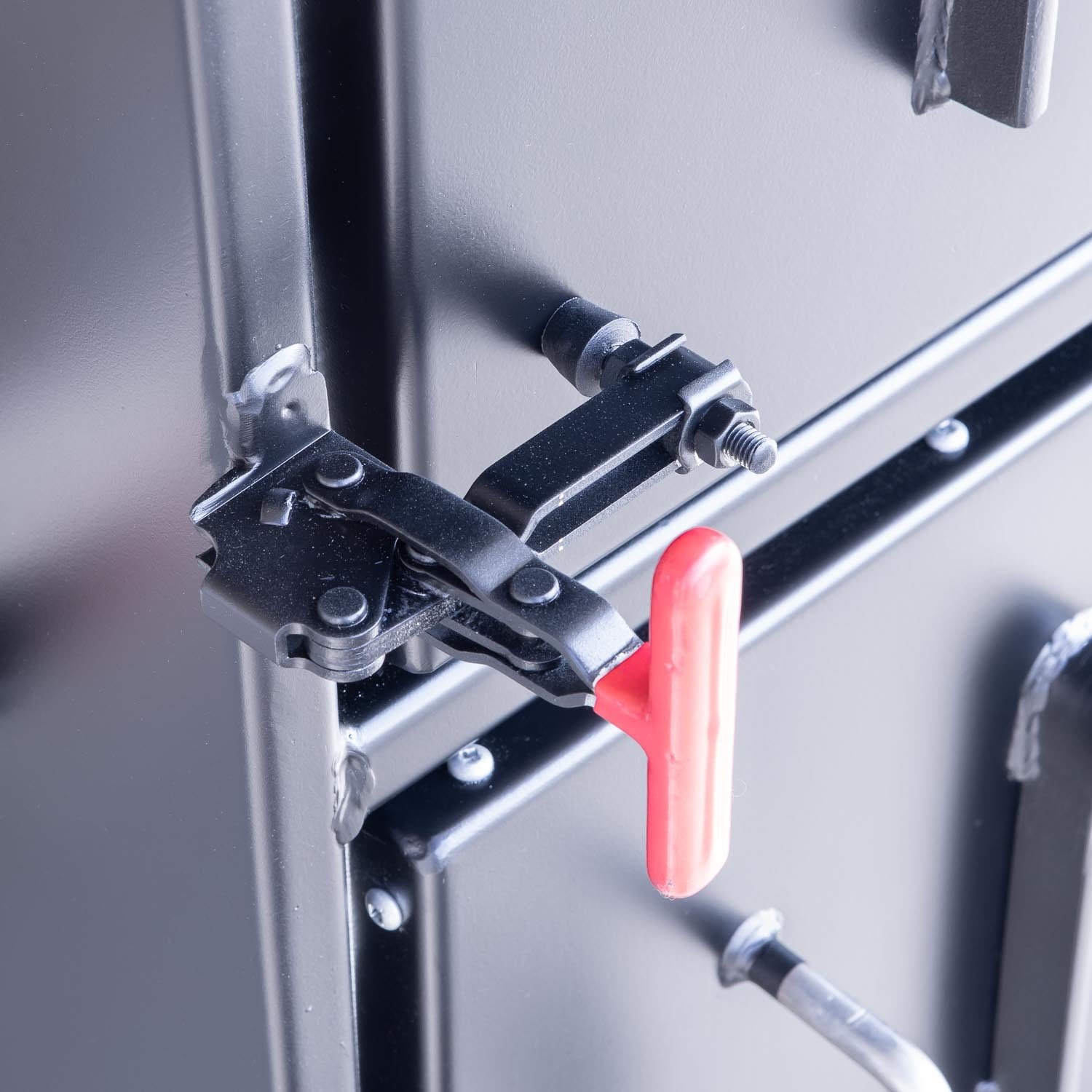

Positive-lock latches on all doors
Built-in Guru adapter for temp controller mounting

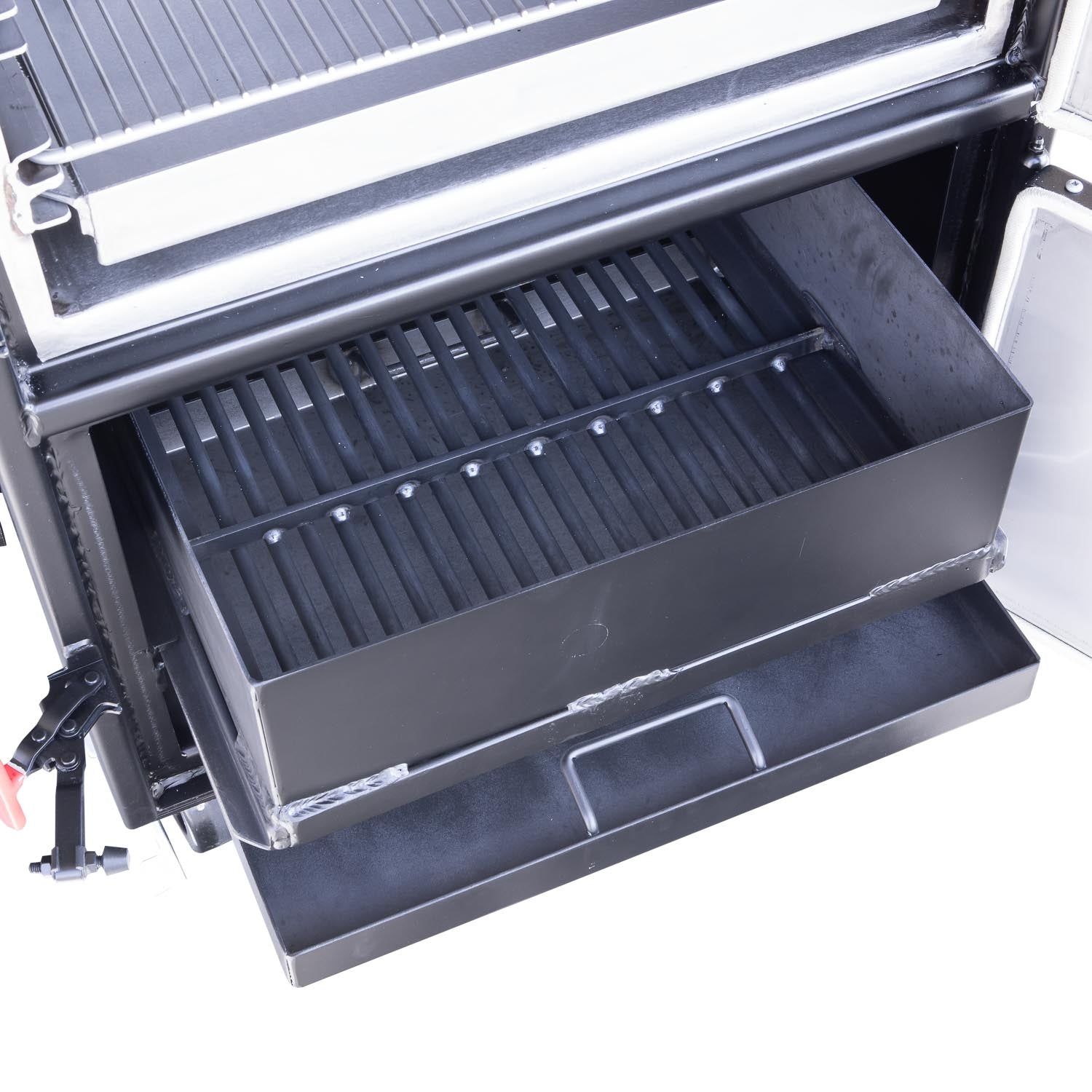

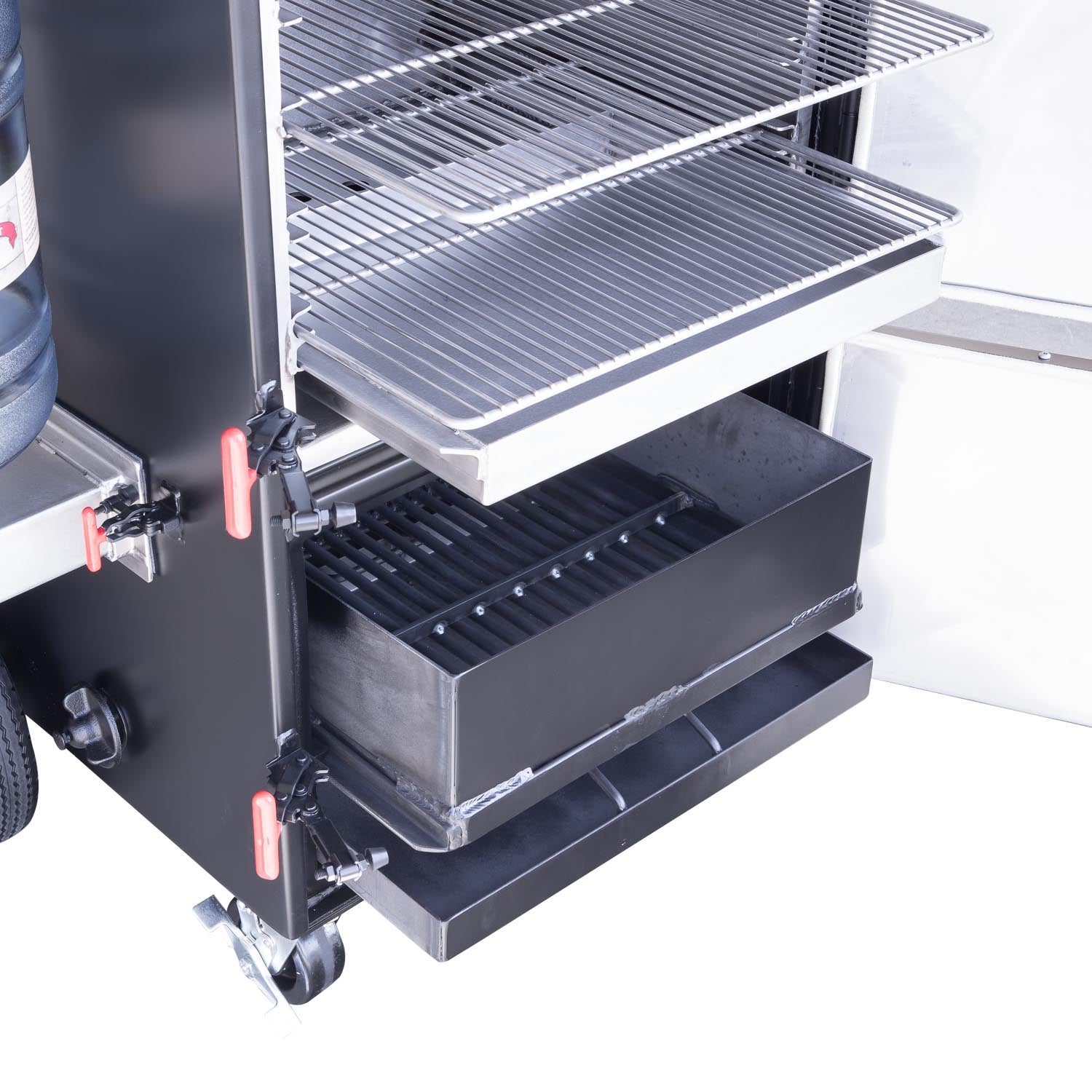

Slide-out charcoal basket with a grate for the ashes to fall through

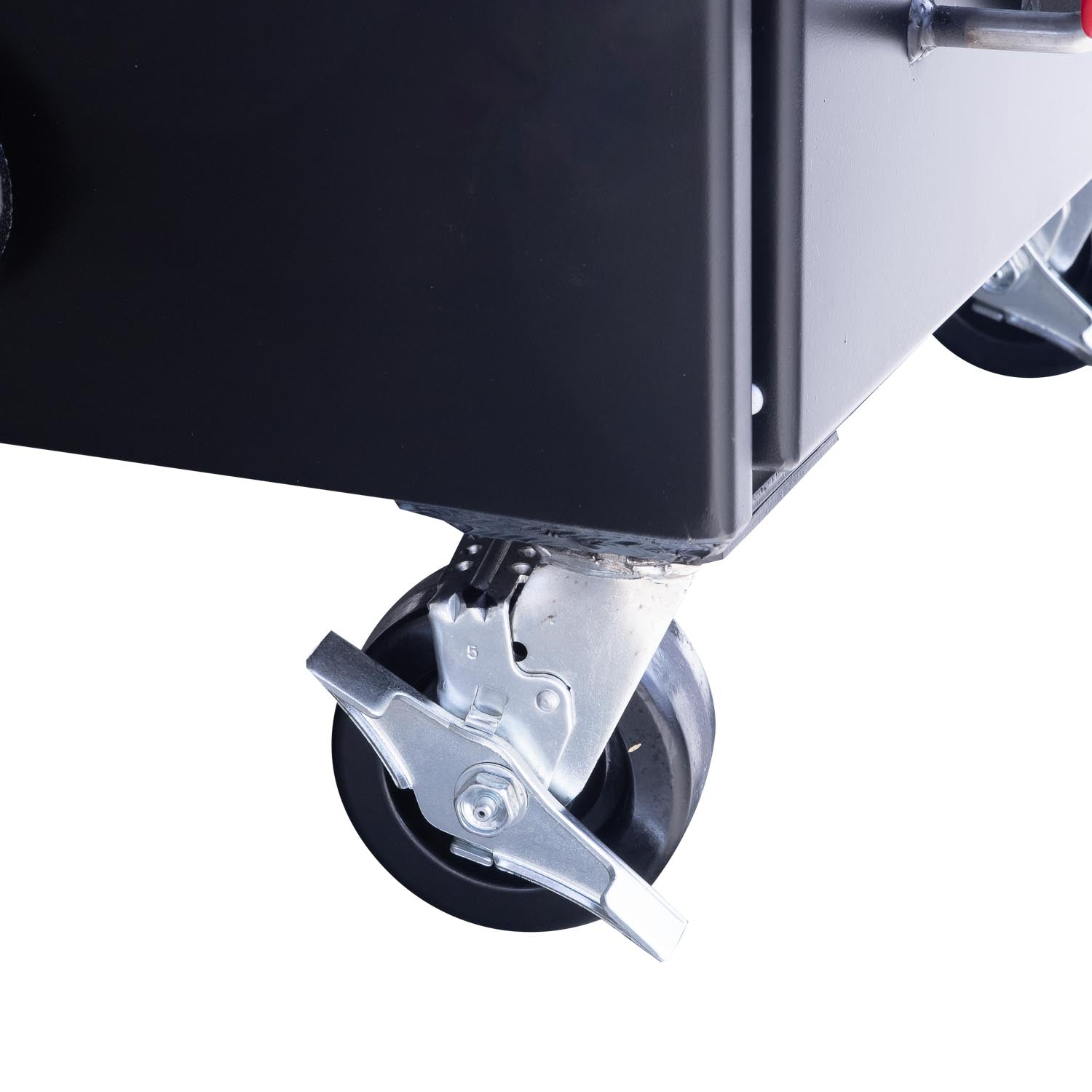

Rolls on 2 solid tires and 2 locking casters
Stainless steel handles

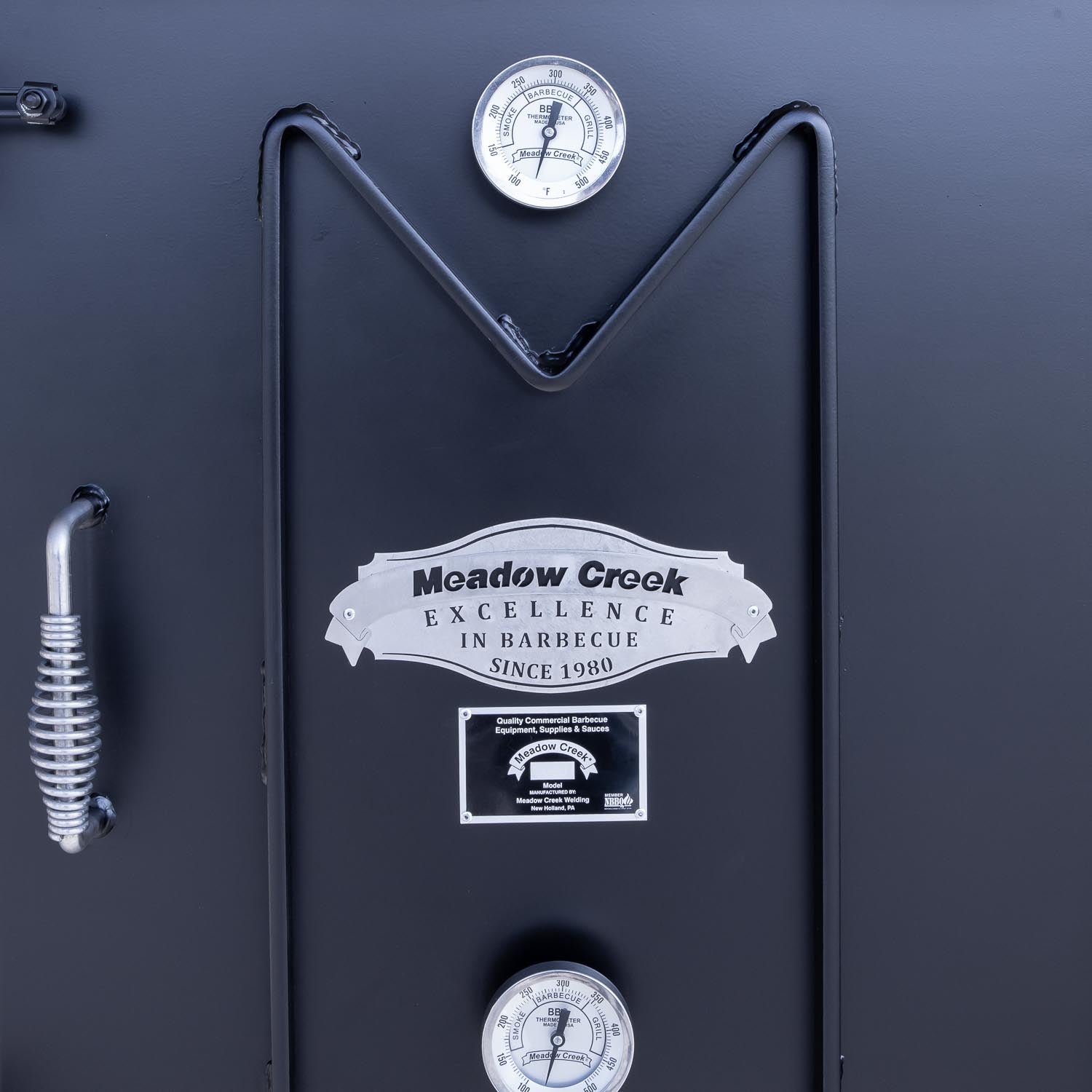

2 stainless steel calibratable thermometers

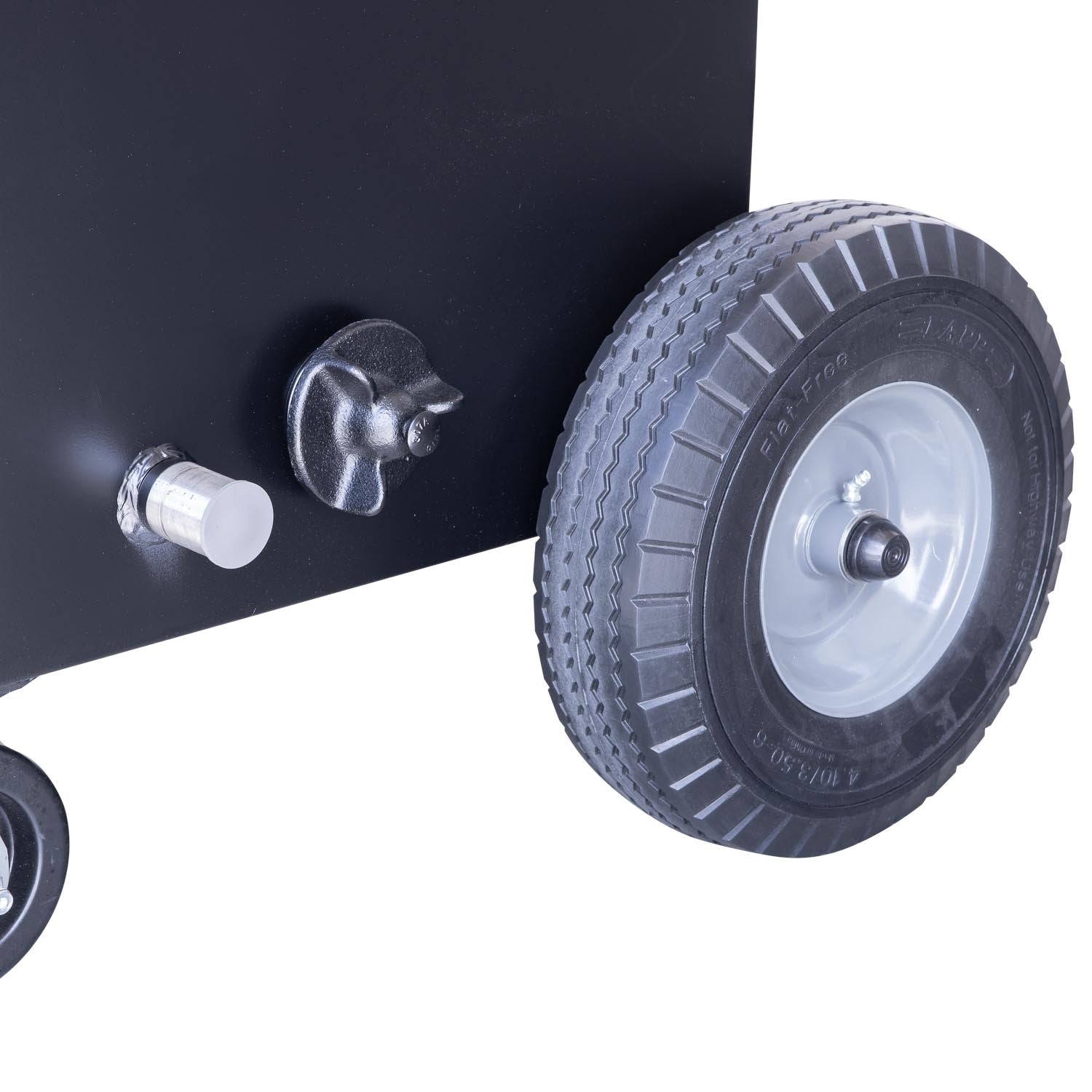

Cast iron spin vents at the bottom of the firebox for precise draft control

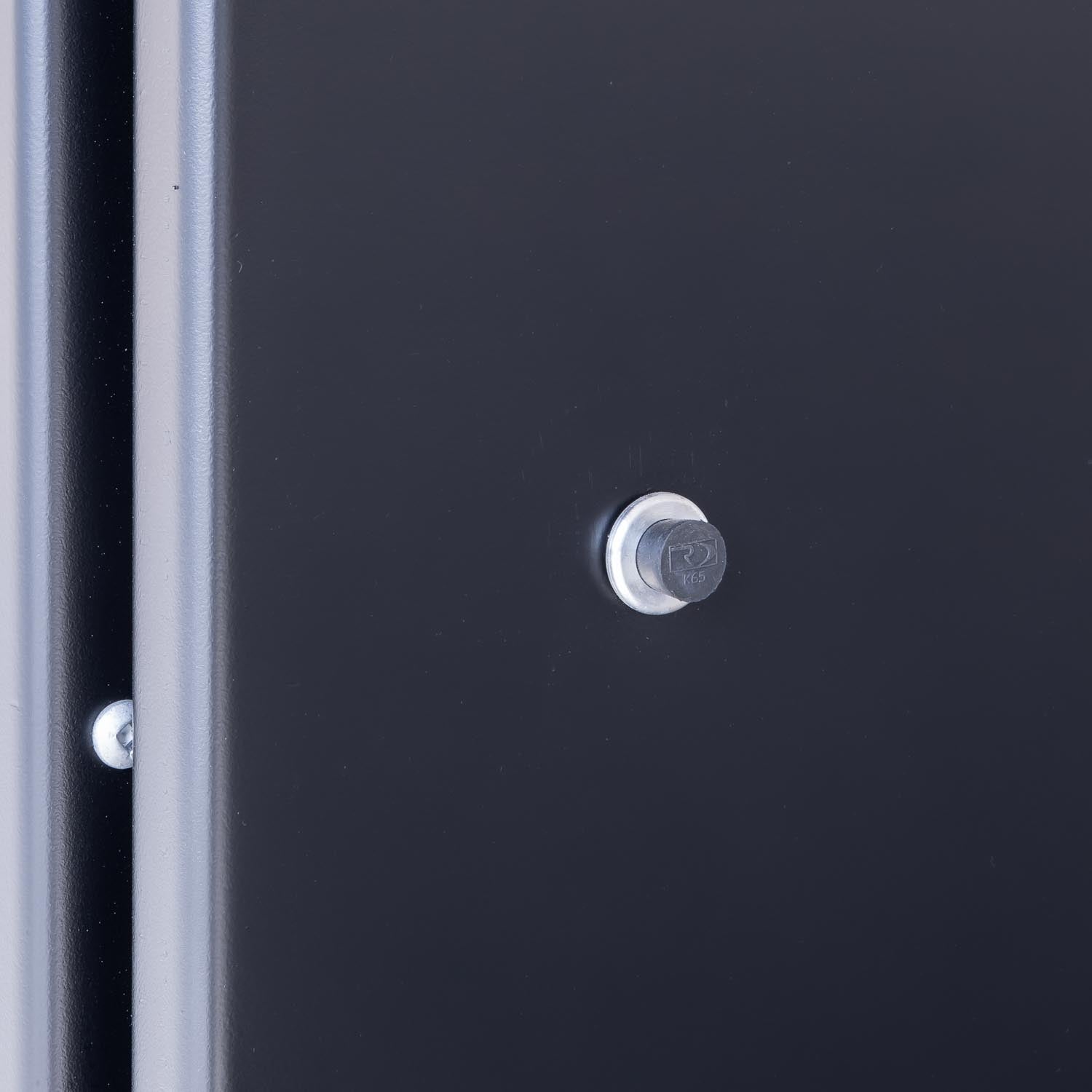

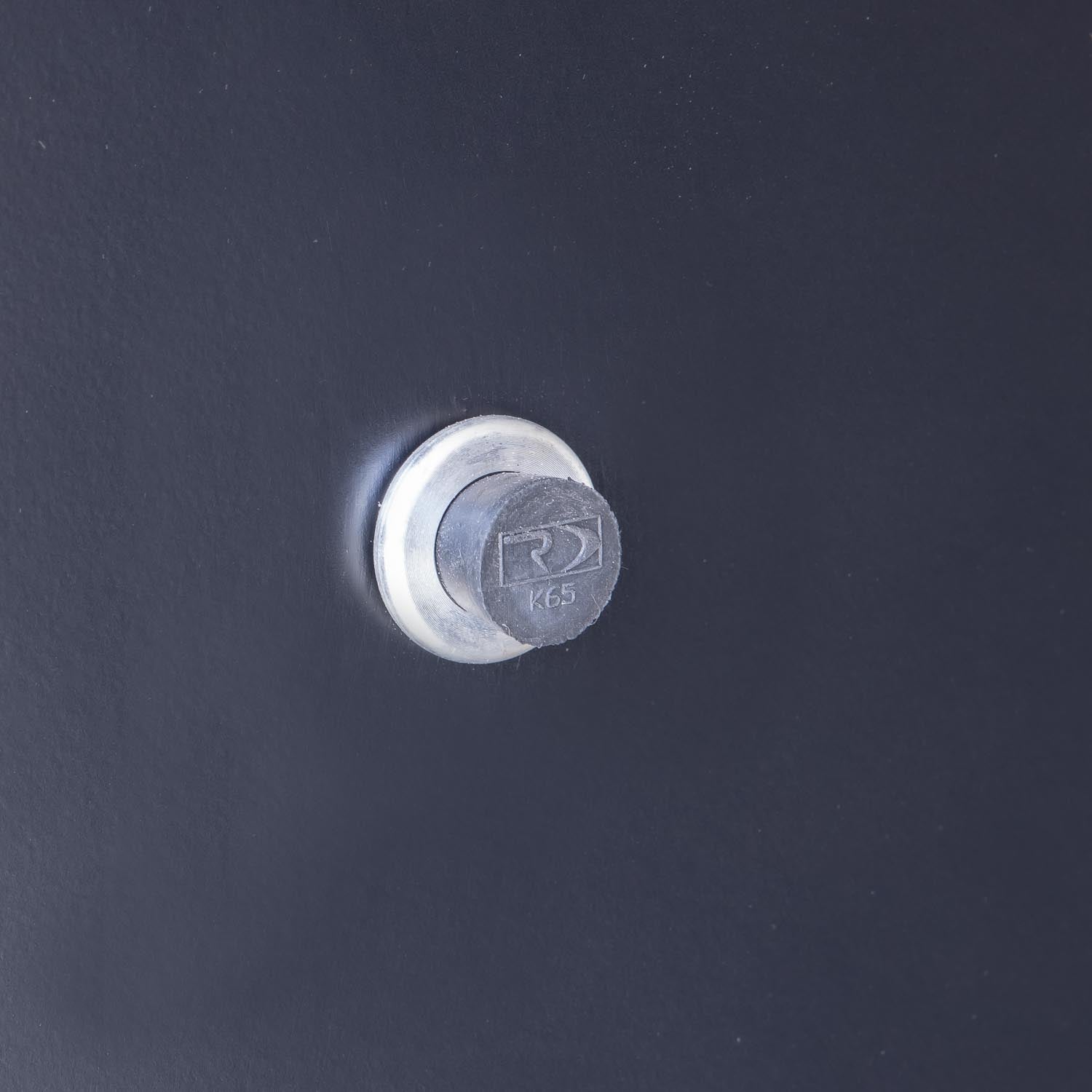

Probe port with plug
Uncoated steel interior

Specifications

Overall Dimensions	66”h x 44”w x 34”d
Smoking Chamber Dimensions	29"h x 24"w x 20"d
Cooking Area	11.56 sq. ft. (1665 sq. in.)
Fire Basket Dimensions	6”h x 18”w x 20”l
Grate Dimensions	18” x 22”
Number of Grates	4
Grate Style	Wire Grid With 1/2” Spacing
Insulation Thickness	1”
Metal Thickness	13 Gauge
Net Weight	625 lbs.
Shipping Weight	725 lbs.
Capacity of Pork Butts	16
Capacity of Baby Back Ribs	16
Capacity of Spare Ribs	8
Capacity of St. Louis Ribs	12
Capacity of Whole Briskets	8
Capacity of Brisket Flats	12-16
Capacity of Chicken Halves	32

Gas Assist Add On

The Taste of Wood: The Convenience of Gas
Do you love traditional wood and charcoal smokers, but wish you could “cheat” once in a while? How would you like to throw away your weed burner and preheat your smoker with the flip of a switch? Or start an all-night cook and go to sleep, knowing your temp will stay rock-solid even after the coals burn down?

Meadow Creek’s revolutionary gas-assist option turns a TS or BX smoker into a shape-shifting jack-of-all-trades. Driven by a powerful Wayne burner, it can preheat your smoker, light your wood or charcoal, and lock in your pit temp within 5 degrees of your set point.

It’s like having two pits in one. Smoke the traditional way with just coals and wood, cook on gas alone, or perfect your favorite hybrid approach for the best of both worlds. You’ve never smoked like this before.

Gas Assist Features

Weatherproof housing
Electronic thermostat with digital readout
Connects to 110-volt power with a regular extension cord
Low-pressure gas regulator and gas quick attach
Connects to a regular LP gas grill tank
Maintains consistent temperature automatically
