General Information

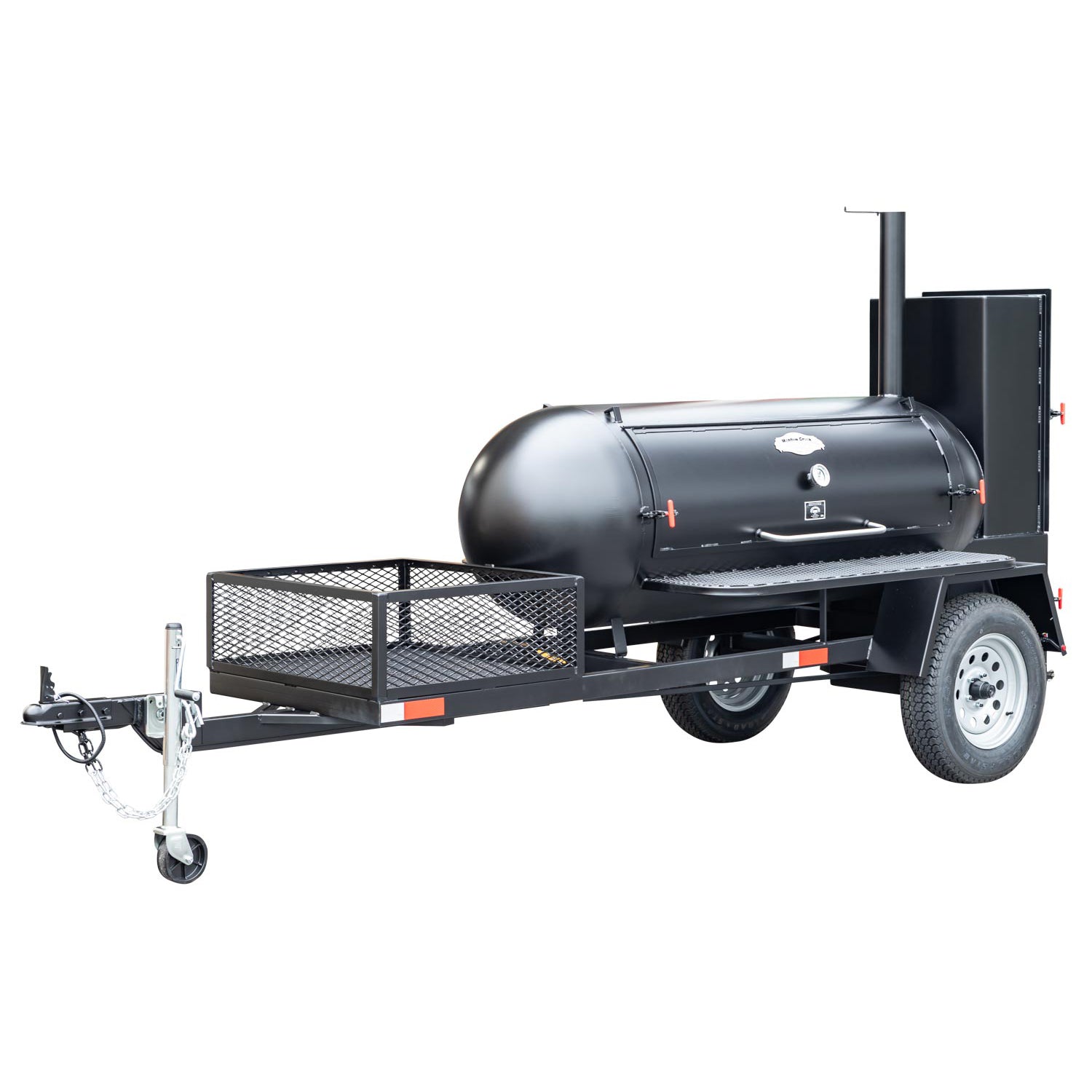

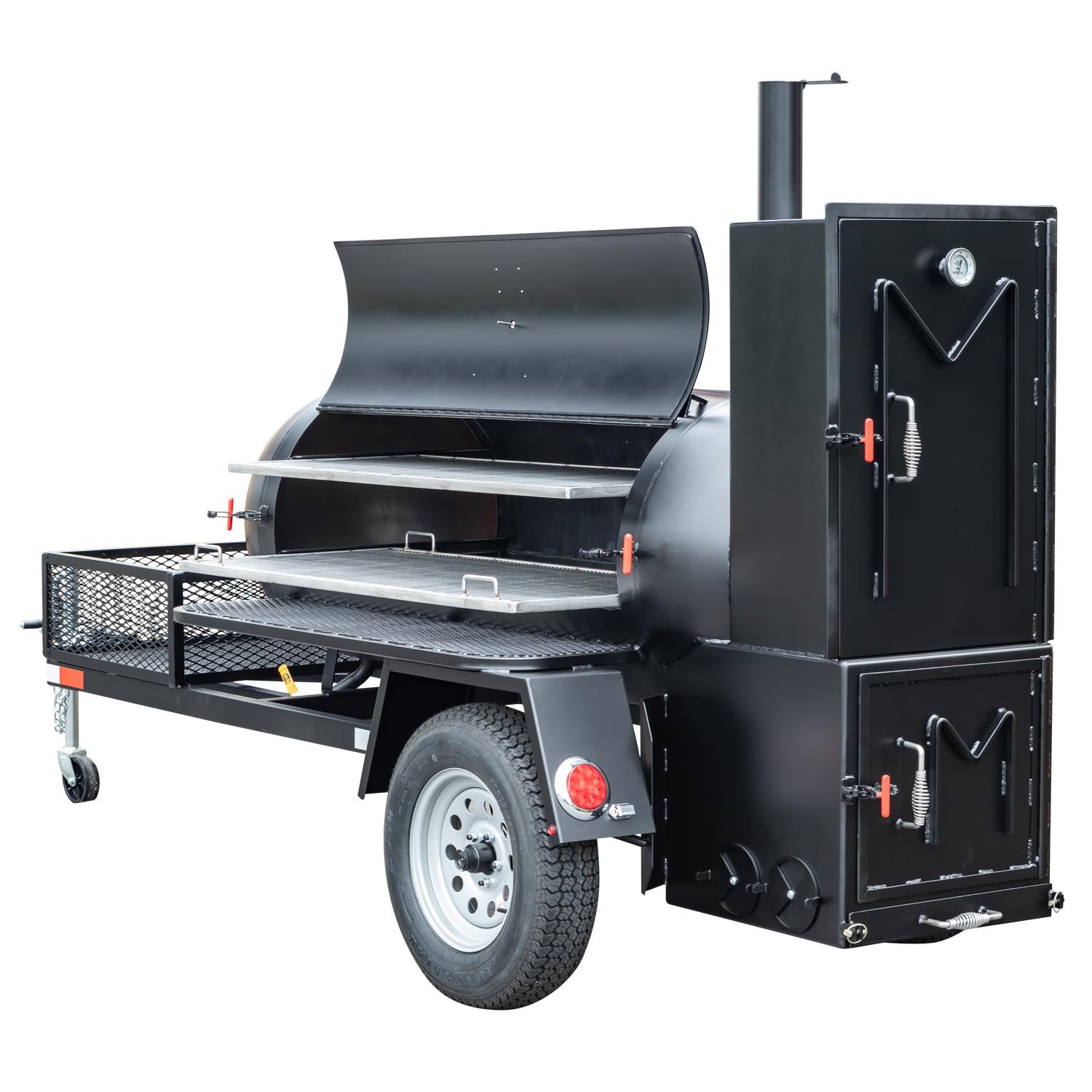

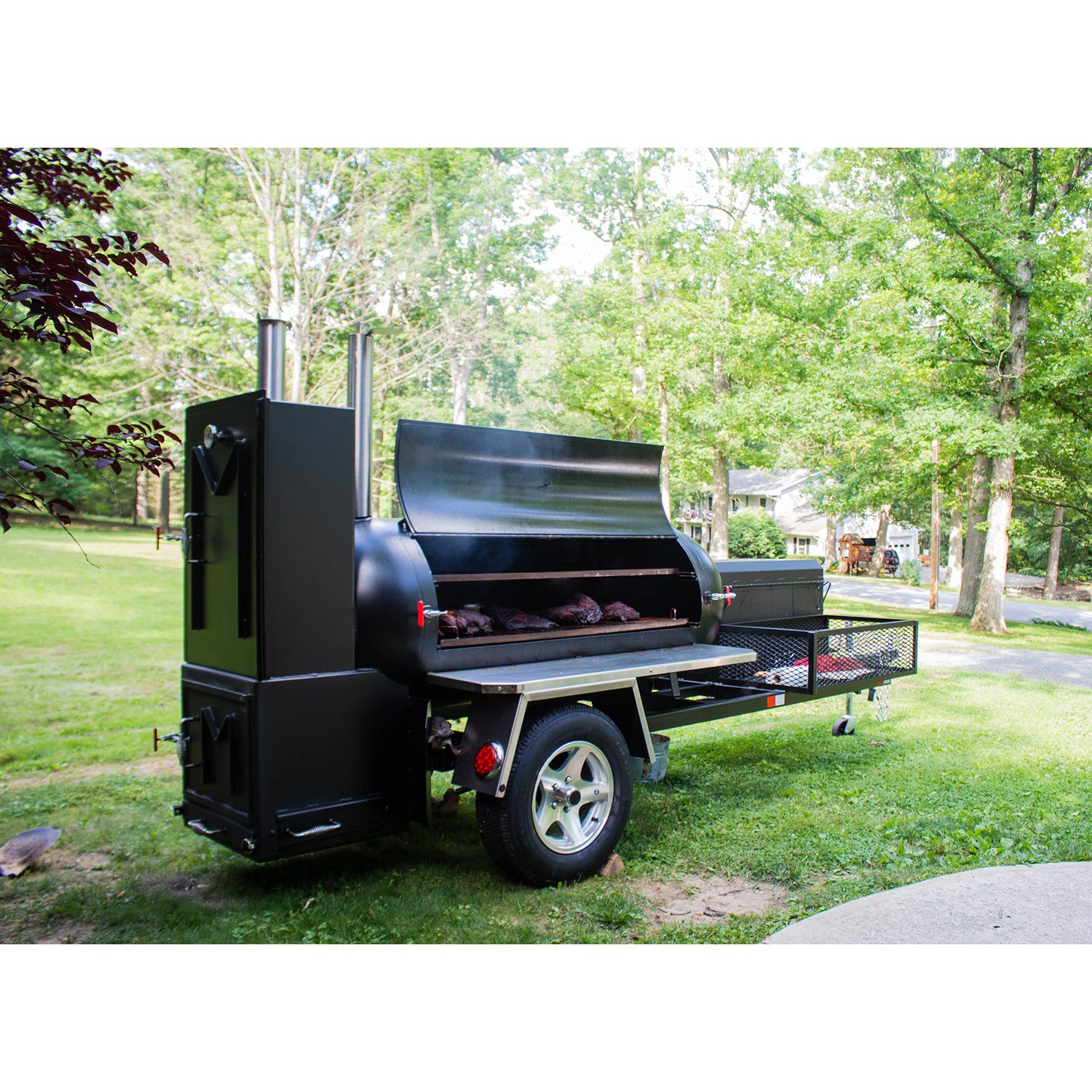

Barbecue purists know the best part of barbecue is low and slow smoking… low temperatures and slow cooking allow flavor to develop in a natural, delicious way. This high quality reverse flow offset smoker makes it a breeze to crank out excellent barbecue while giving you the experience of poking coals in an offset firebox.
As with all Meadow Creek equipment, the workmanship on the TS250 is outstanding—from the heavy duty doors and lids to the non-rusting food grade stainless steel grates and the rounding of otherwise sharp and unhandy corners. Everything is built to give you the best cooking experience possible on an offset smoker.

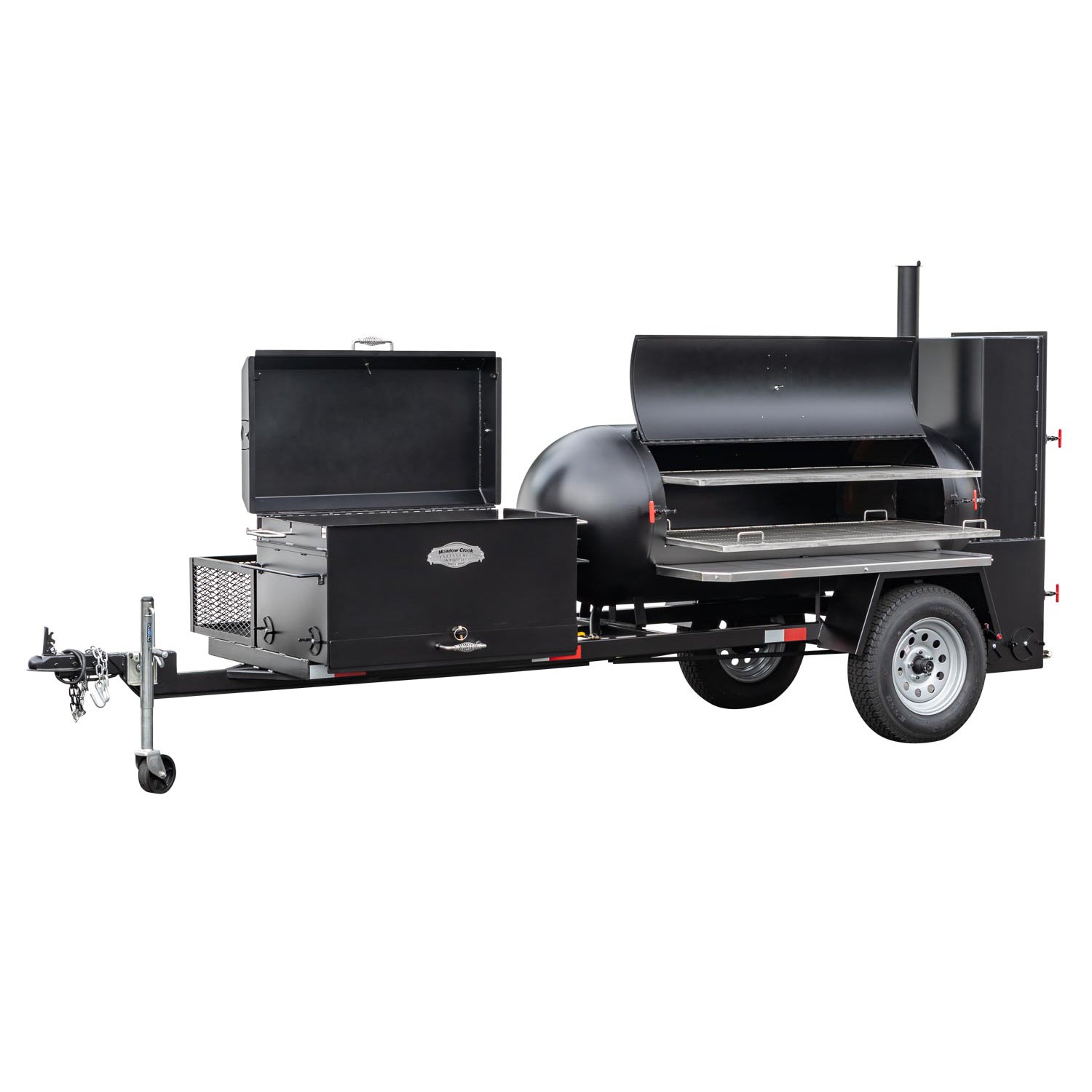

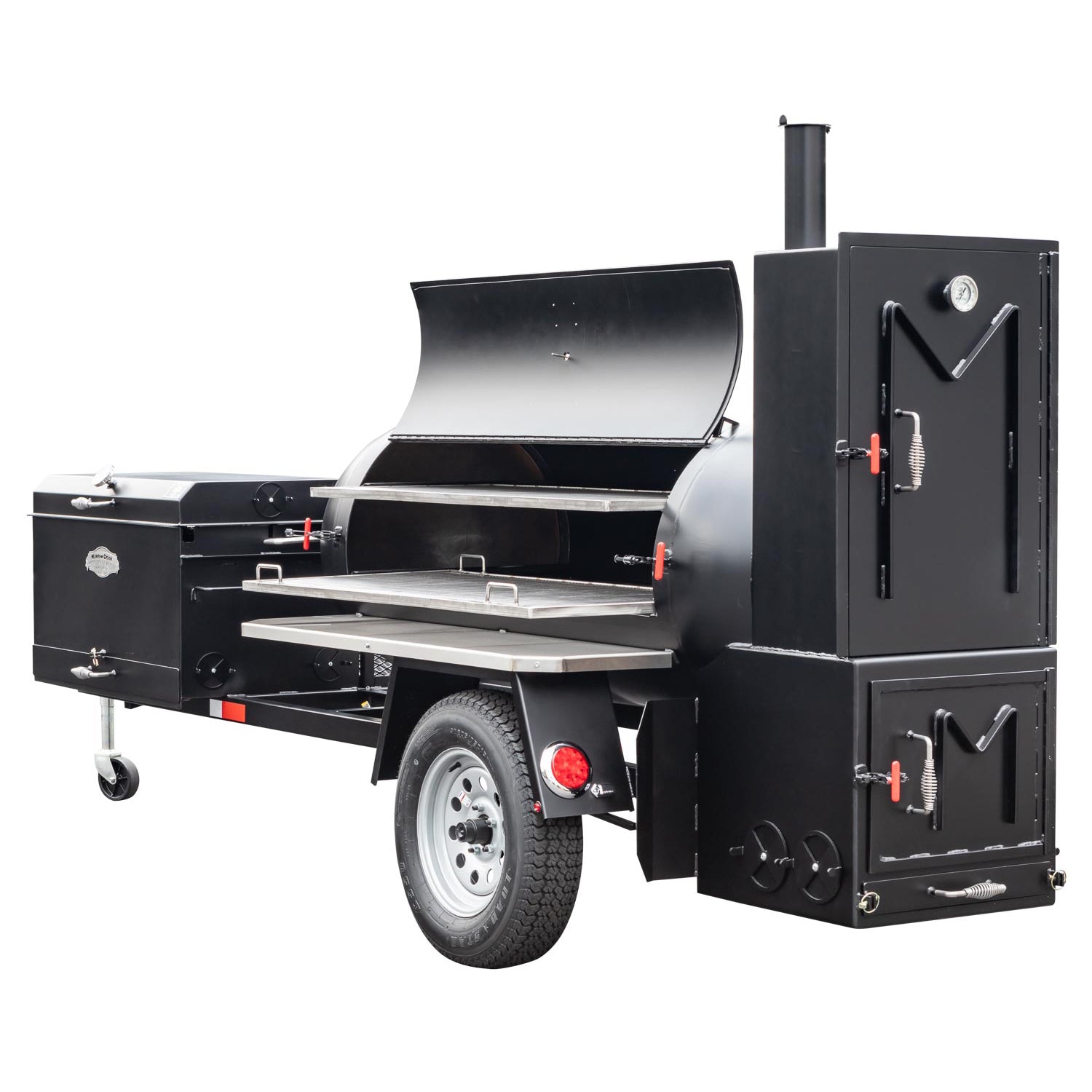

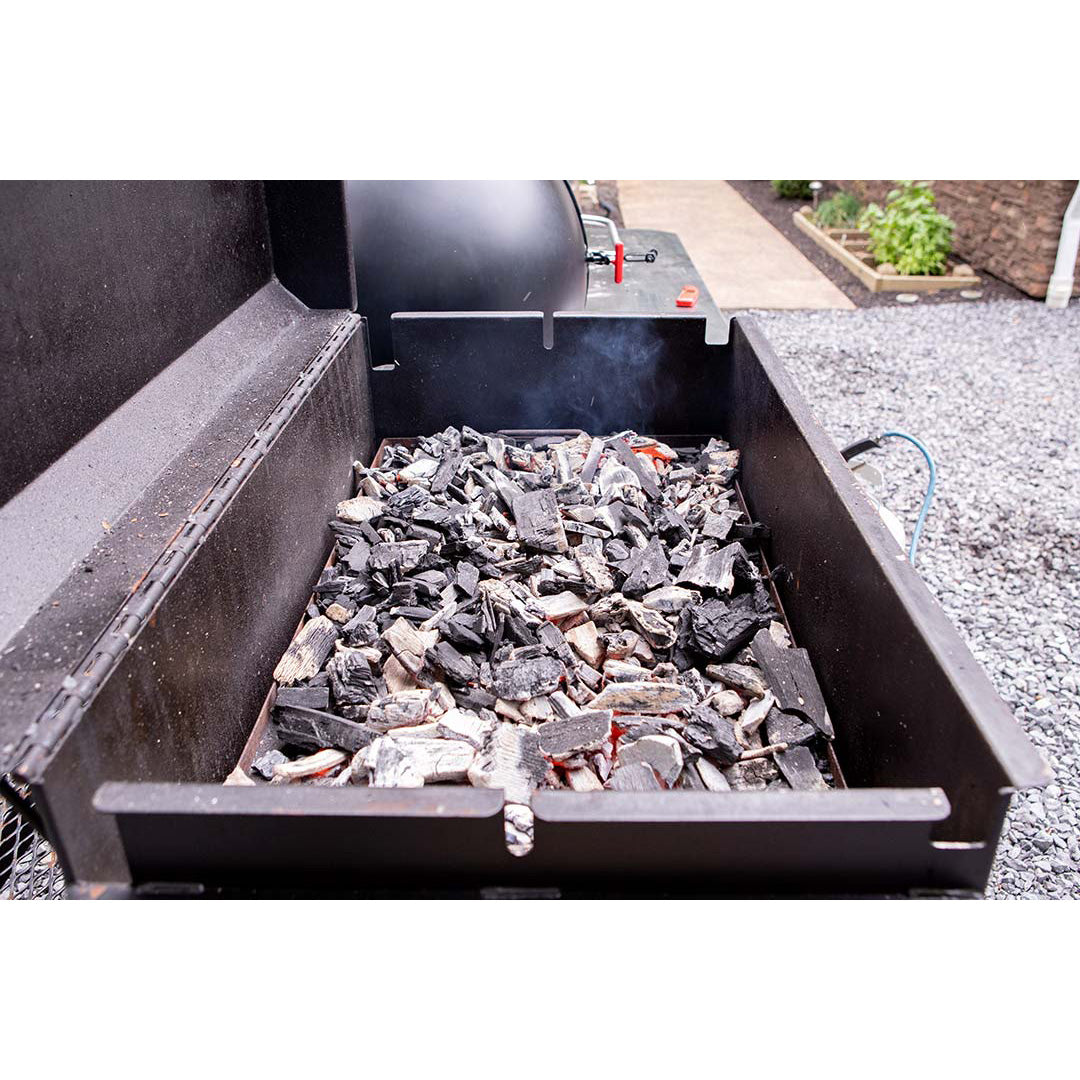

Deck it out with a chicken cooker grill, stainless steel work shelves, insulated firebox, and a trim package, and you’re ready to roll smoke and crank out amazing barbecue for your clients and friends in class!

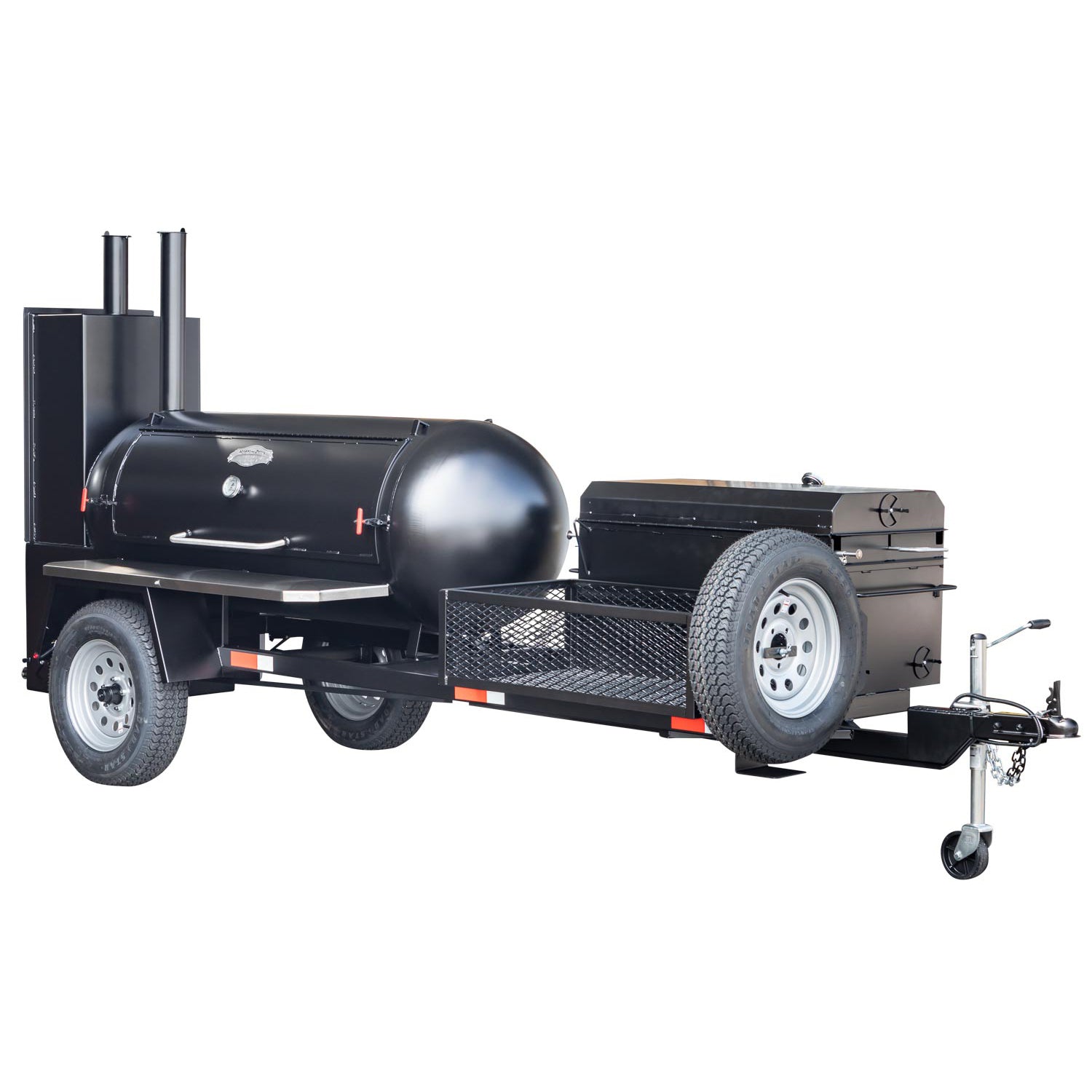

The TS250 BBQ Smoker is like the TS120 BBQ Smoker except it offers 17 square feet of cooking space instead of 11.
The TS250 is a fine option for mobile chefs and serious barbecue enthusiasts. Whether you are cooking for clients or friends and neighbors, this rig will help make your dream of cranking out delicious, mouth-watering barbecue a fun and fulfilling reality.
Features
- Reverse flow draft
- Wood box
- Positive-lock latches on all doors
- Grate in firebox with slide-out ash pan
- Drain with ball valve for draining the tank
- Stainless steel handles
- Stay cool handles, firebox door, and warming box door
- 2 exterior work shelves

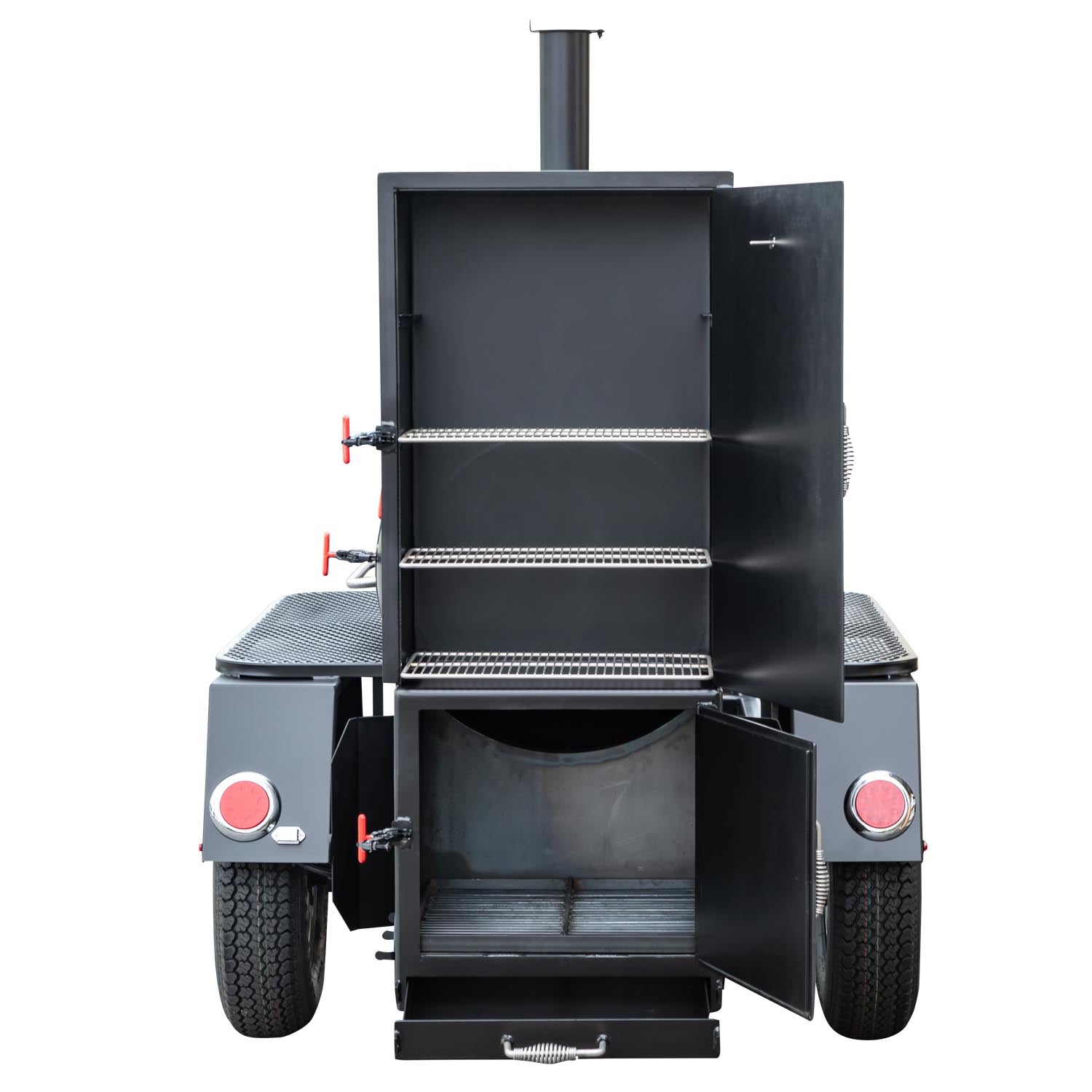

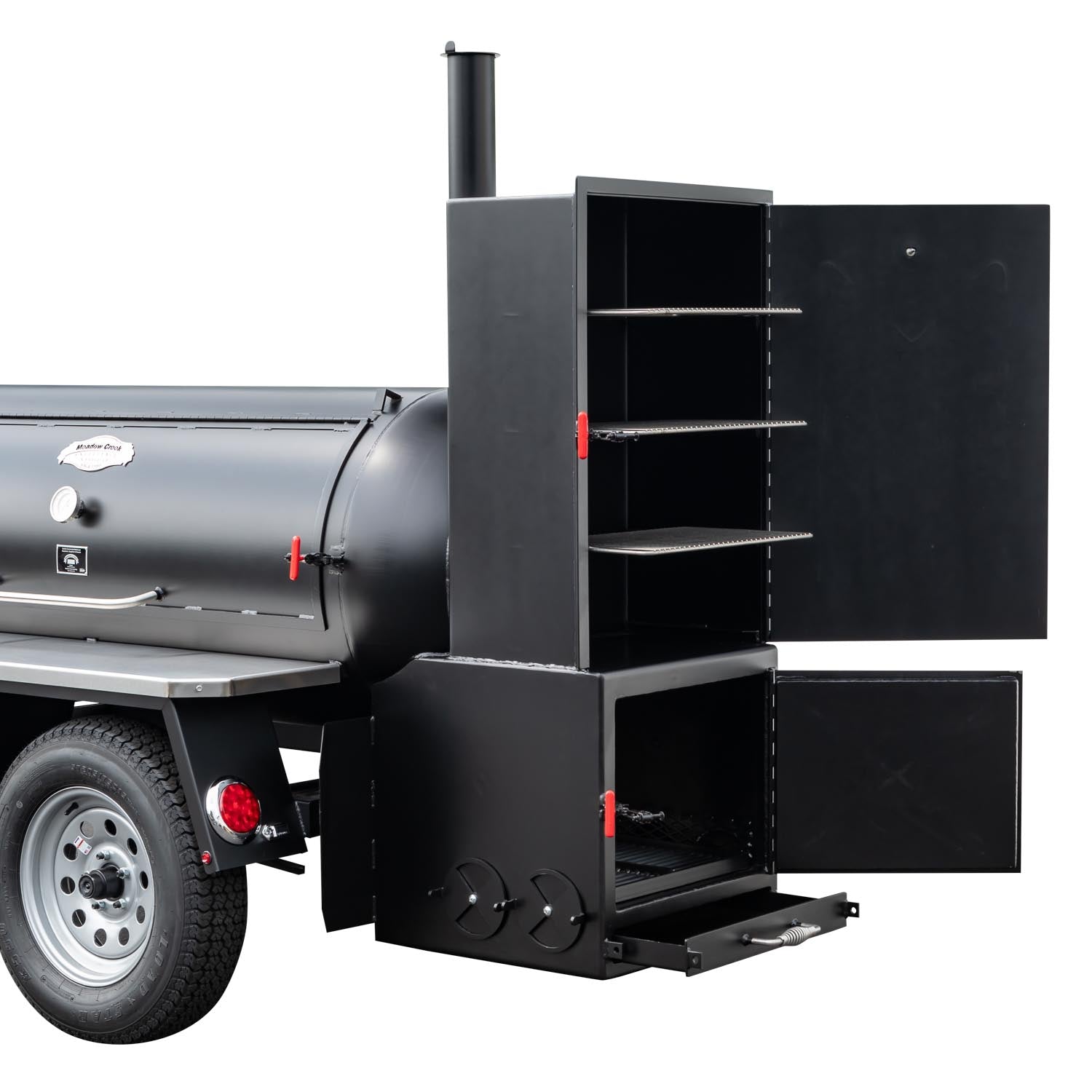

- Warming box with 3 shelves

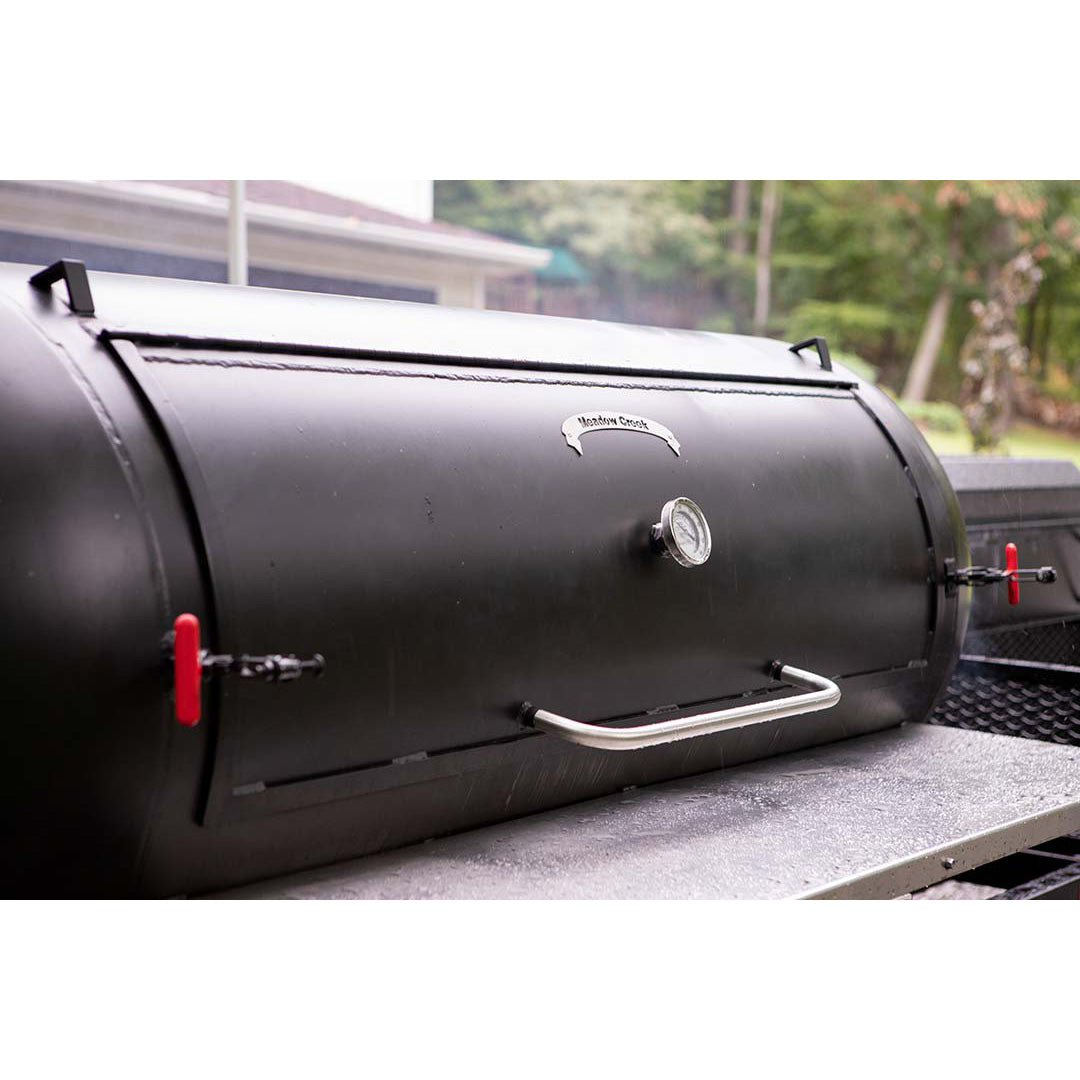

- Stainless steel calibratable thermometer on smoker and warming box doors
- Heat baffles on firebox protect the tires from excessive heat.

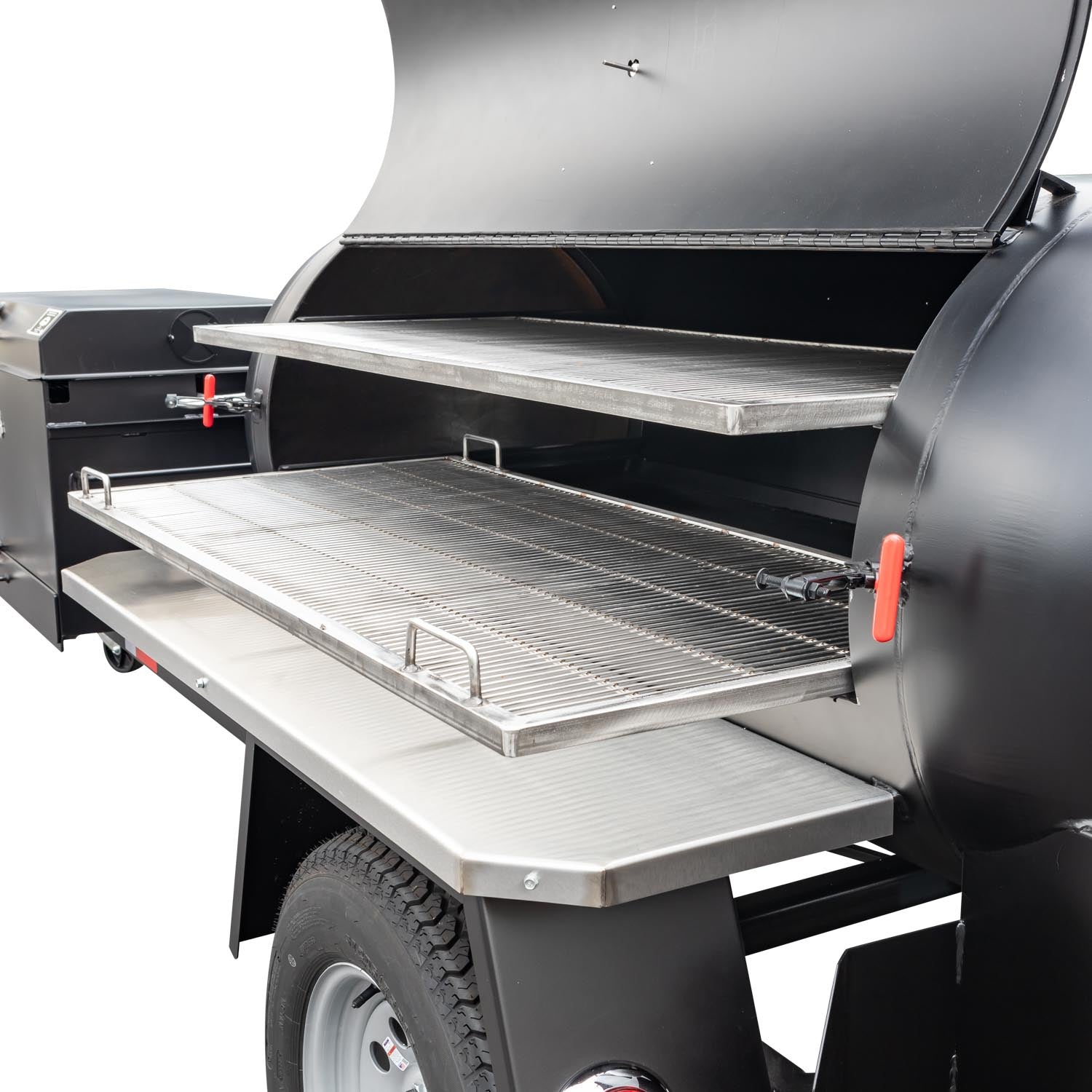

- Cooking grates are made of rust-free food-grade T304 stainless steel rod and easy to clean.
- Built in water pan helps keep your meat moist when water smoking with apple juice or other liquid.
- Tank is made of 3/16” plate steel and firebox of 1/4” plate steel and painted with black heat-resistant paint in an attractive matte finish.
- 2 exterior shelves
- Door on each side of smoker
- Trailer is built on a tubular frame and features a 2” ball hitch and safety chains, heavy-duty wheel jack, rubber torsion axle, road tires, and DOT-compliant flush-mount LED lights, reflector strips, and VIN plate.
- We are a licensed trailer manufacturer and can provide a certificate of origin the trailer.
Specifications
| Overall Dimensions | 83”h x 175.5”l x 58”w |
| Cooking Area | 20.34 sq. ft. (2,929 sq. in.) |

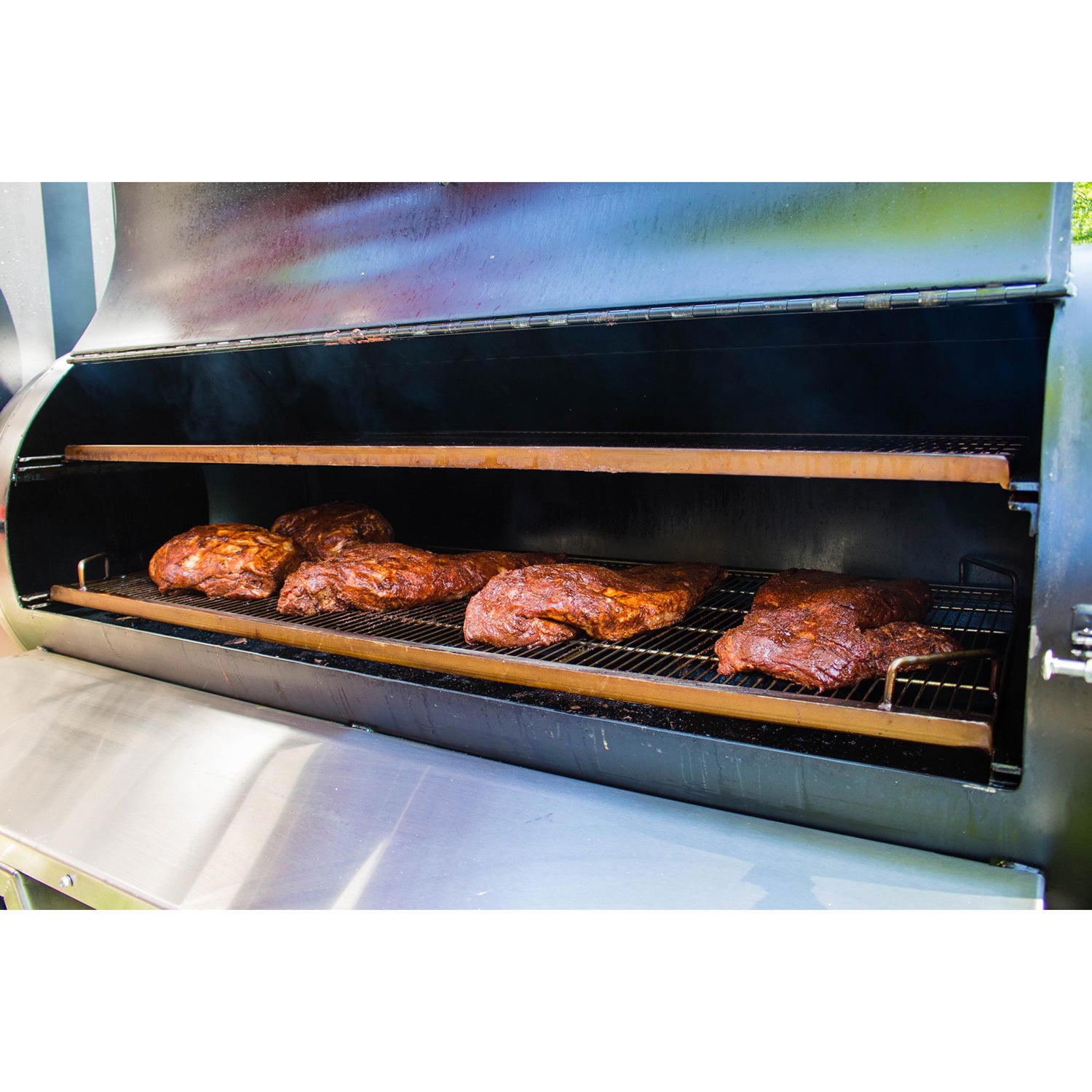

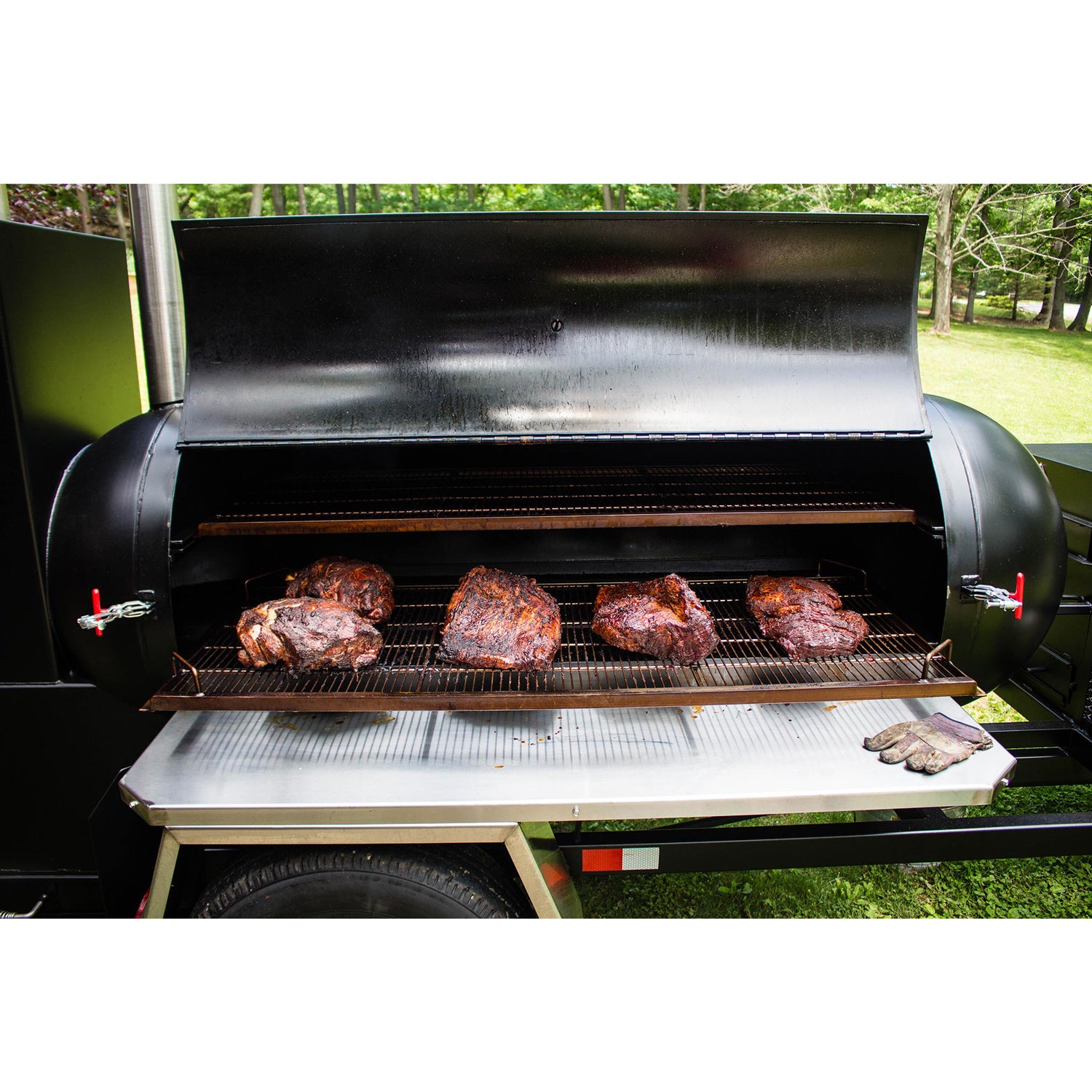

| Top Grate Dimensions | 24" x 58" |
| Space Above Top Grate | 5.5” |
| Bottom Grate Dimensions | 26.5" x 58" |
| Space Between Grates | 8.5” |
| Grate Style | Wire Grid With 1/2” Spacing |
| Tank Dimensions | 29.5” x 85” (250-gallon) |
| Metal Thickness on Tank | 0.1875” |
| Fire Box Dimensions | 24.5” Cube (Inside: 24” x 24” x 19”) |
| Metal Thickness on Fire Box | 0.25” |
| Warming Box Dimensions | 13.5” x 22.5” (Inside) |
| Warming Box Grate Dimensions | 13.5” x 22.5” |
| Space Between Grates in Warming Box | 8.5” |
| Axle Rating | 3,000 lbs. |
| Net Weight | 1,630 lbs. |
| Shipping Weight | 1,950 lbs. (if skidding is required) |

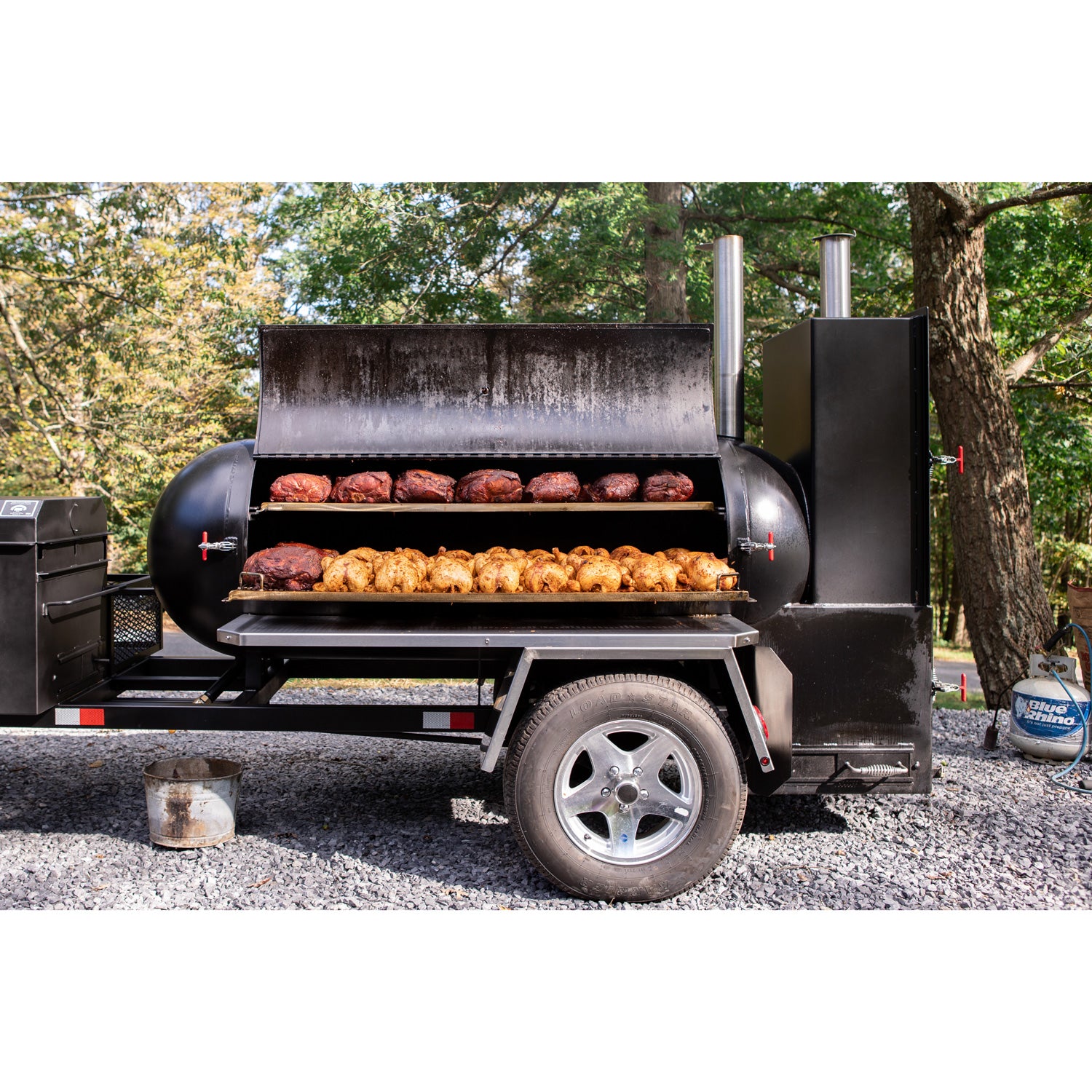

| Capacity of Pork Butts | 31-32 |
| Capacity of Baby Back Ribs | 26-34 |
| Capacity of Spare Ribs | 18-22 |
| Capacity of Whole Briskets | 19-22 |
| Capacity of Whole Chickens | 45-47 |
| Capacity of Whole Pigs | 200 lbs. |
Gas Assist Add On
The Taste of Wood: The Convenience of Gas
Do you love traditional wood and charcoal smokers, but wish you could “cheat” once in a while? How would you like to throw away your weed burner and preheat your smoker with the flip of a switch? Or start an all-night cook and go to sleep, knowing your temp will stay rock-solid even after the coals burn down?
Meadow Creek’s revolutionary gas-assist option turns a TS or BX smoker into a shape-shifting jack-of-all-trades. Driven by a powerful Wayne burner, it can preheat your smoker, light your wood or charcoal, and lock in your pit temp within 5 degrees of your set point.
It’s like having two pits in one. Smoke the traditional way with just coals and wood, cook on gas alone, or perfect your favorite hybrid approach for the best of both worlds. You’ve never smoked like this before.
Features
- Weatherproof housing
- Electronic thermostat with digital readout
- Connects to 110-volt power with a regular extension cord
- Low-pressure gas regulator and gas quick attach
- Connects to a regular LP gas grill tank
- Maintains consistent temperature automatically
Videos
Lead Time & Shipping
Meadow Creek products are made to order, with an estimated 2–4 week lead time.
All Meadow Creek products ship via freight. Shipping is calculated using flat-rate tiers based on product weight. Large trailers require a custom freight quote — we’ll contact you with the rate before finalizing your order.
About Meadow Creek
Meadow Creek hand-builds custom barbecue pits, smokers, and roasters designed to make outdoor cooking fun, easy, and reliable—so whenever the crowd craves real food, the pit is ready to deliver. Since 1980, Meadow Creek equipment has earned a loyal following from backyard enthusiasts to award-winning chefs, all drawn to the performance, durability, and craftsmanship that define every product.
Born from a small Pennsylvania farm welding shop, Meadow Creek has grown into a trusted name in American barbecue, built on integrity, community, and old-fashioned hard work. More than forty years later, the Stoltzfus family still carries forward that tradition—crafting professional-grade equipment that helps pitmasters skip the drama, focus on what matters, and share unforgettable barbecue with family, friends, and customers. Proudly made in the USA.
Documentation Download
Meadow Creek Buyer Guide
Meadow Creek Product Catalog
Meadow Creek Products Specifications Sheet
Return and Refund Policy
All Meadow Creek products are custom-made to order and are non-refundable.
