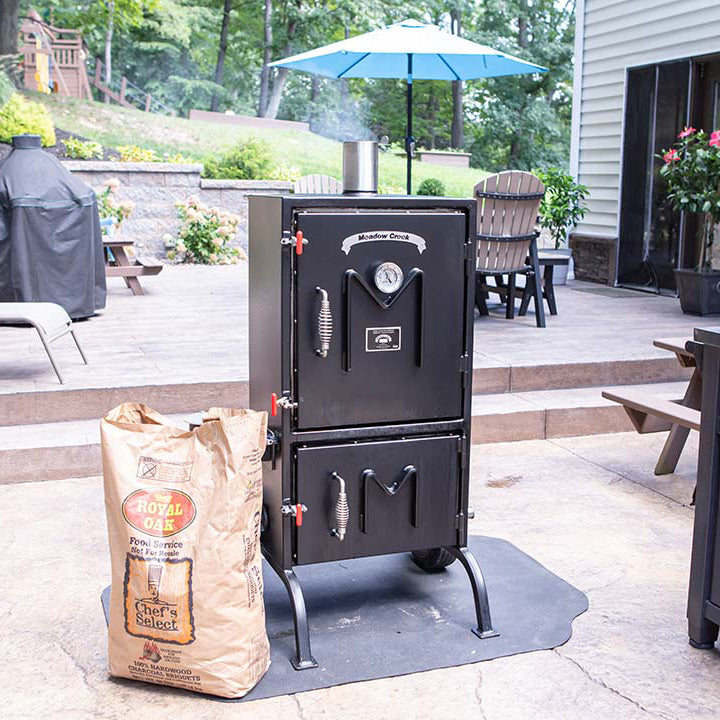

Meadow Creek BX25 Cabinet (Box) Smoker
Optional add-ons shown in photos are not included and are sold separately.
FREIGHT QUOTE REQUIRED: Due to their size and weight, all Meadow Creek products require a custom freight quote. Place your order, and we’ll provide you with the best available shipping rate for your approval before finalizing your purchase. If the quote doesn’t meet your expectations, we’ll cancel your order and issue a full refund.
Delivery & What to Expect
- All products are custom made to order, typically taking 2–4 weeks to produce, plus 7–10 business days for shipping.
- Ships via custom freight: We’ll contact you with a shipping rate for your review and approval before completing your order.
- Freight items may require delivery appointment scheduling.
- Tracking is provided for all orders.
- Typical delivery window: 7–10 business days after shipment.
Questions about freight, lead times, or delivery? Contact us before ordering — we’re happy to help.
Warranty
Return & Refund
Documentation Downloads

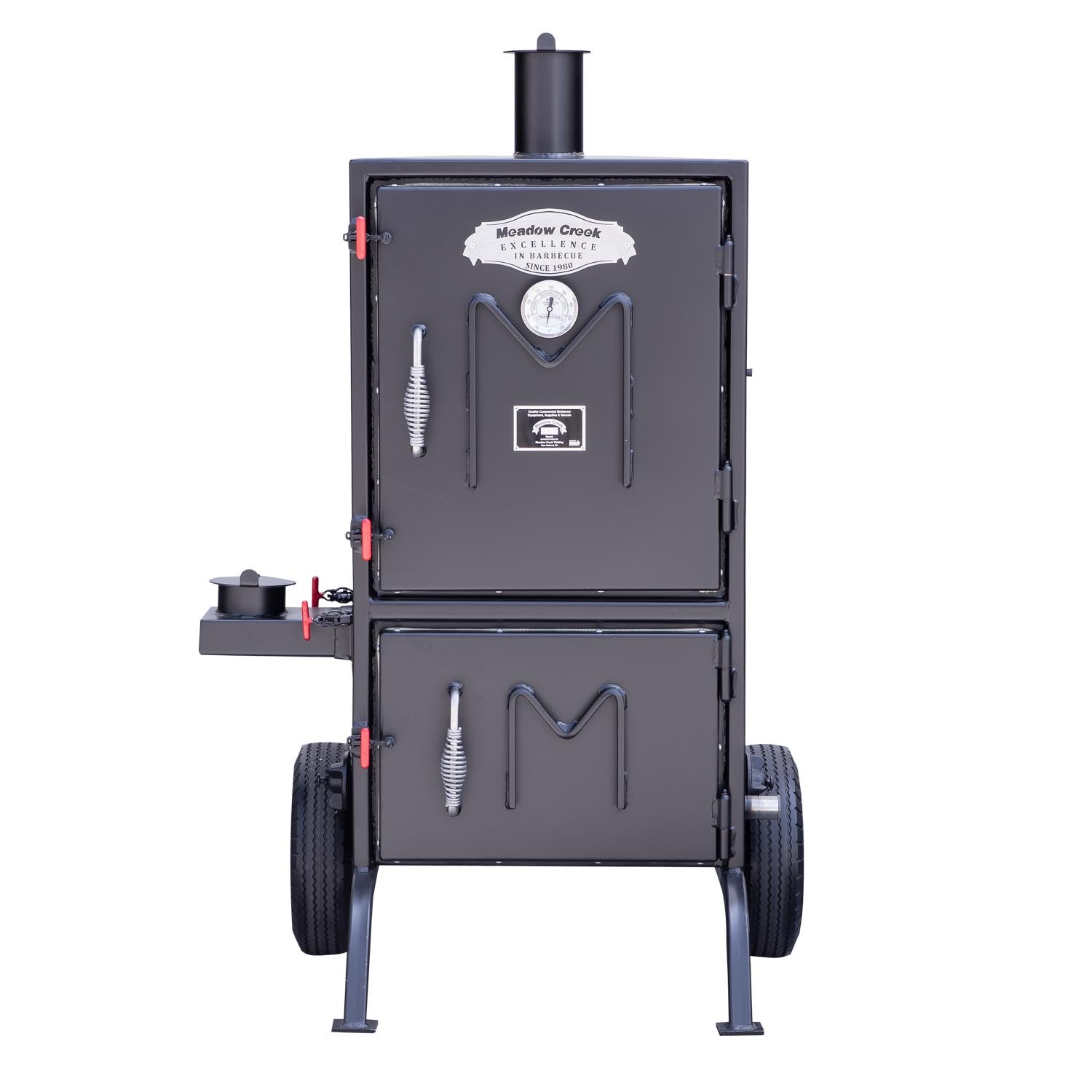

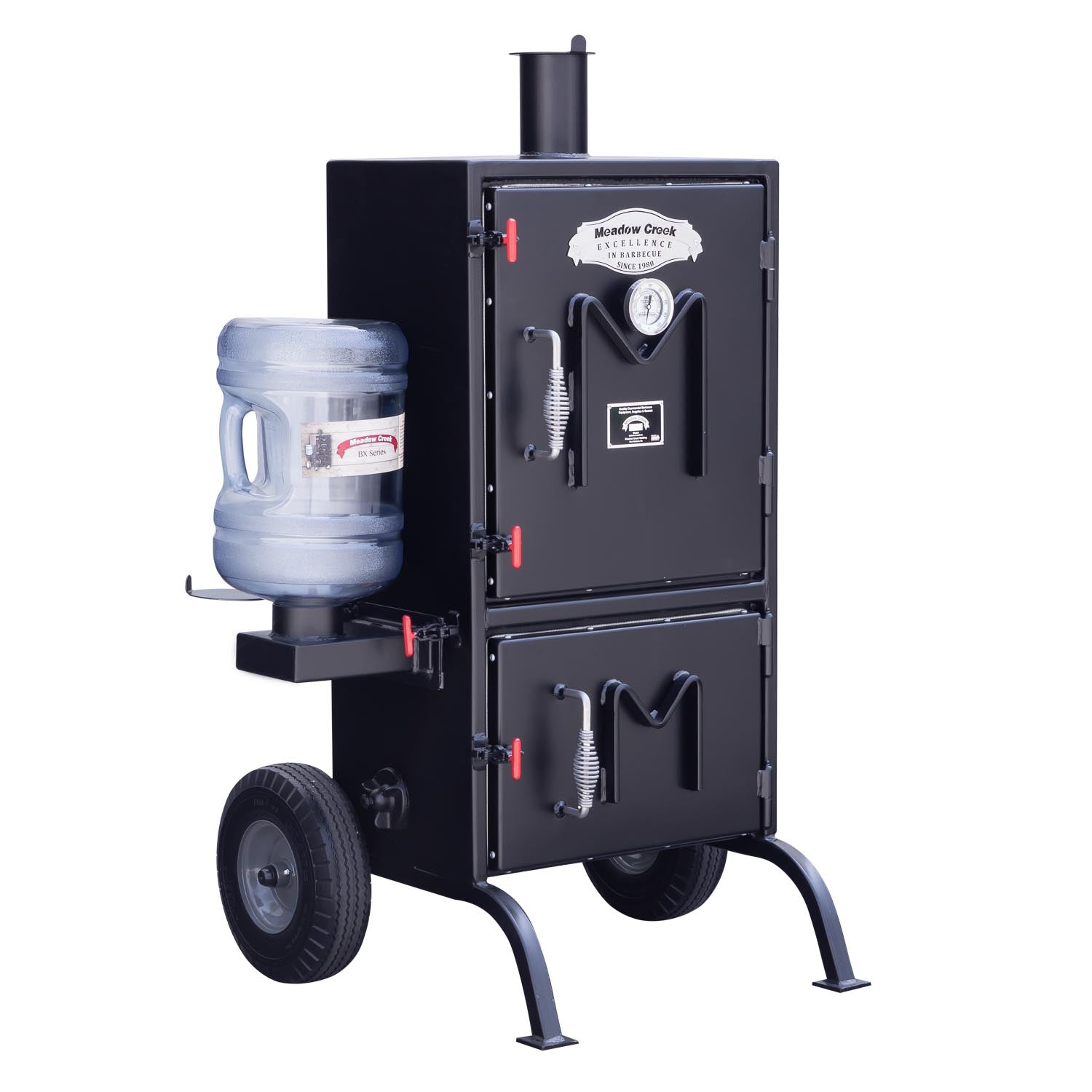

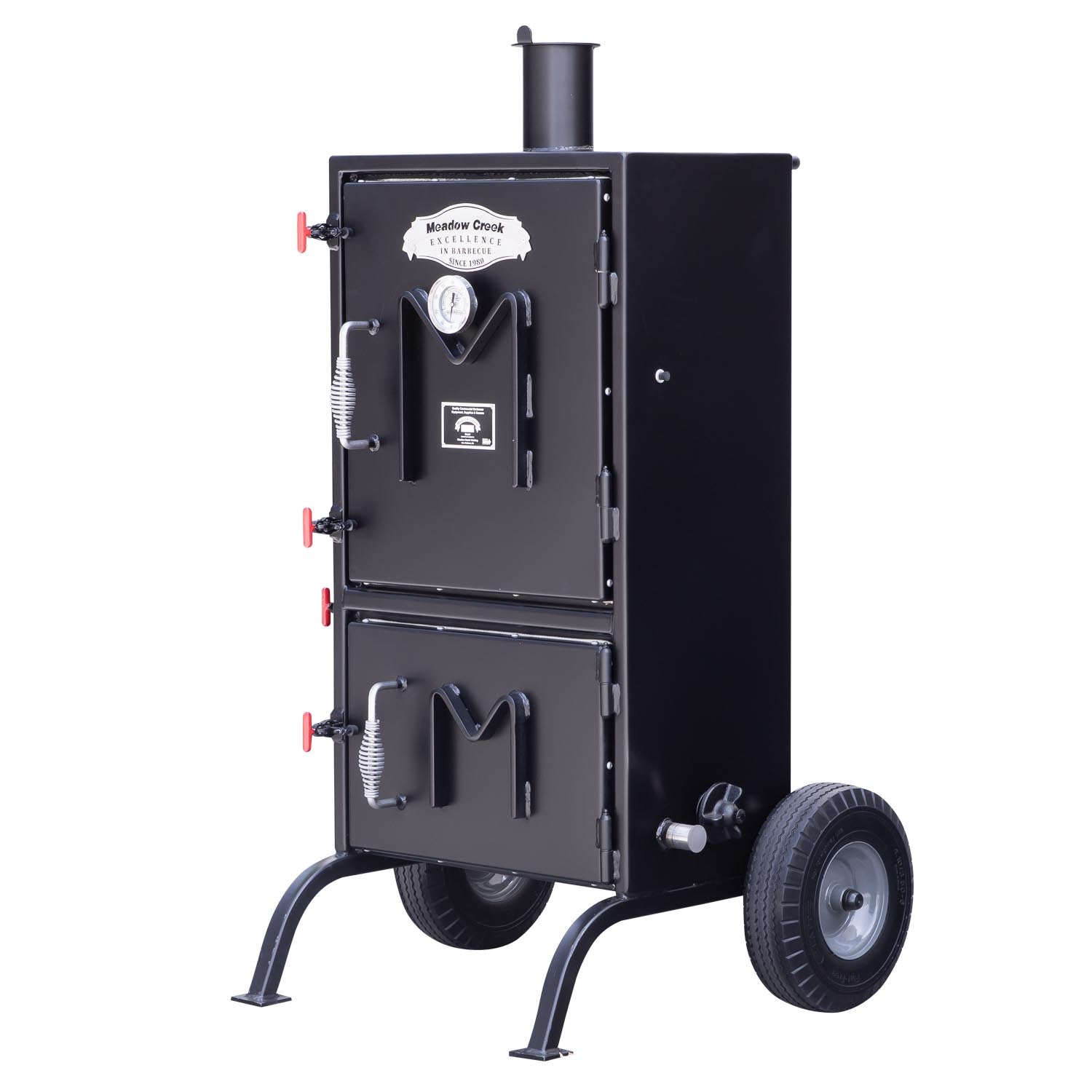

Meadow Creek entered the cabinet smoker market with the development of the several years ago. Now the BX25 Box Smoker offers the same advantages in a smaller size. If you liked the BX50 but thought it’s too heavy or too big for your use, you’ll love the BX25. It weighs 300 pounds less (about half as heavy) and holds half pans instead of full pans.

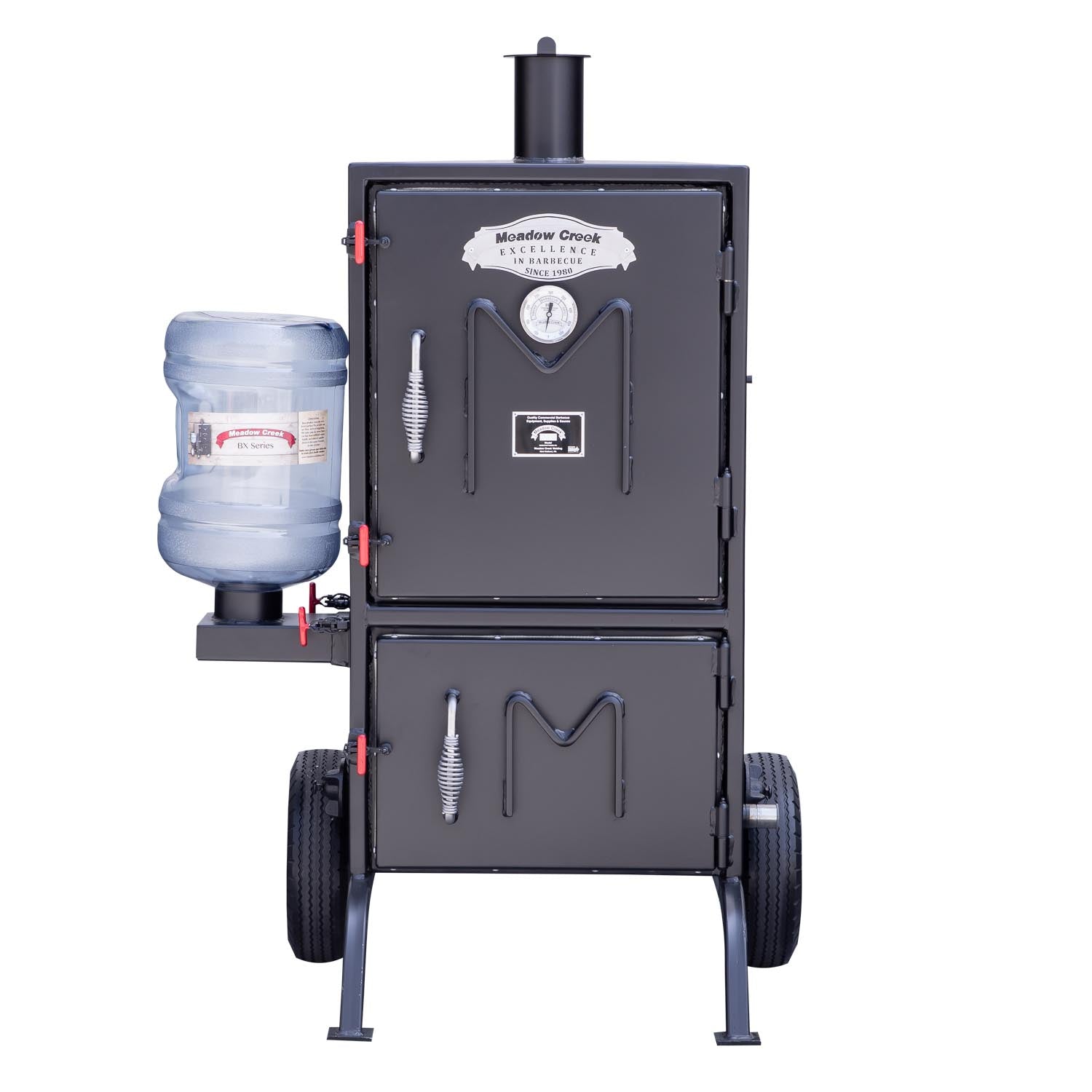

The Meadow Creek BX25 comes with an auto-feed water system and a 5-gallon water jug for hassle-free water smoking just like that in the BX50. It does an excellent job with or without water, unlike some cabinet smokers on the market, such as the famous Backwoods Competitor. This makes it possible to smoke jerky or anything you want to smoke dry (without the use of water).
If you’re looking for a backyard or competition smoker that is compact, easy to use, and fuel efficient—and of course built “Meadow Creek strong”—the BX25 Box Smoker is an excellent choice.
Features
- Double walls with 1" insulation

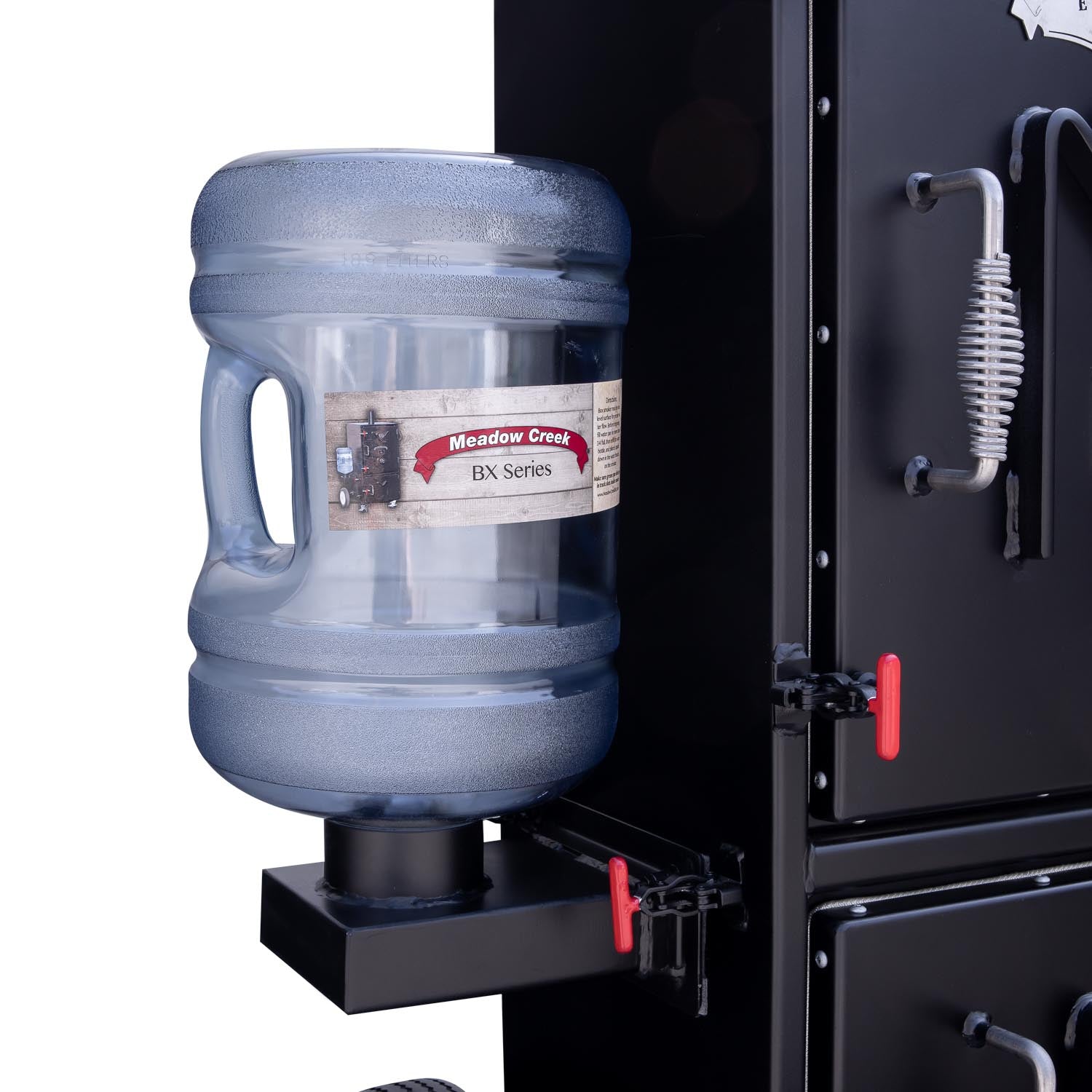

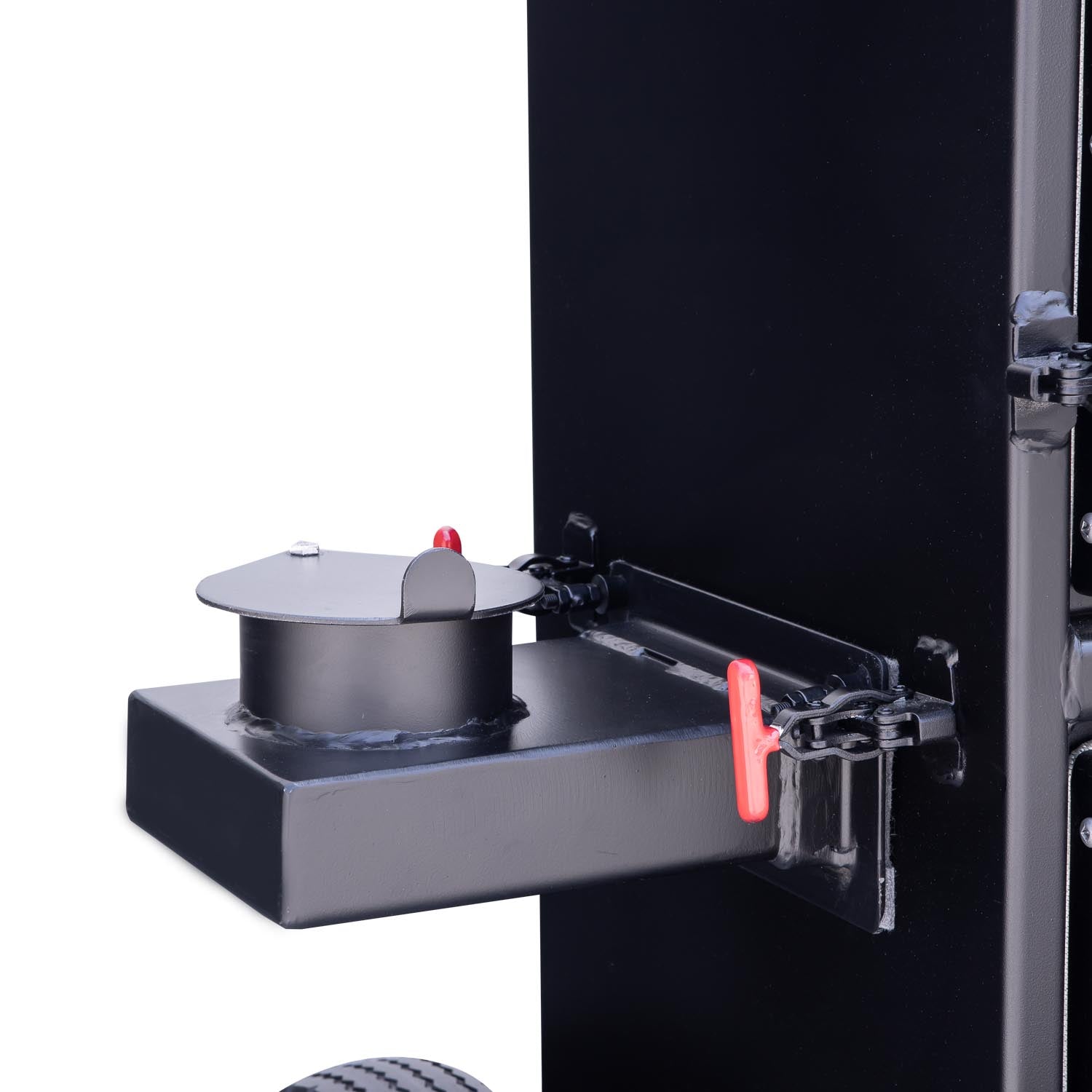

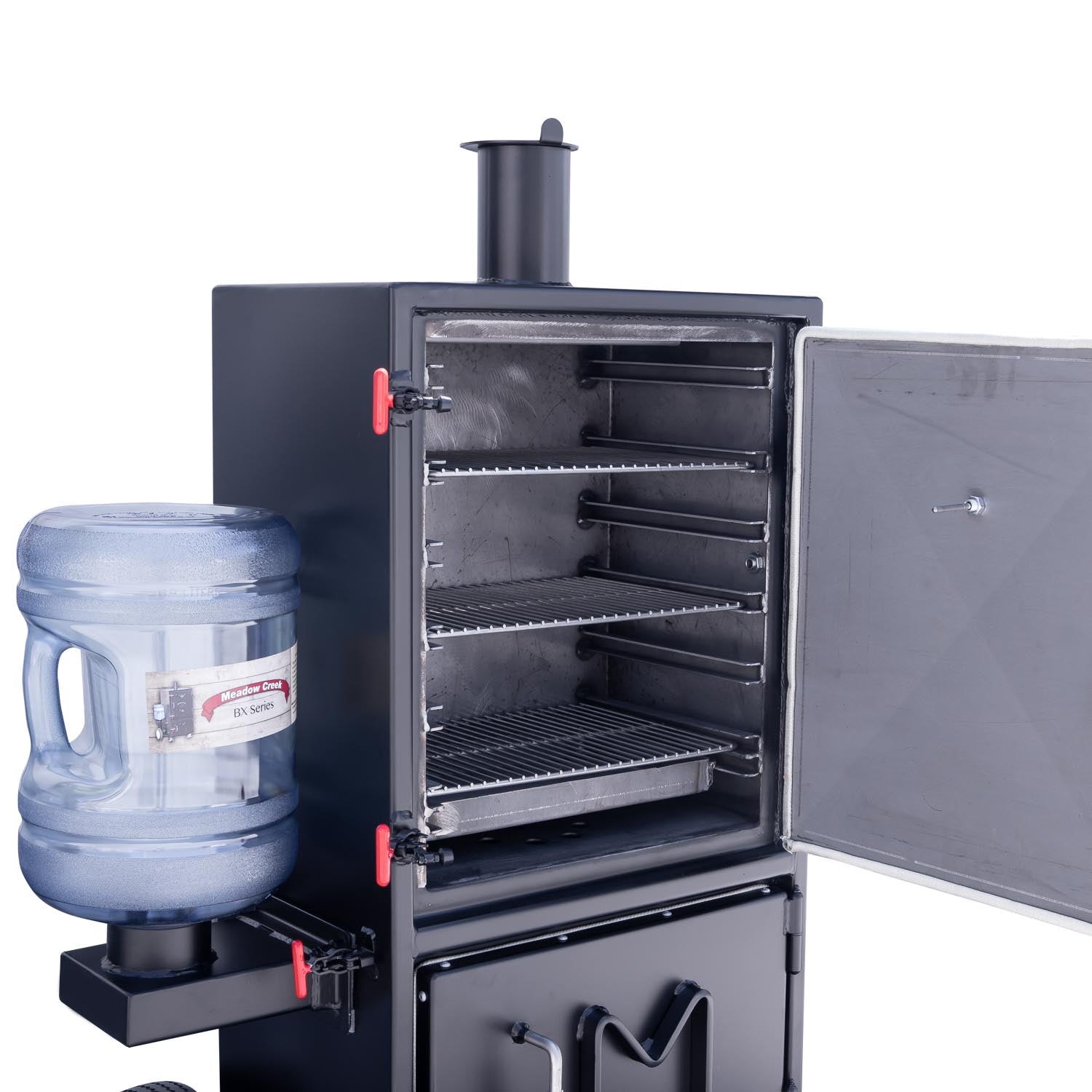

- Auto-feed water system and a 5-gallon water jug
- Removable water pan
- Built for wet and dry smoking

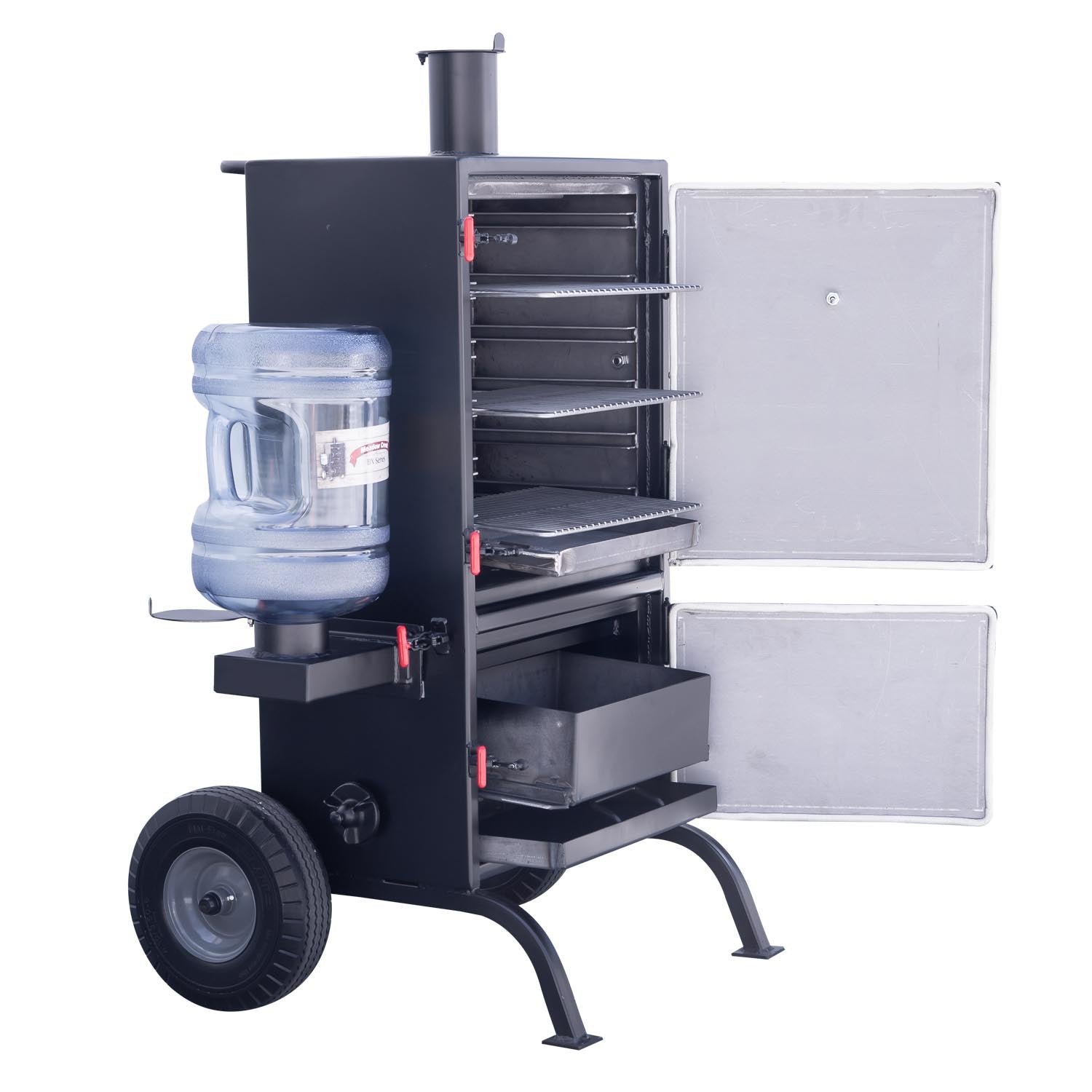

- Slide-out cooking grates made of rust-free food-grade T304 stainless steel rod
- Adjustable grate configuration (There are 5 slots total, with the option of adding two more grates.)
- Painted with black heat-resistant paint in an attractive matte finish

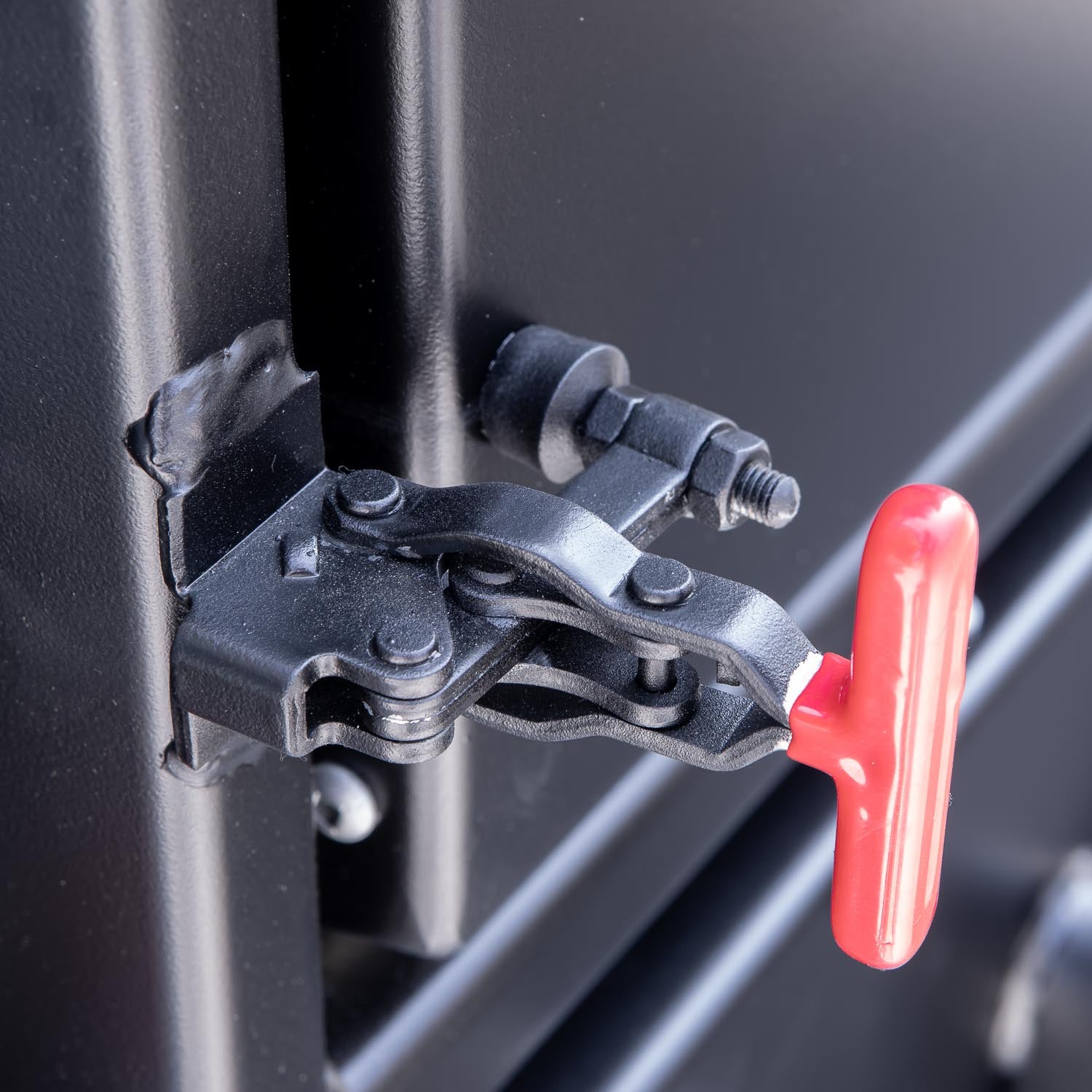

- Positive-lock latches on all doors

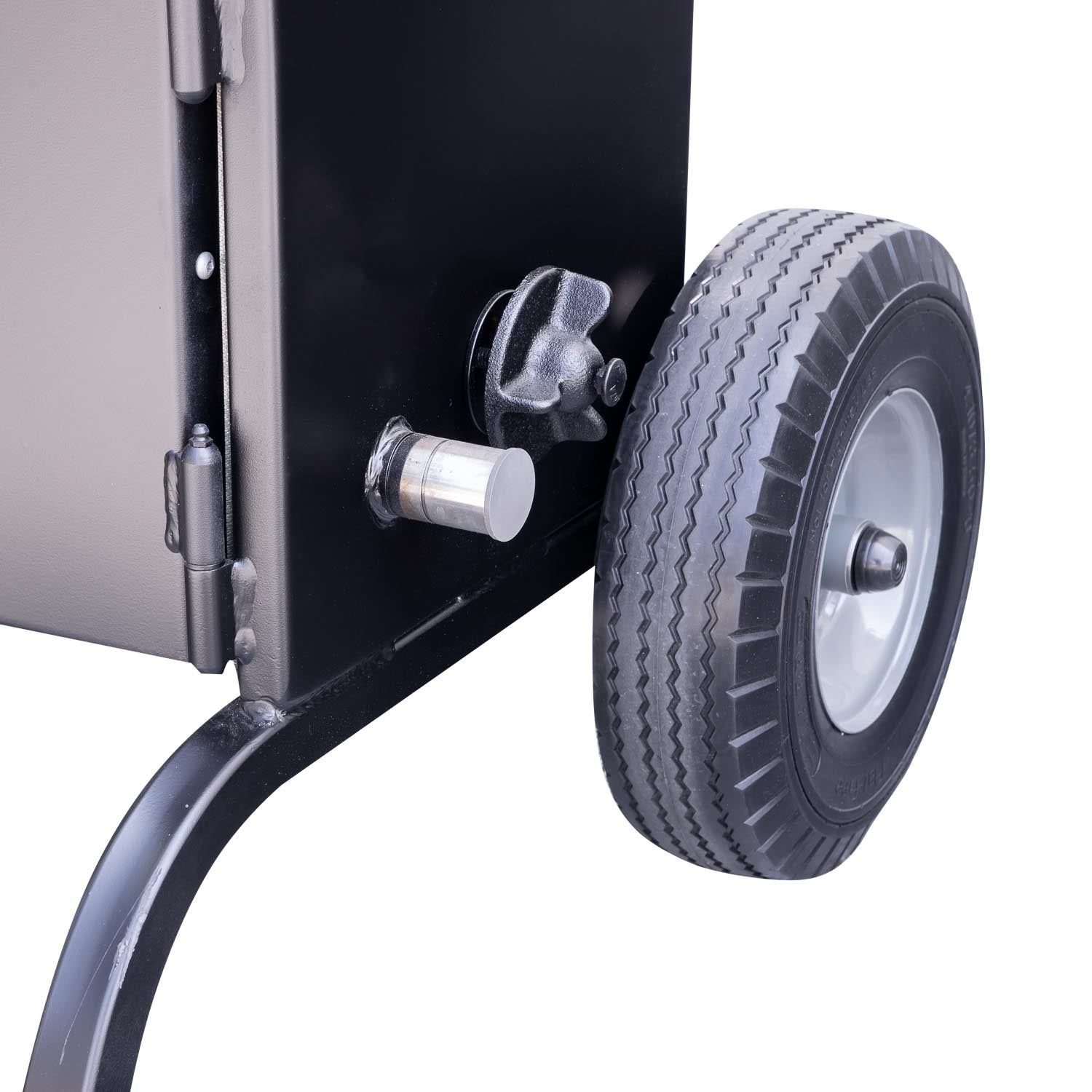

- Built-in Guru adapter for temp controller mounting

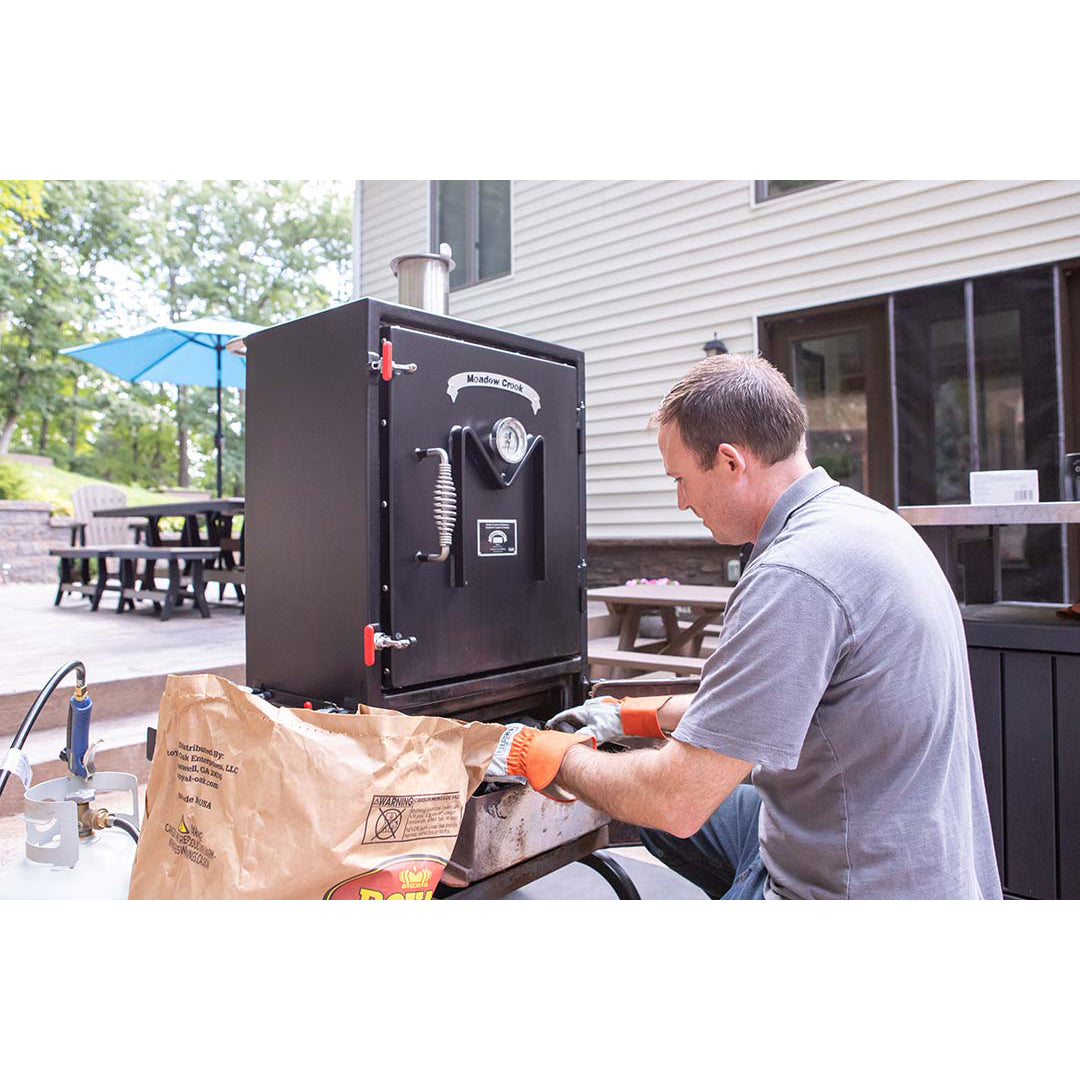

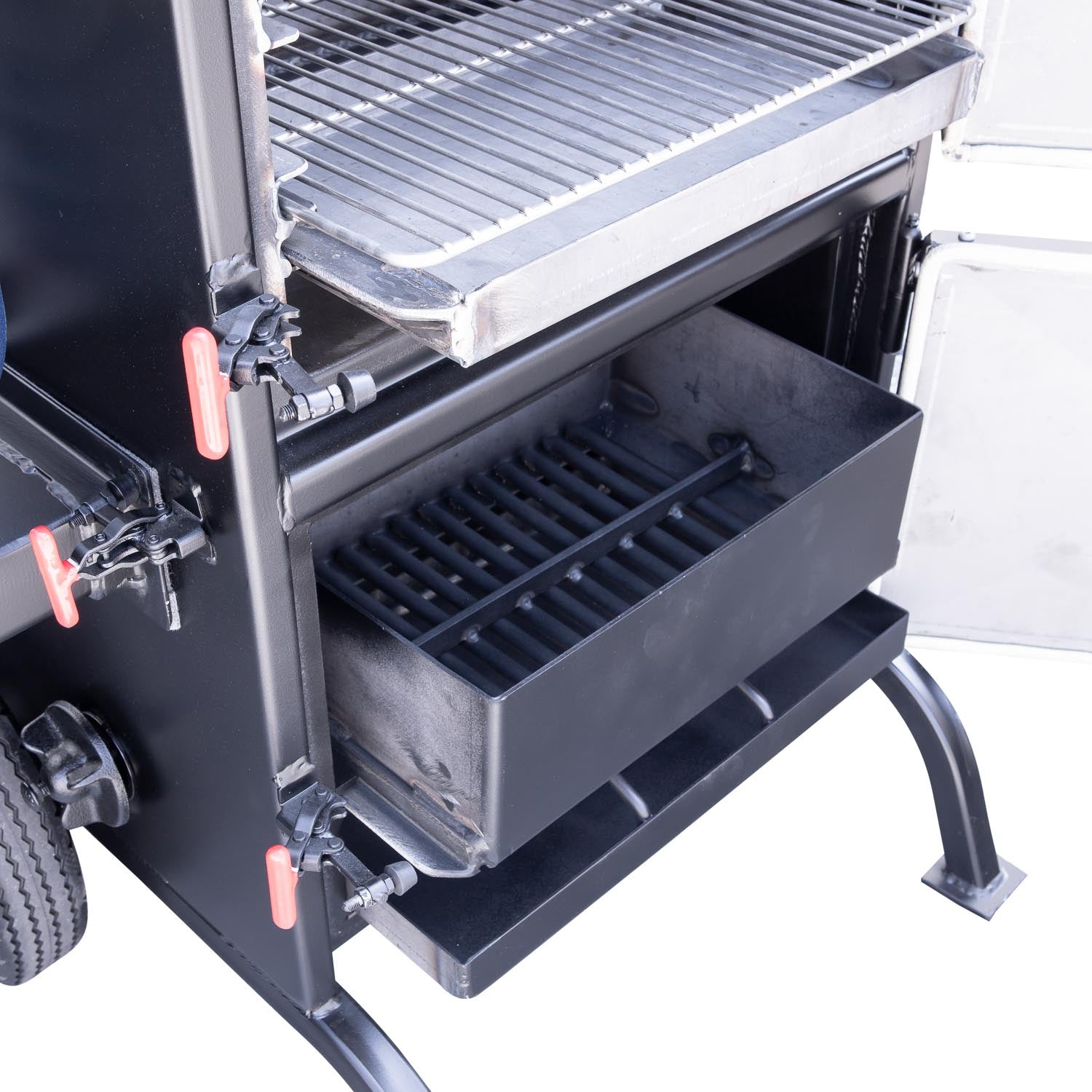

- Slide-out charcoal basket with a grate for the ashes to fall through
- Rolls on 2 solid urethane tires and rests on two stabilizer legs
- Stainless steel handles

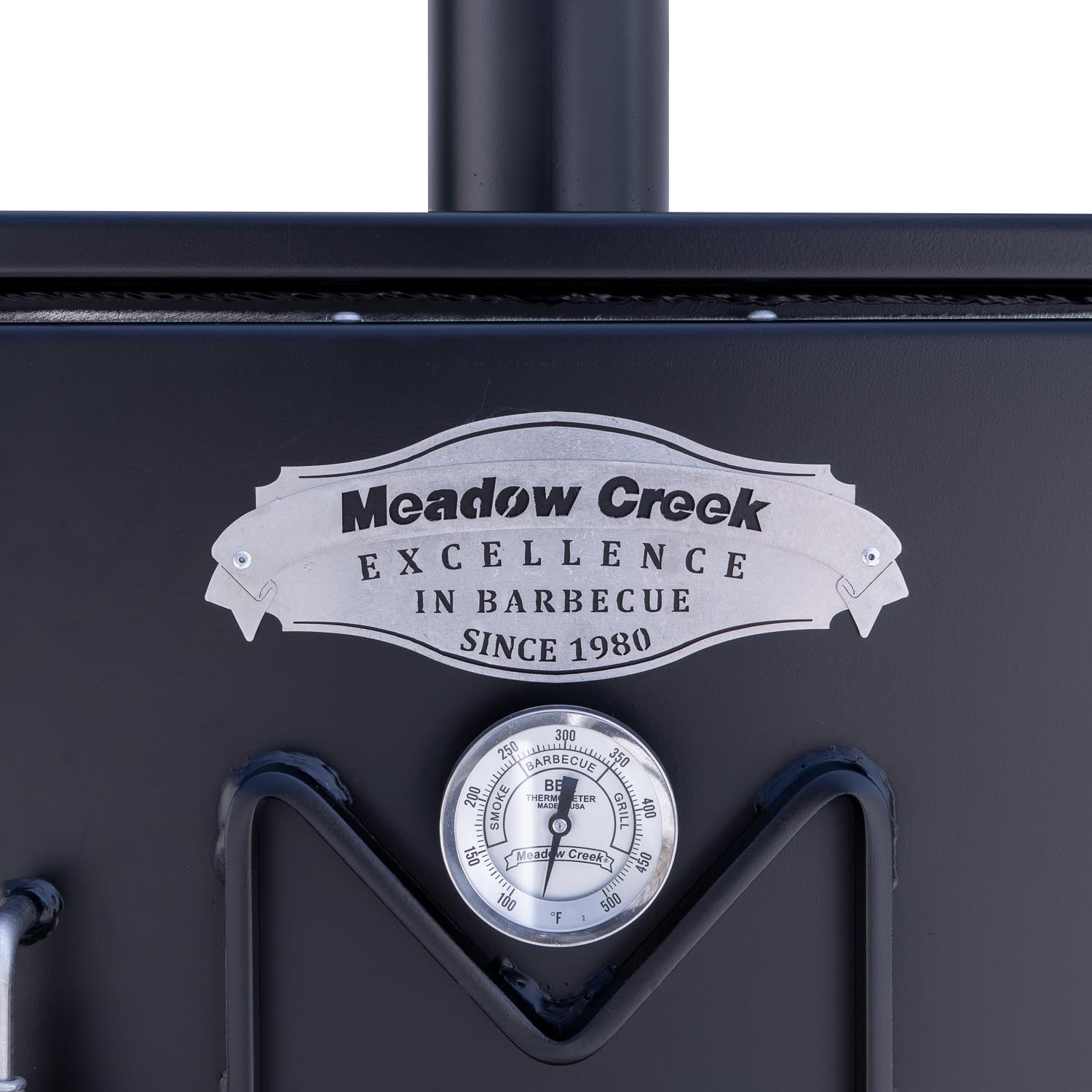

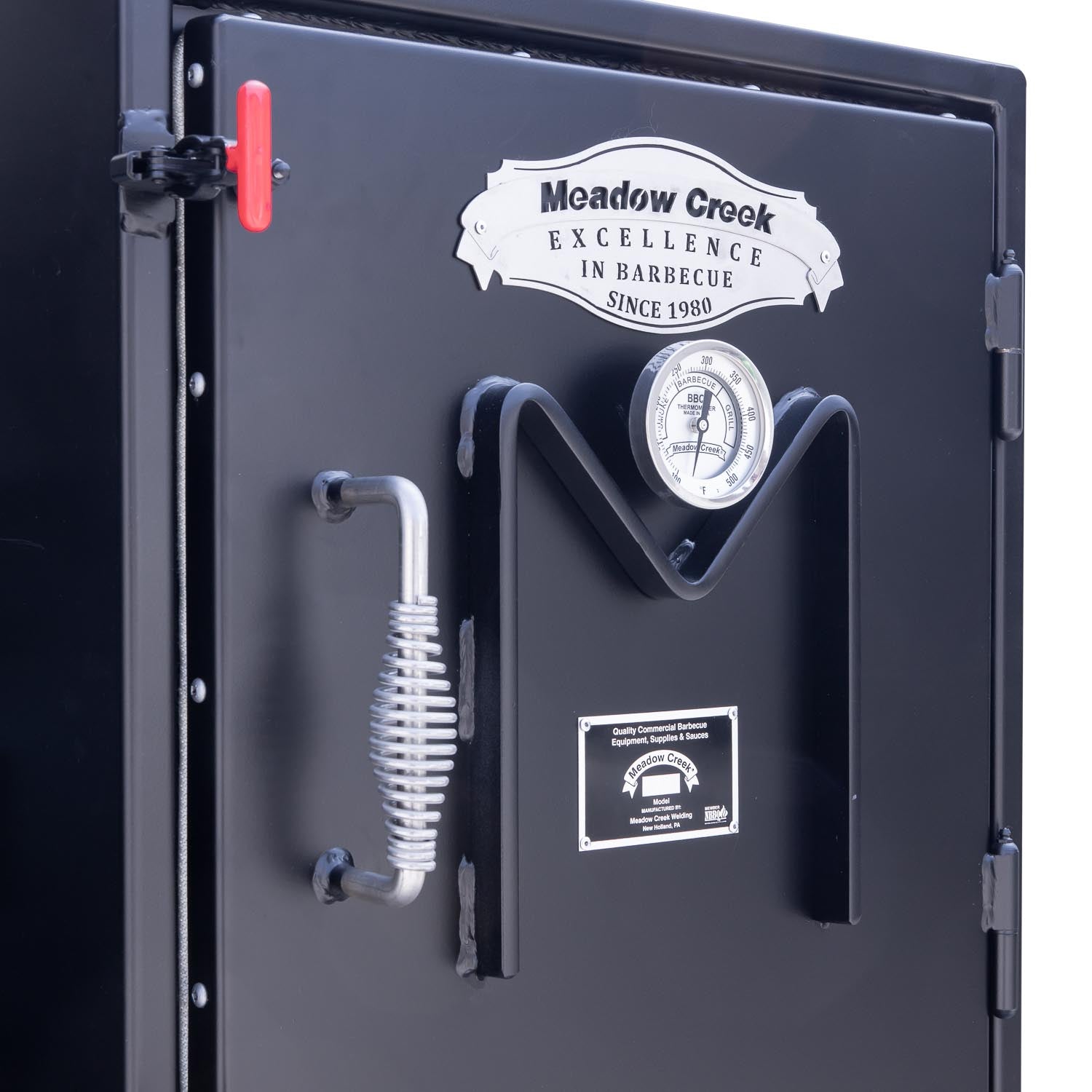

- Stainless steel calibratable thermometer
- Cast iron spin vents at the bottom of the firebox for precise draft control

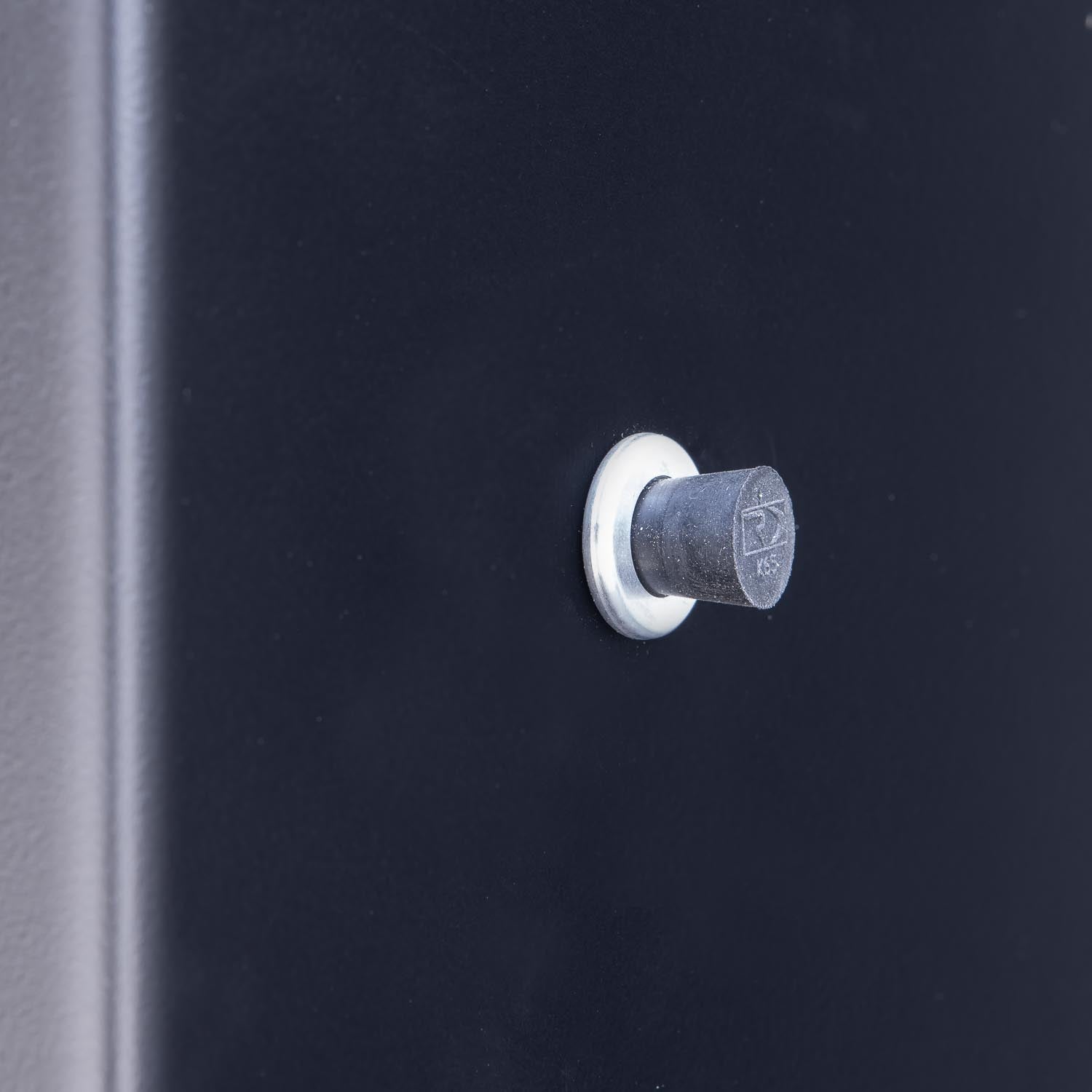

- Probe port with plug
- Uncoated steel interior
Specifications
| Overall Dimensions | 55"H x 36"W x 30"D |
| Smoking Chamber Dimensions | 22"H x 20"W x 12"D |
| Cooking Area | 4.19 sq. ft. (604 sq. in.) |
| Grate Dimensions | 11.5" x 17.5" |
| Grate Style | Wire Grid With 1/2" Spacing |
| Number of Grates | 3 |
| Fire Basket Dimensions | 5"H x 11"W x 15"L |
| Net Weight | 325 lbs. |
| Shipping Weight | 425 lbs. |
| Insulation Thickness | 1" |
| Metal Thickness | 14 Gauge |
| Capacity of Pork Butts | 6 |
| Capacity of Baby Back Ribs | 6 |
| Capacity of Spare Ribs | 3 |
| Capacity of St. Louis Ribs | 6 |
| Capacity of Whole Briskets | 3 |
| Capacity of Brisket Flats | 3-6 |
| Capacity of Chicken Halves | 12 |
