General Information

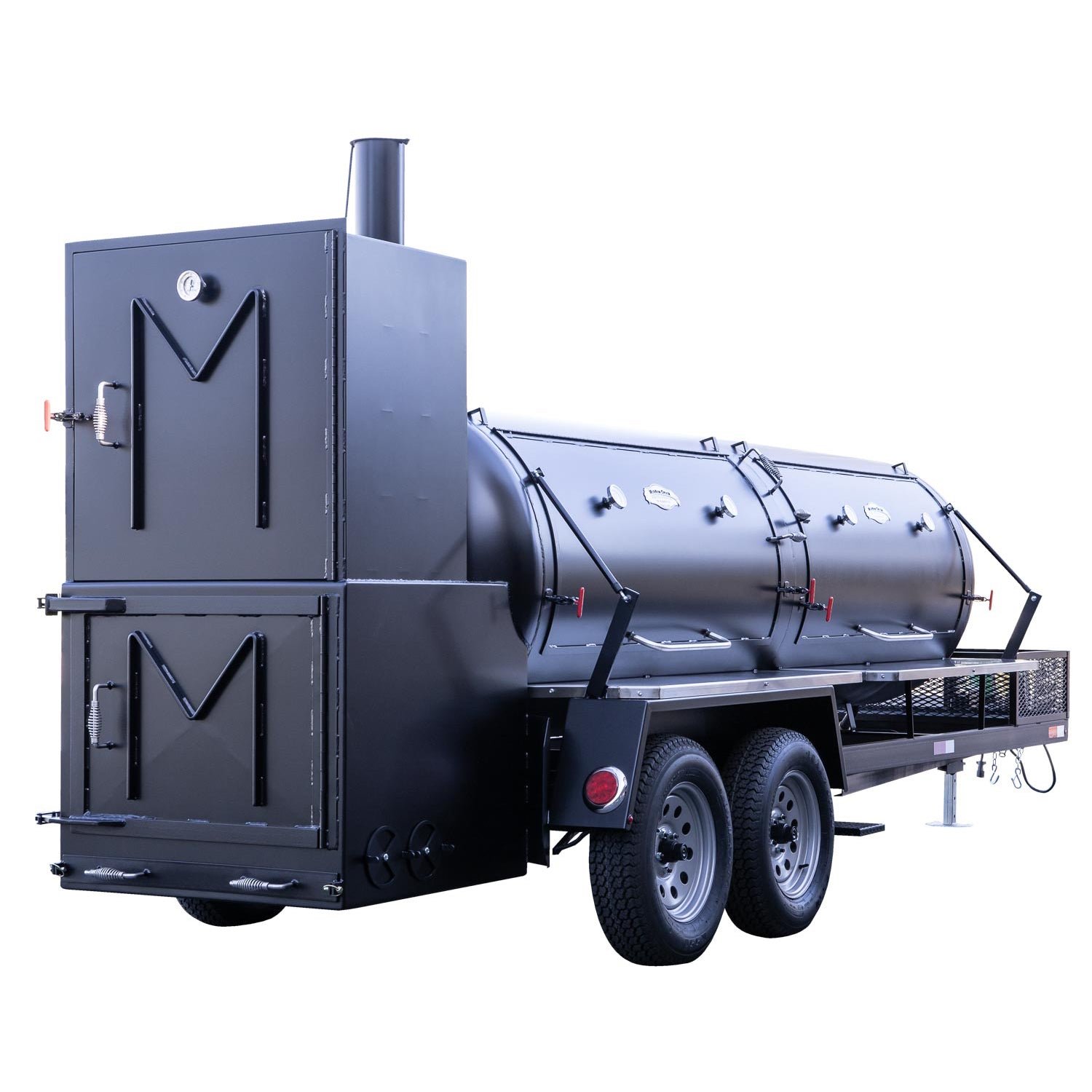

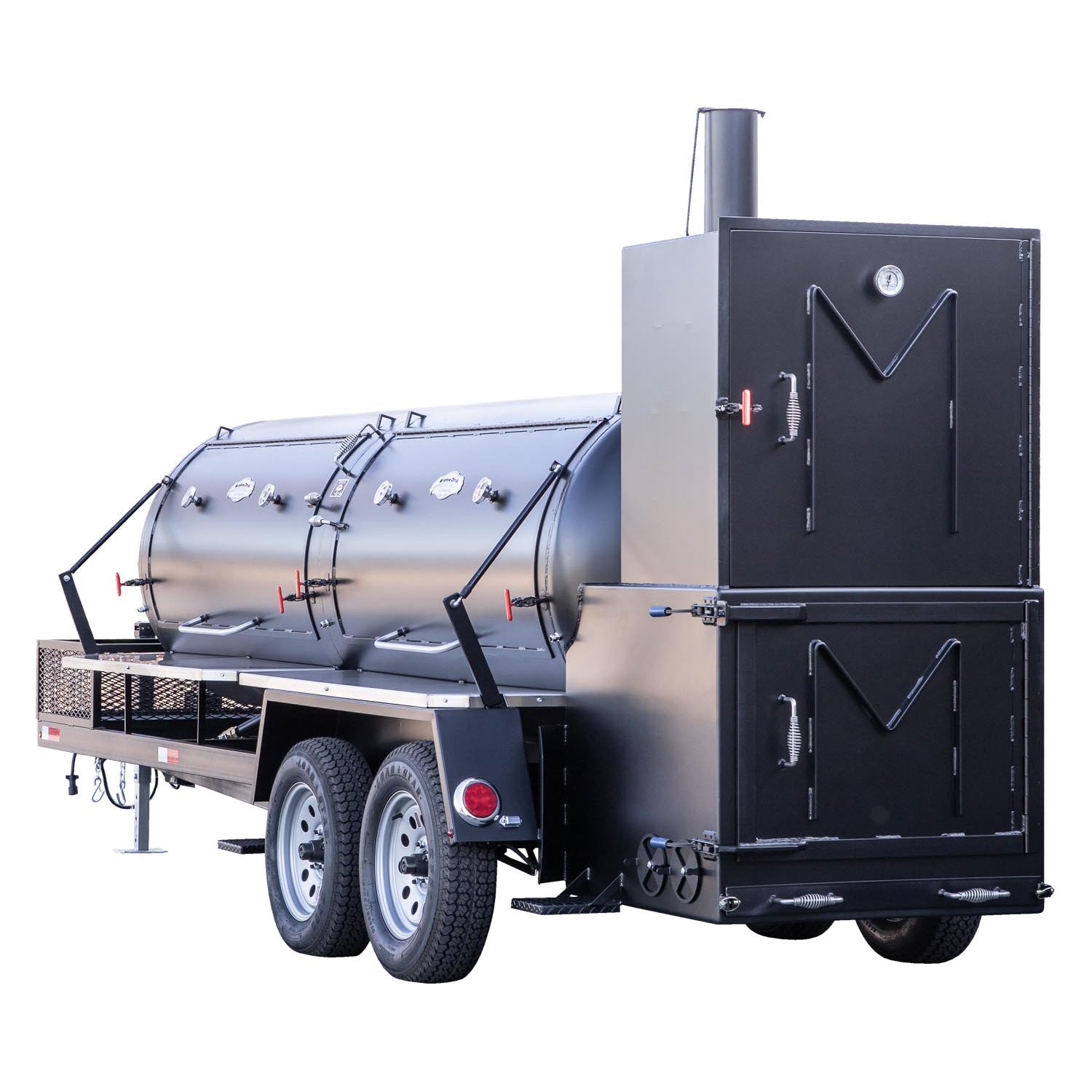

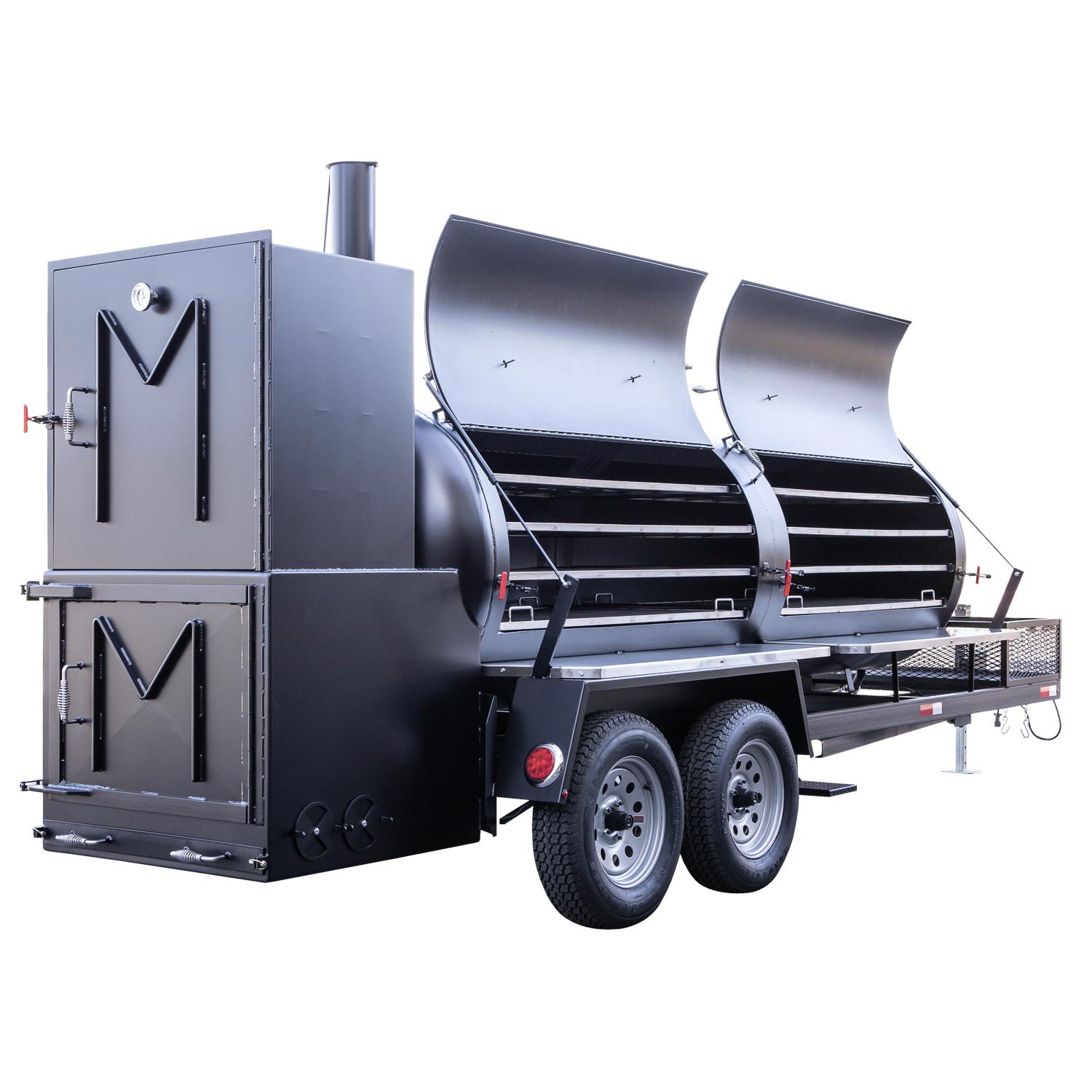

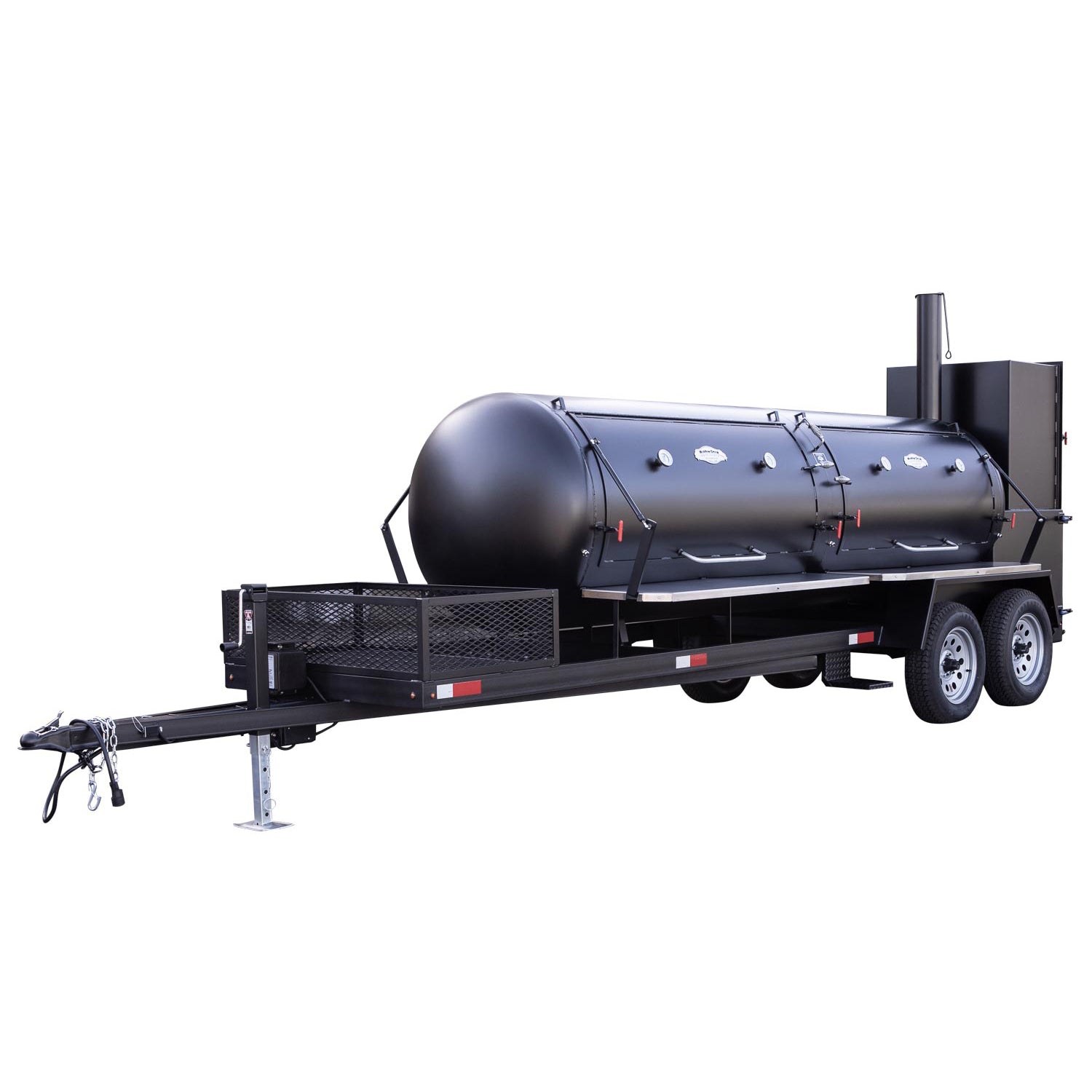

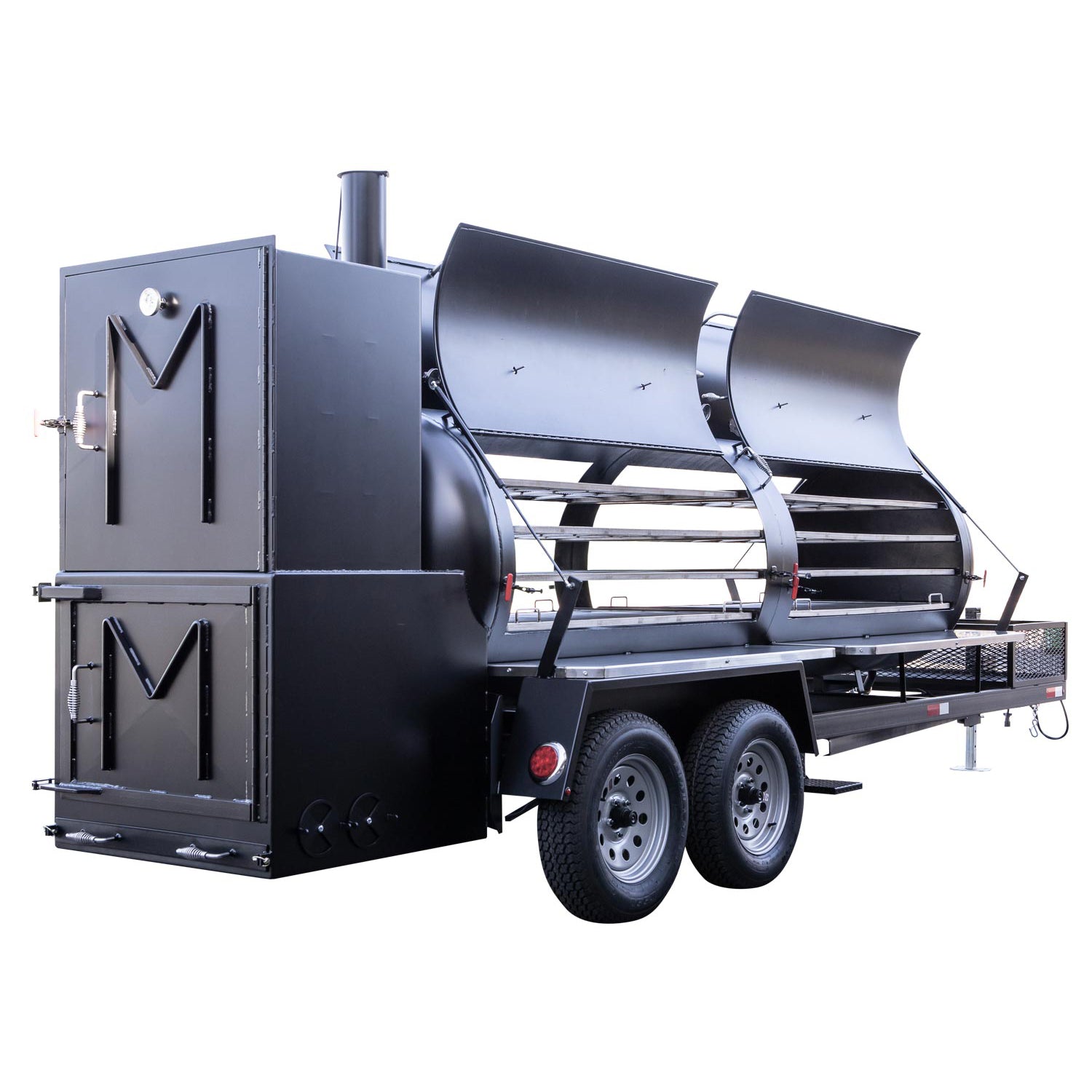

The TS1000 Tank Smoker Trailer is our biggest reverse-flow tank smoker, ready for any crowd you can throw at it. Built to satisfy the demands of large caterers and barbecue restaurants who maxed out the huge , the TS1000 boasts a giant 1,000-gallon tank for more than 2-1/2 times the cooking capacity of the TS500.

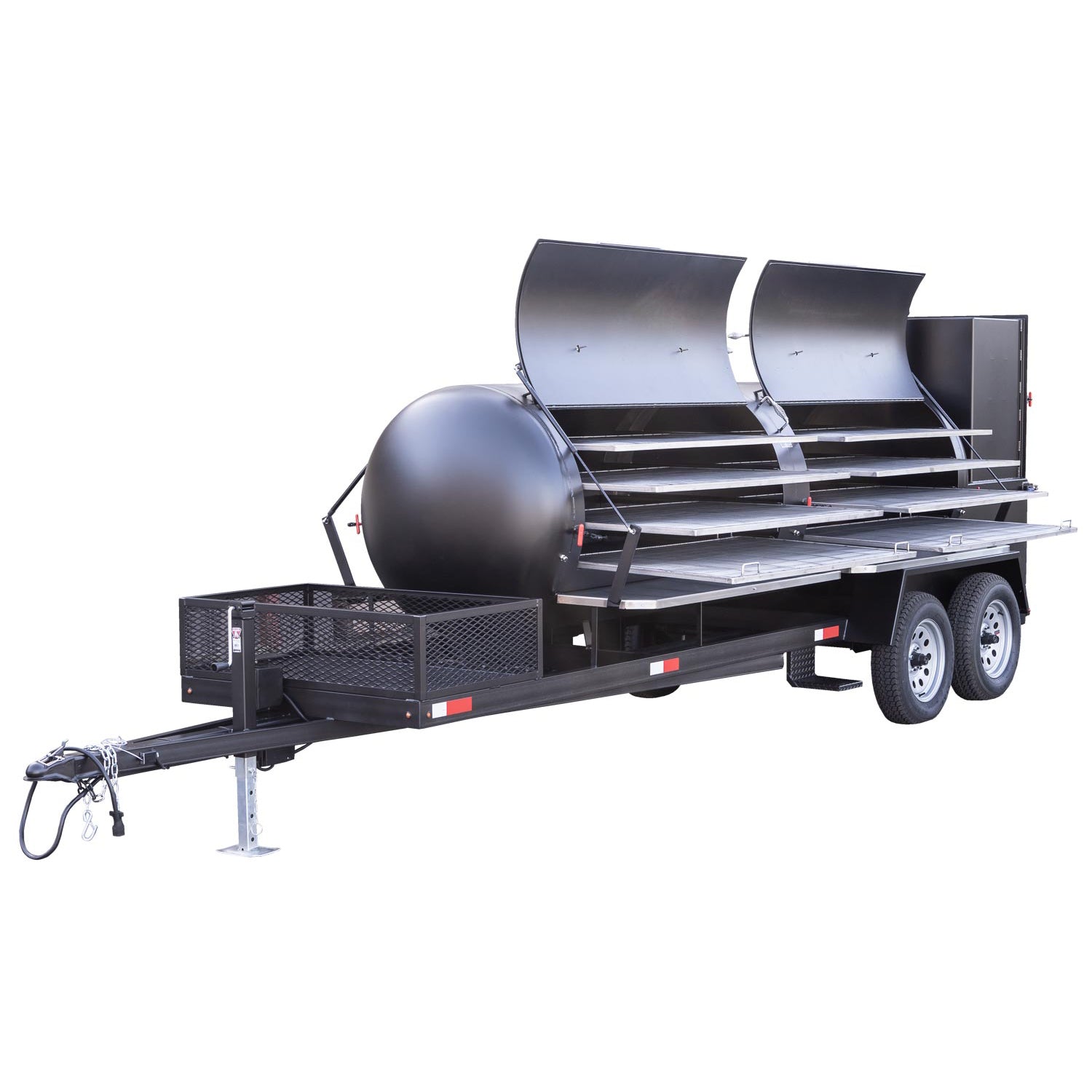

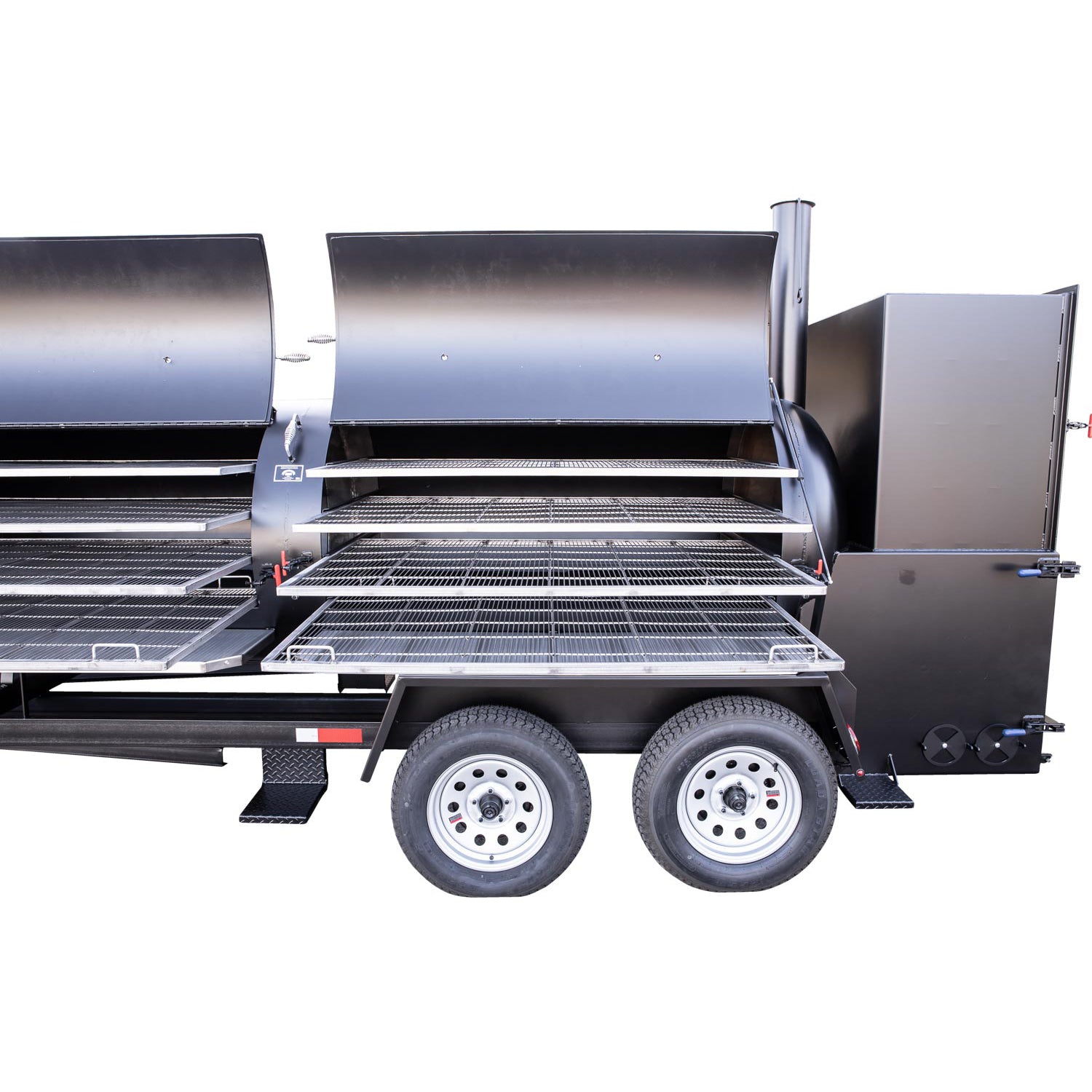

Its eight sliding stainless steel grates offer 130 square feet of cooking area, enough space for up to 180 pork butts or 140 briskets! The spacious warming box holds six full-size restaurant pans. The TS1000 provides all the standard features of our TS series, giving you the ease of use and the confidence you need to focus on supplying the best barbecue your crowd has ever tasted.

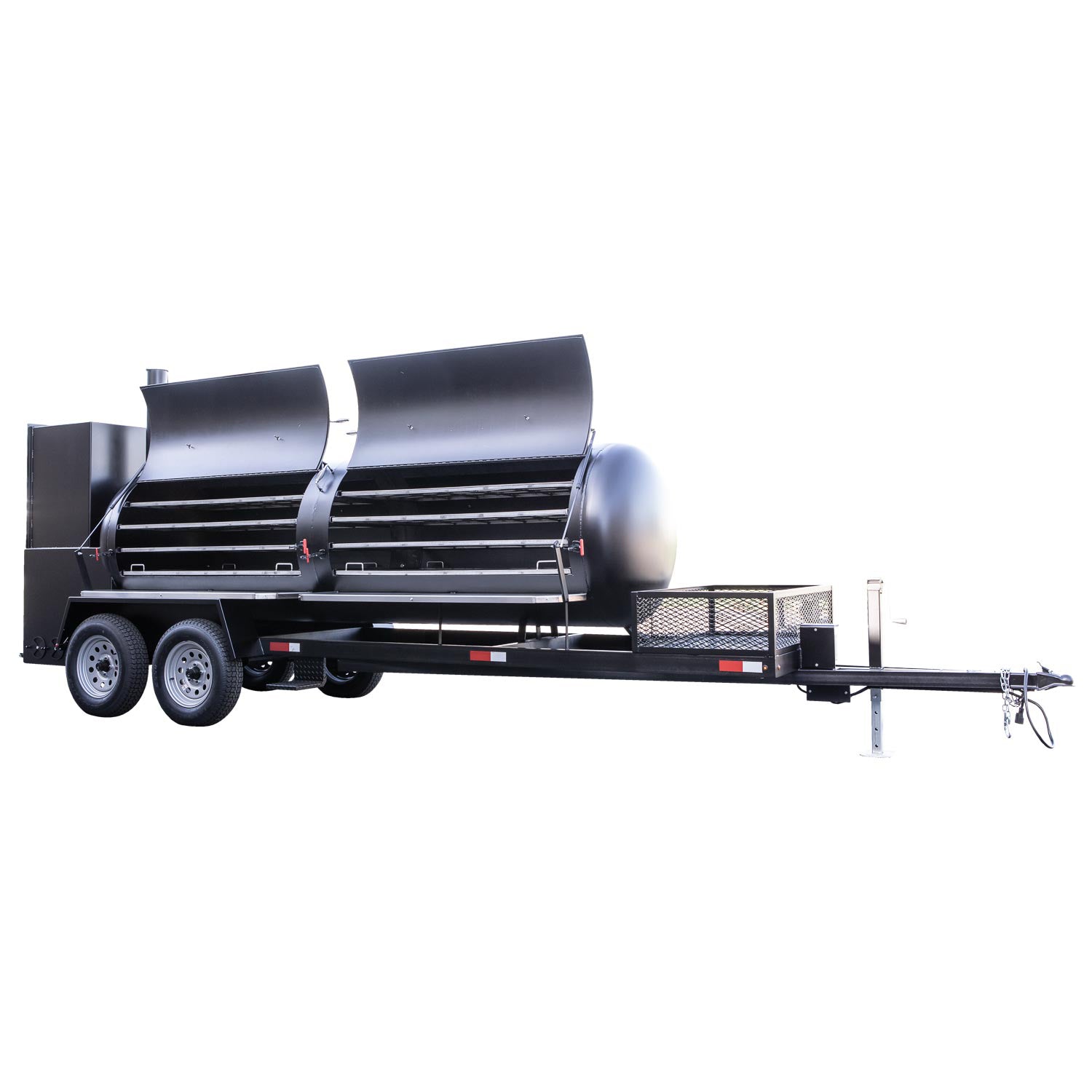

When it’s time to hit the road, the TS1000’s rugged trailer has the quality, balance, and safety features to give you peace of mind no matter how many miles you need to cover. A four-inch channel frame provides a bullet-proof foundation for this beast of a smoker, the heavy-duty tandem axle with brakes keeps the fifteen-inch highway wheels rolling, and ample LED lighting keeps you visible.
Meadow Creek TS500 Offset Tank Smoker and Trailer
Features

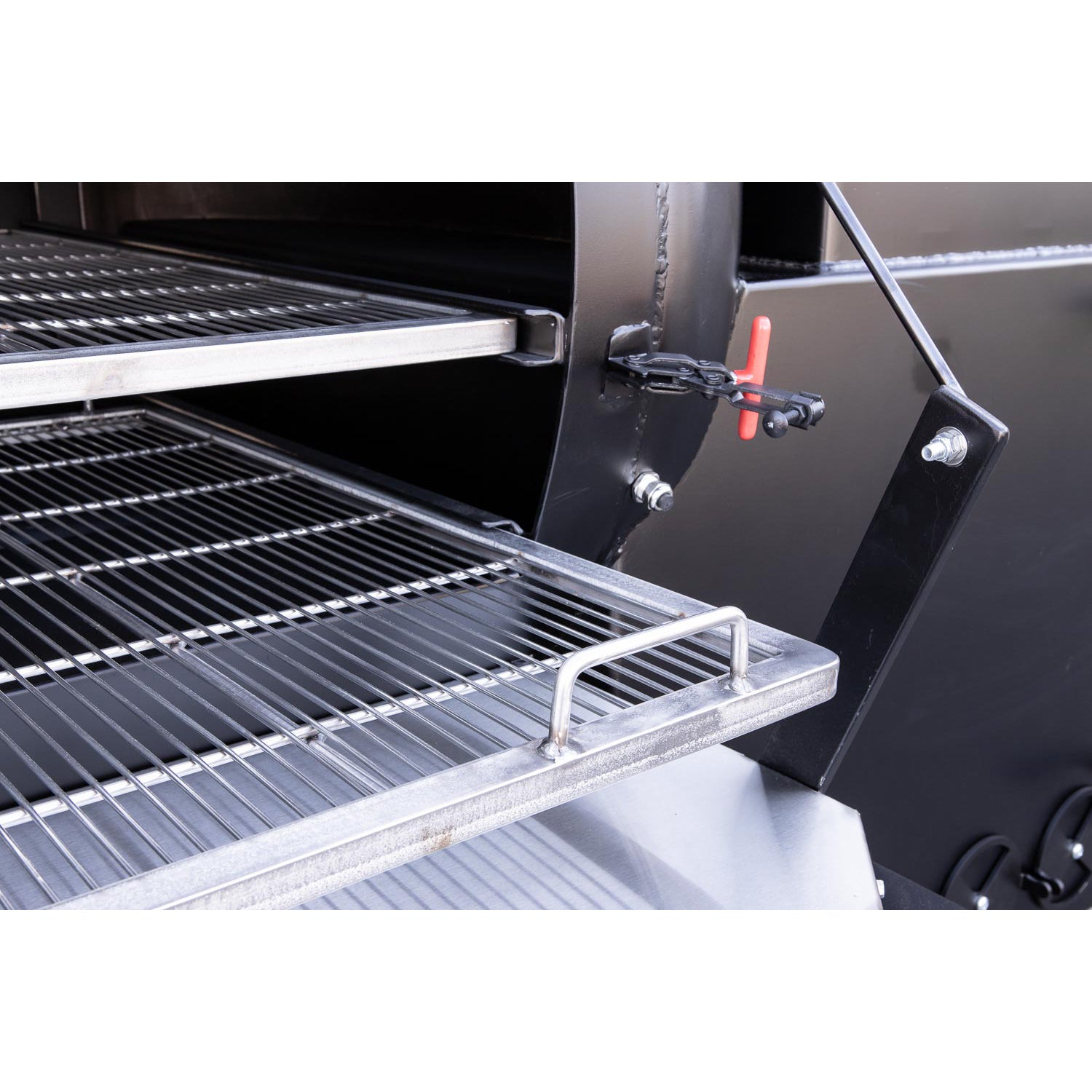

- 8 Stainless Steel Slide-Out Grates
- Reverse-Flow Draft
- Built-In Water Pan
- All Stainless Steel Handles
- 4 Expanded Metal Exterior Shelves (2 on Each Side)

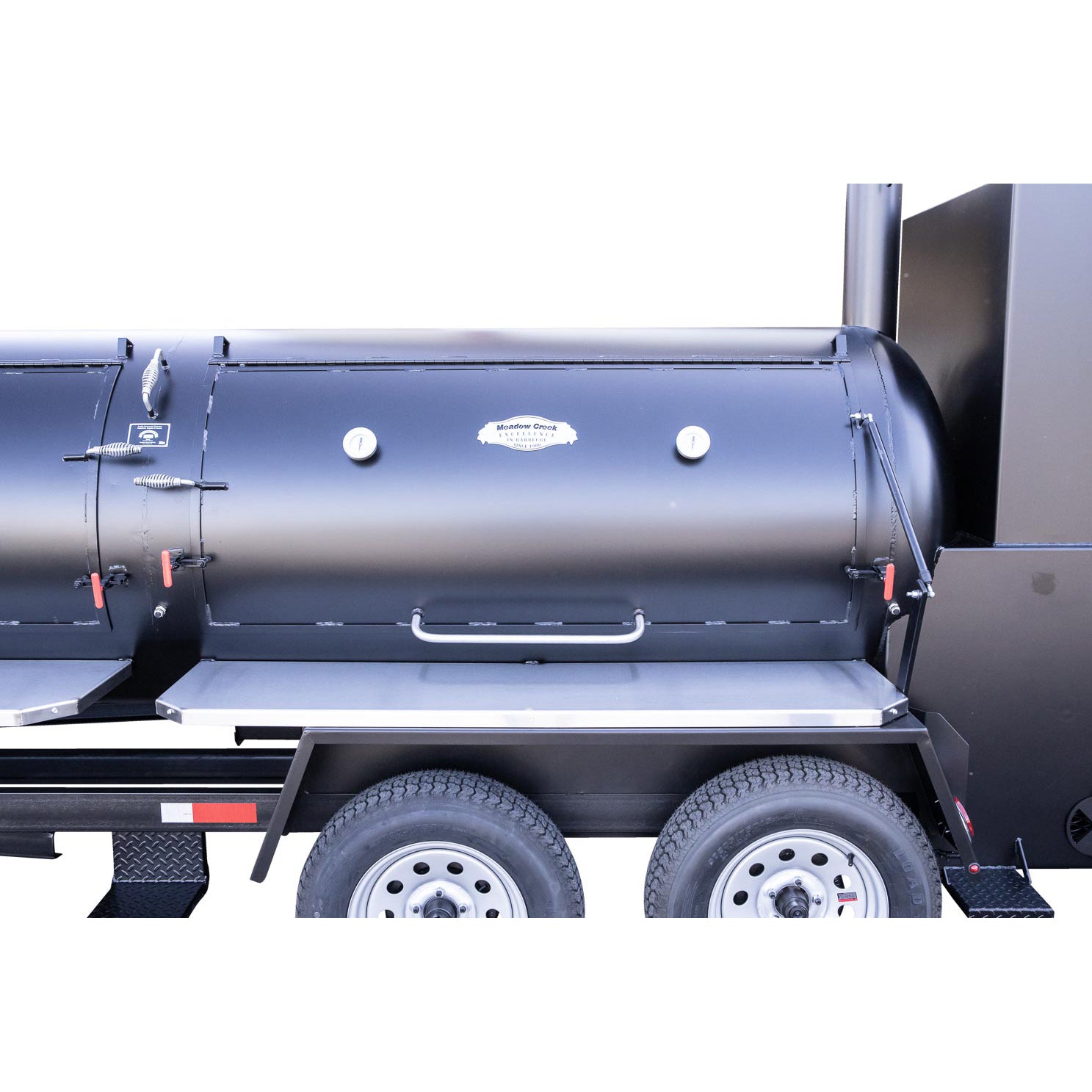

- 2 Doors on Each Side of Smoker

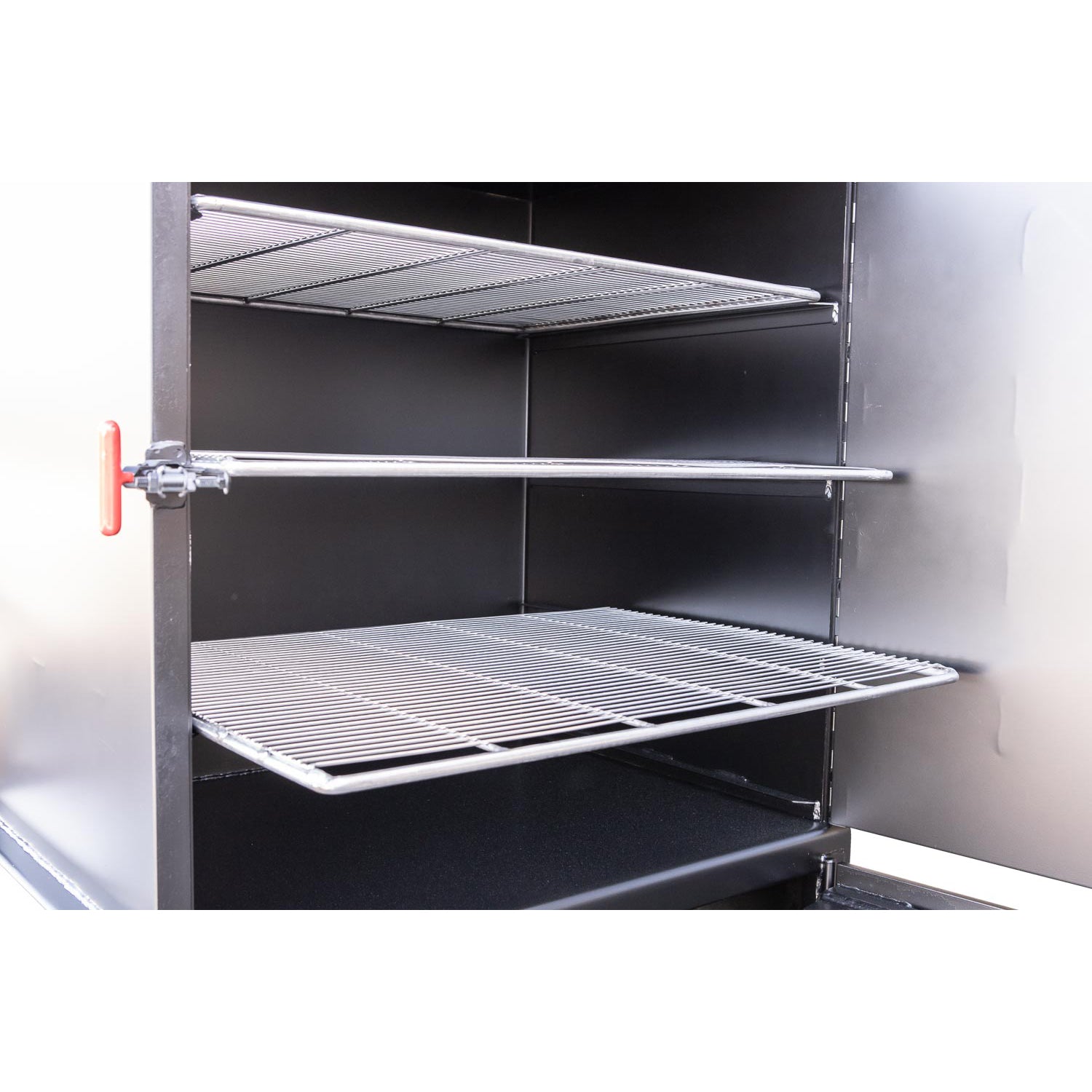

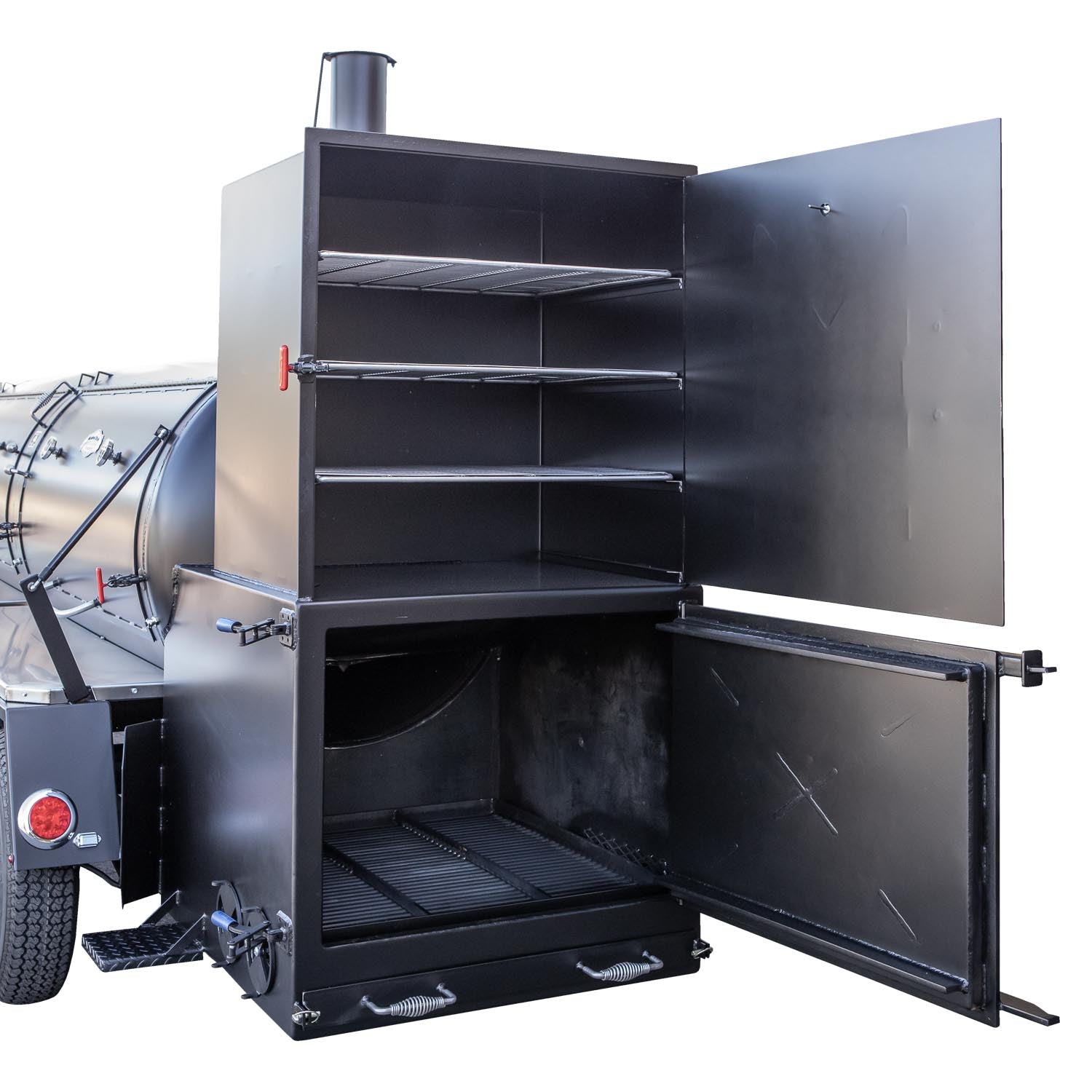

- Warming Box With 3 Shelves
- 4" Channel Frame Trailer

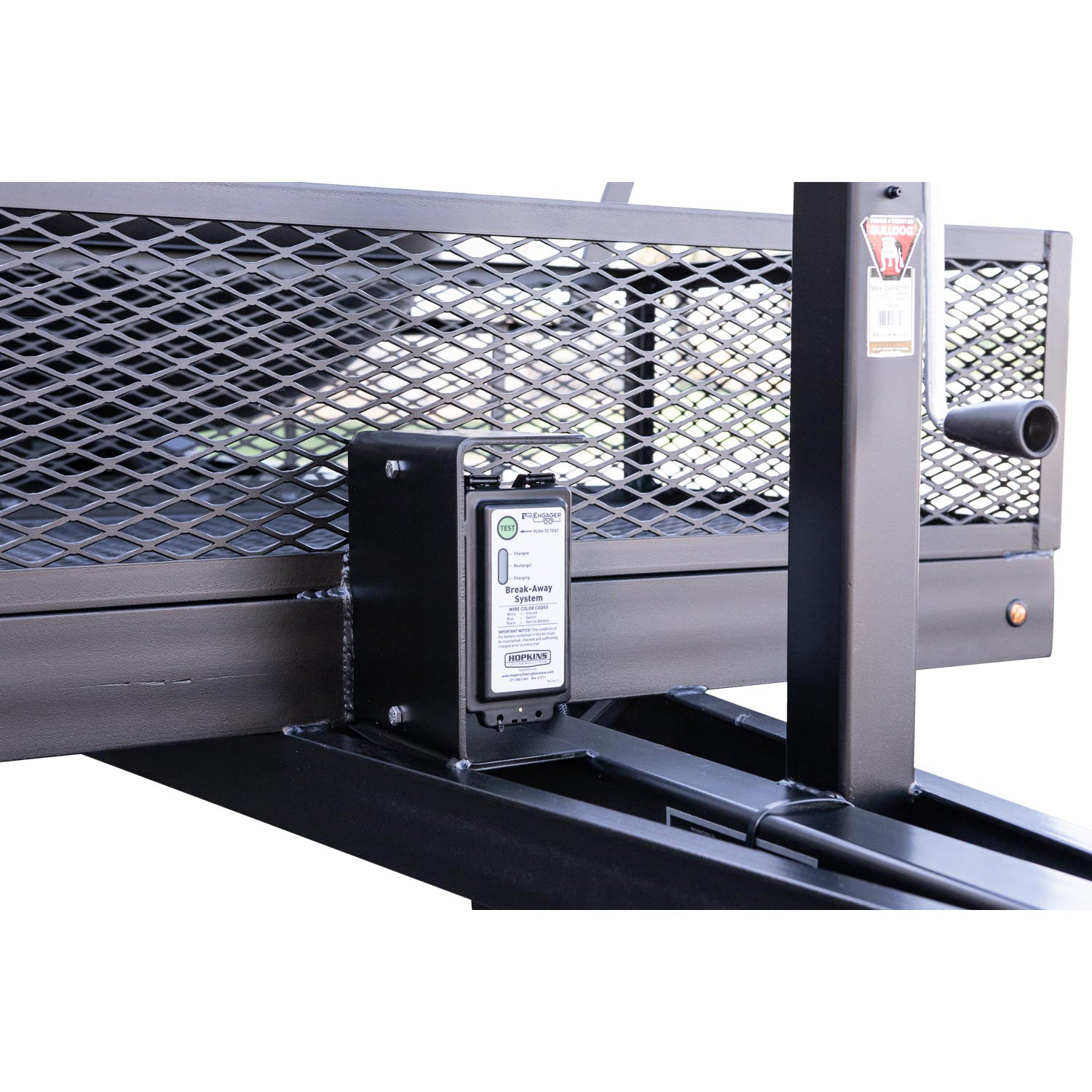

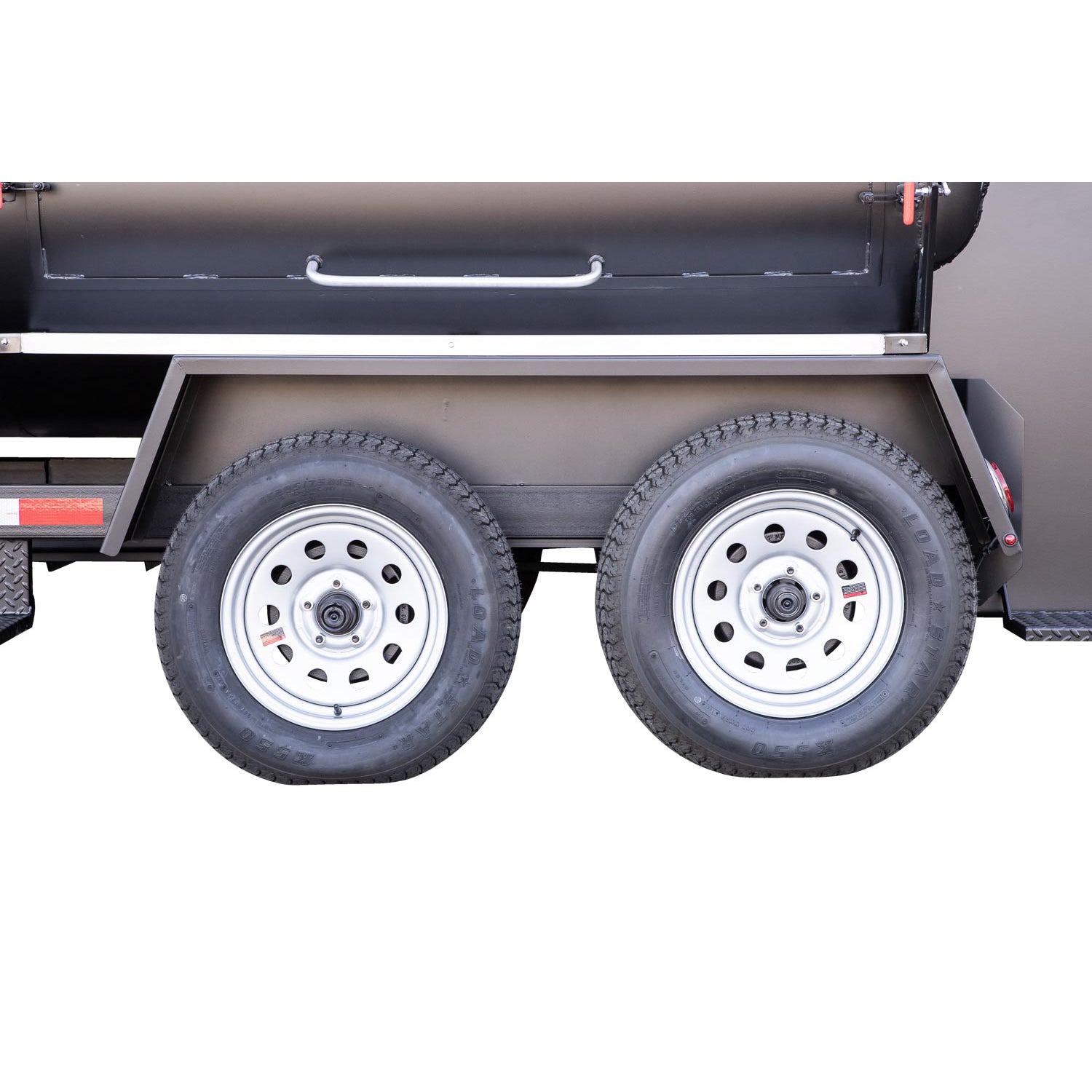

- Tandem Axle With Brakes
- Easy-to-Lube Bearings
- Spacious Wood Box
- Heat Baffles on Fire Box to Protect Wheels

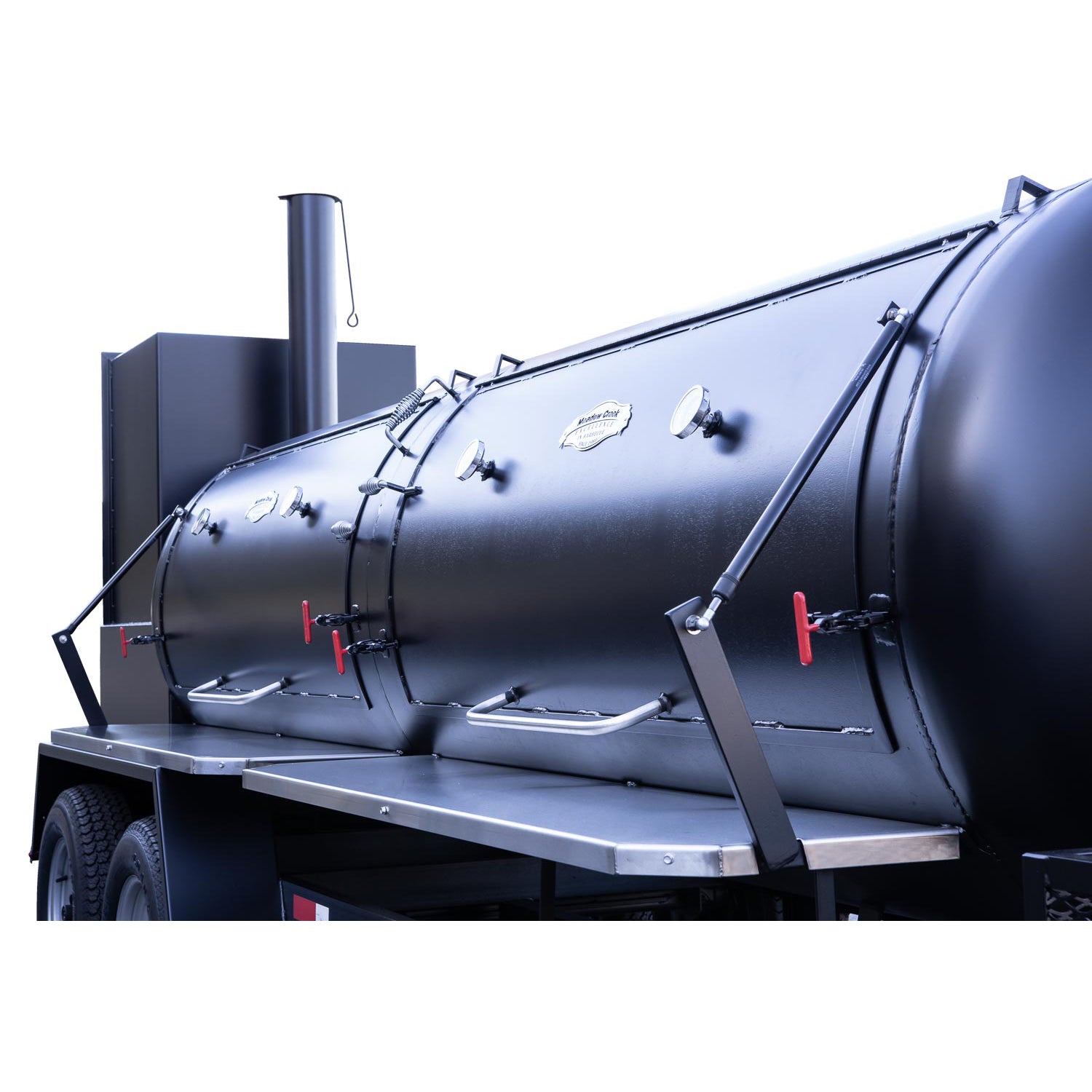

- Gas Springs on Smoker Doors

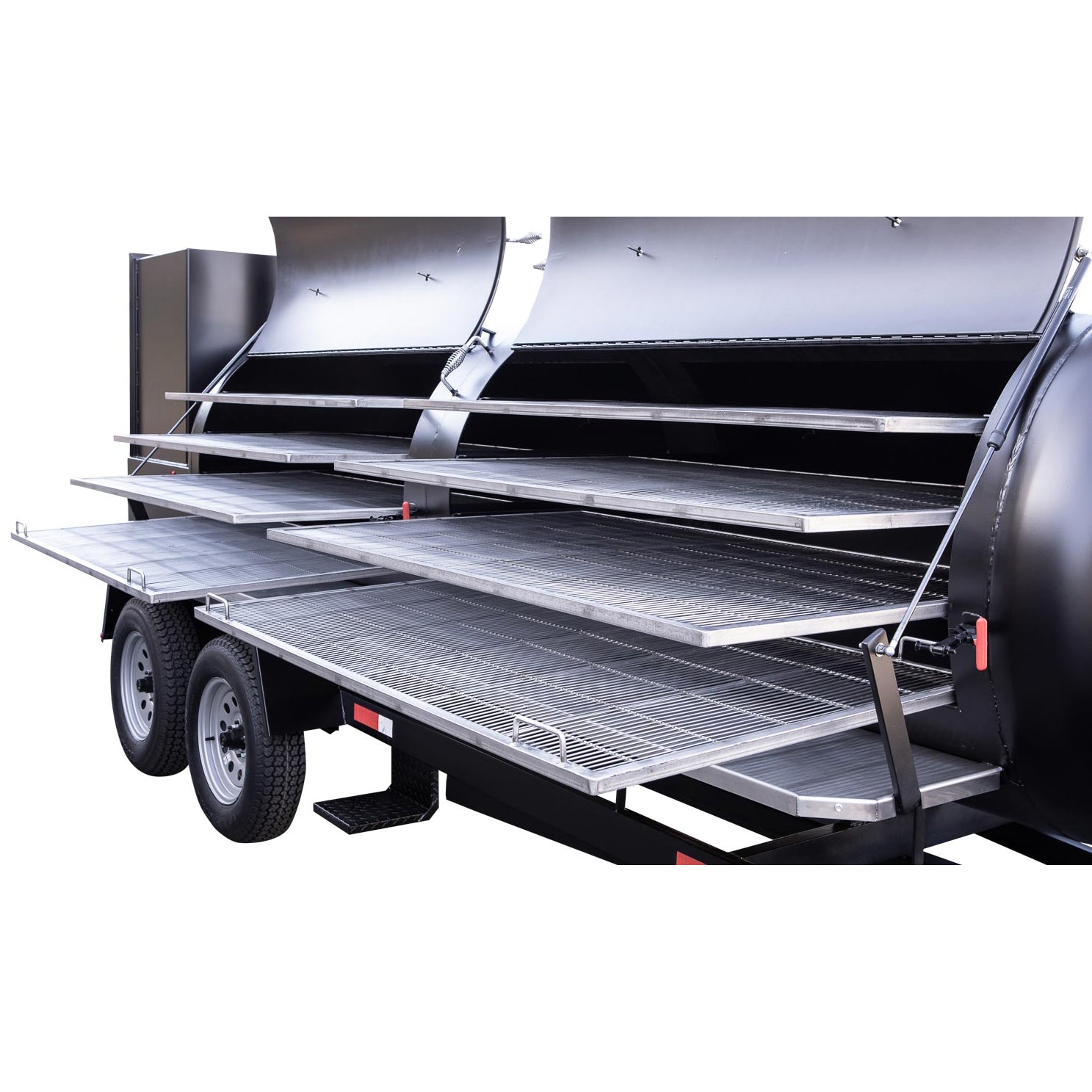

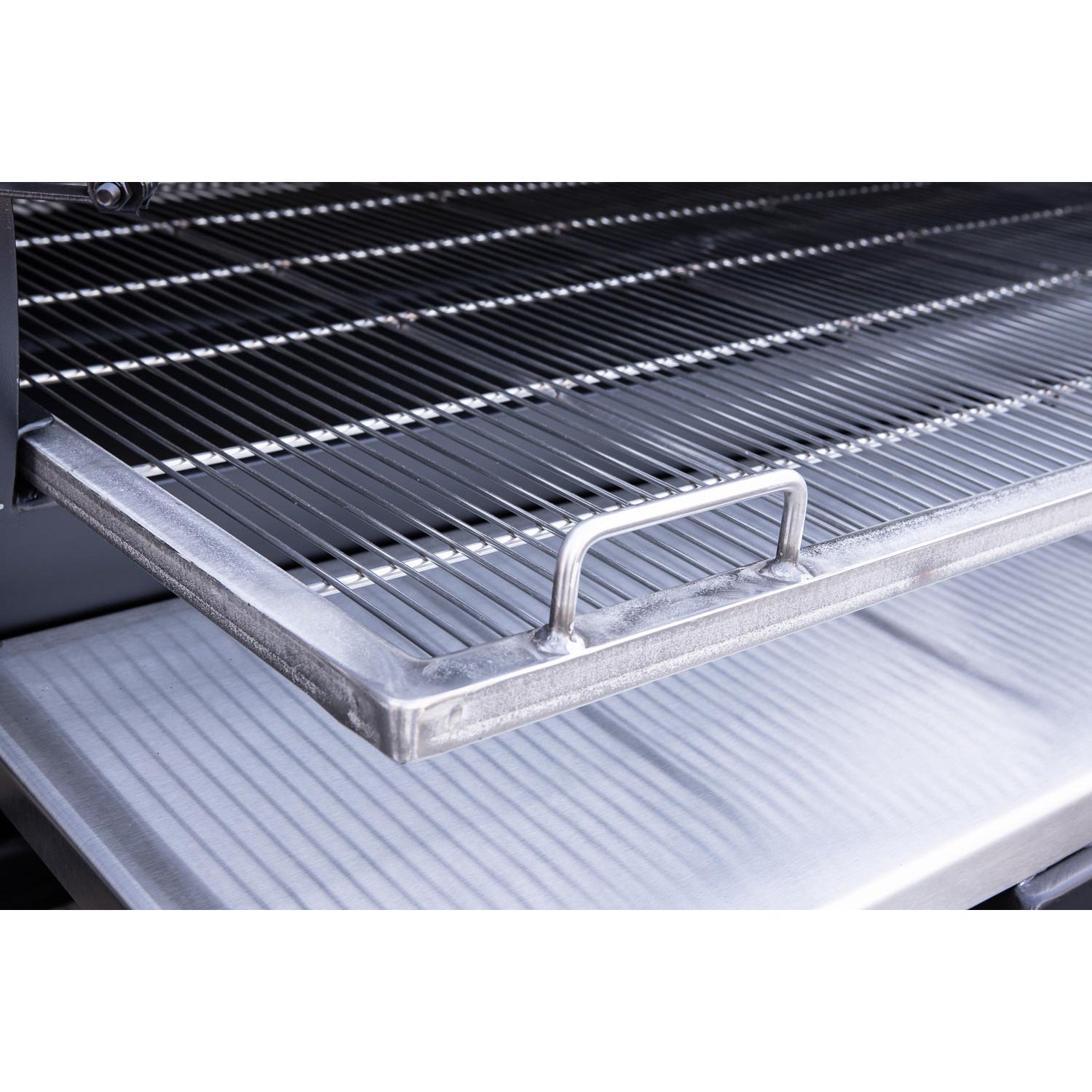

- Cooking grates are made of rust-free food-grade T304 stainless steel rod and easy to clean.
- Tanks are made of 3/16” plate steel and fireboxes of 1/4” plate steel and painted with black heat-resistant paint in an attractive matte finish.

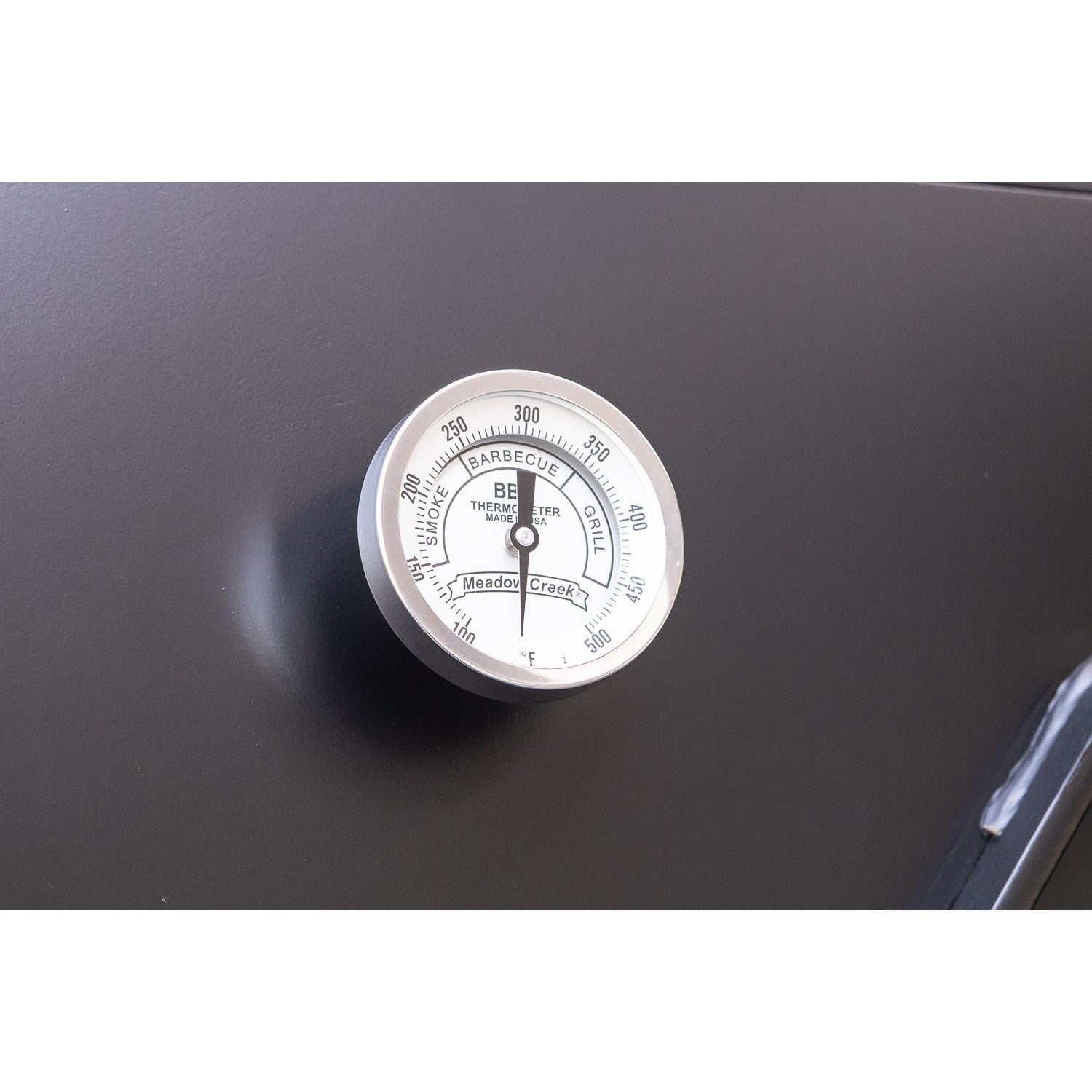

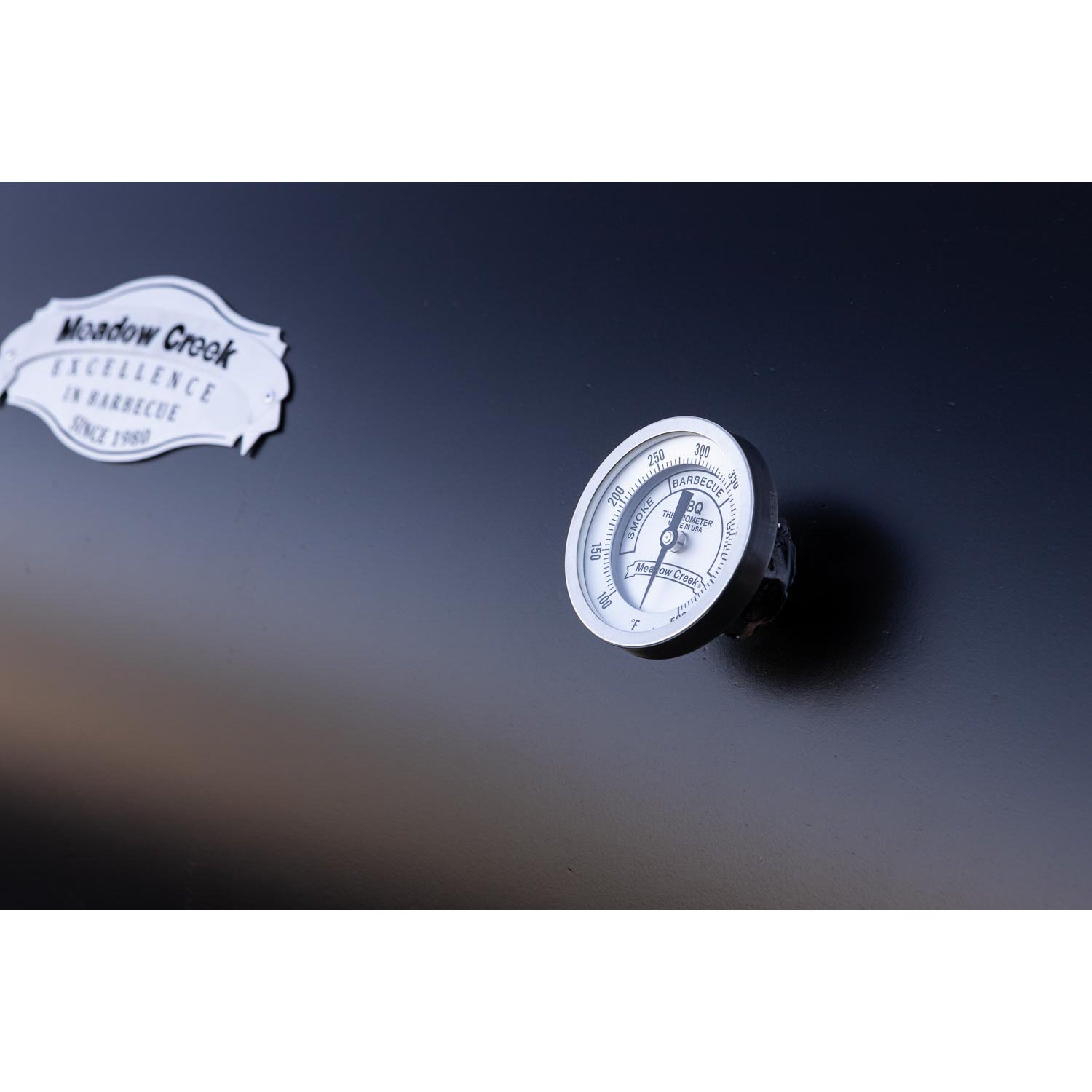

- Stainless steel calibratable thermometer

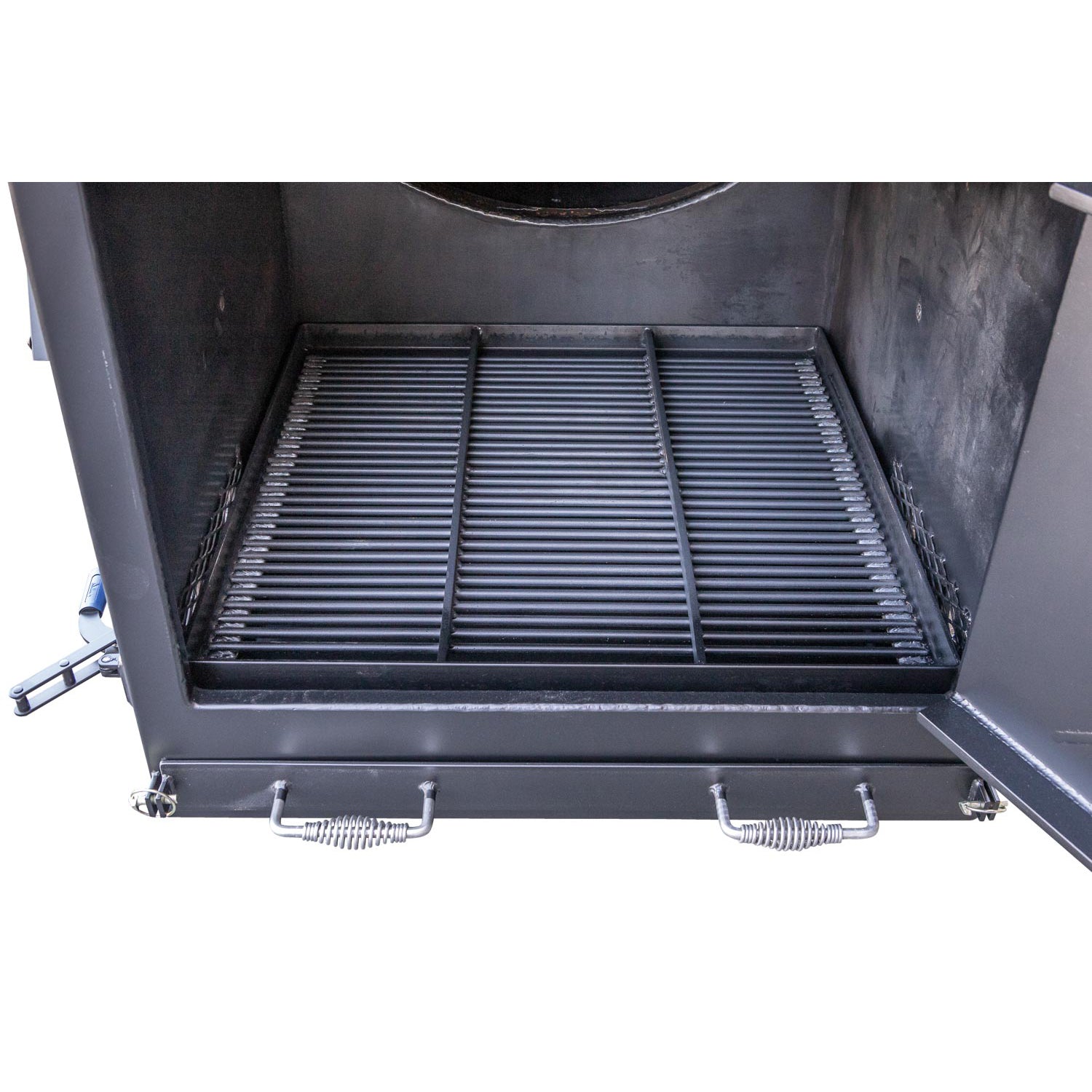

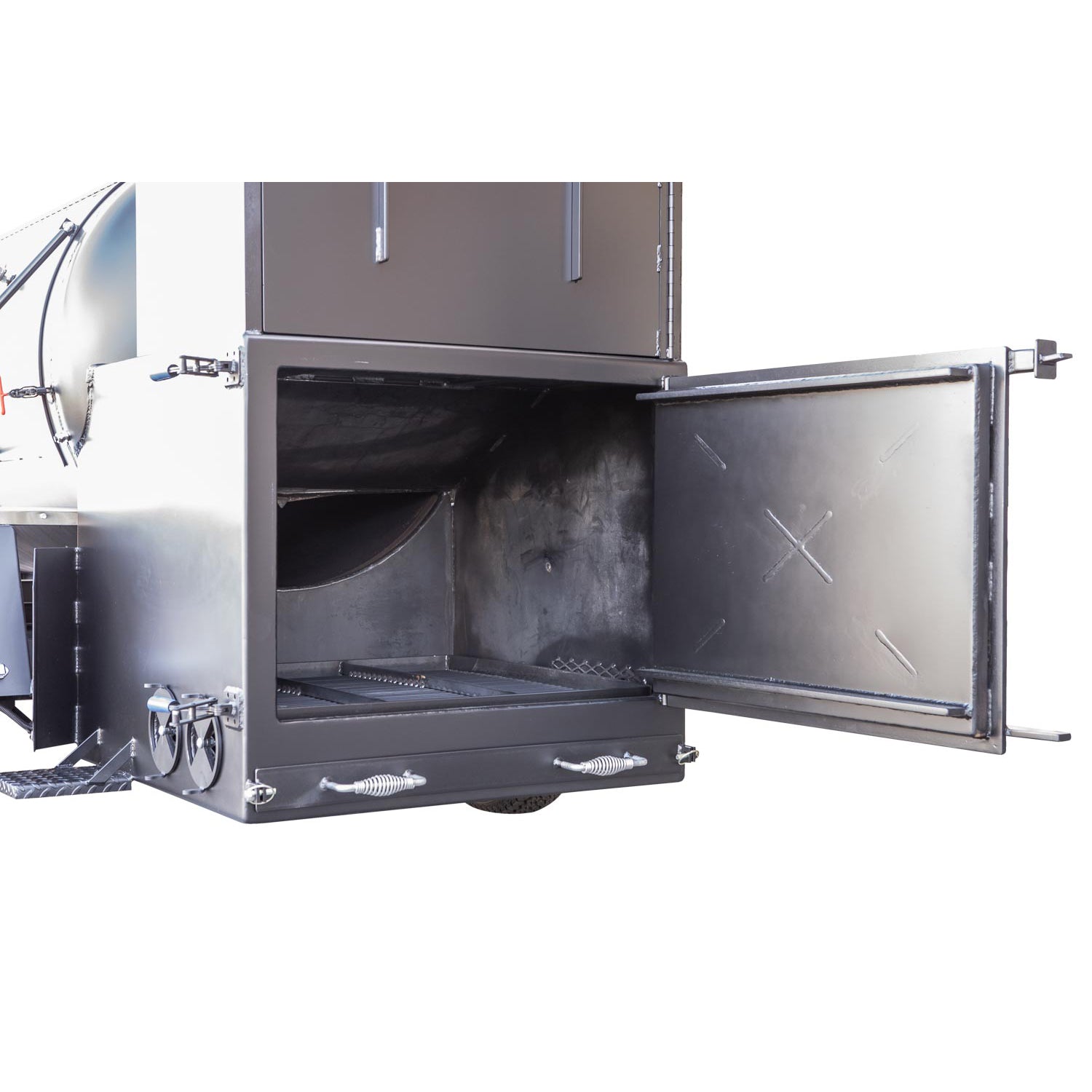

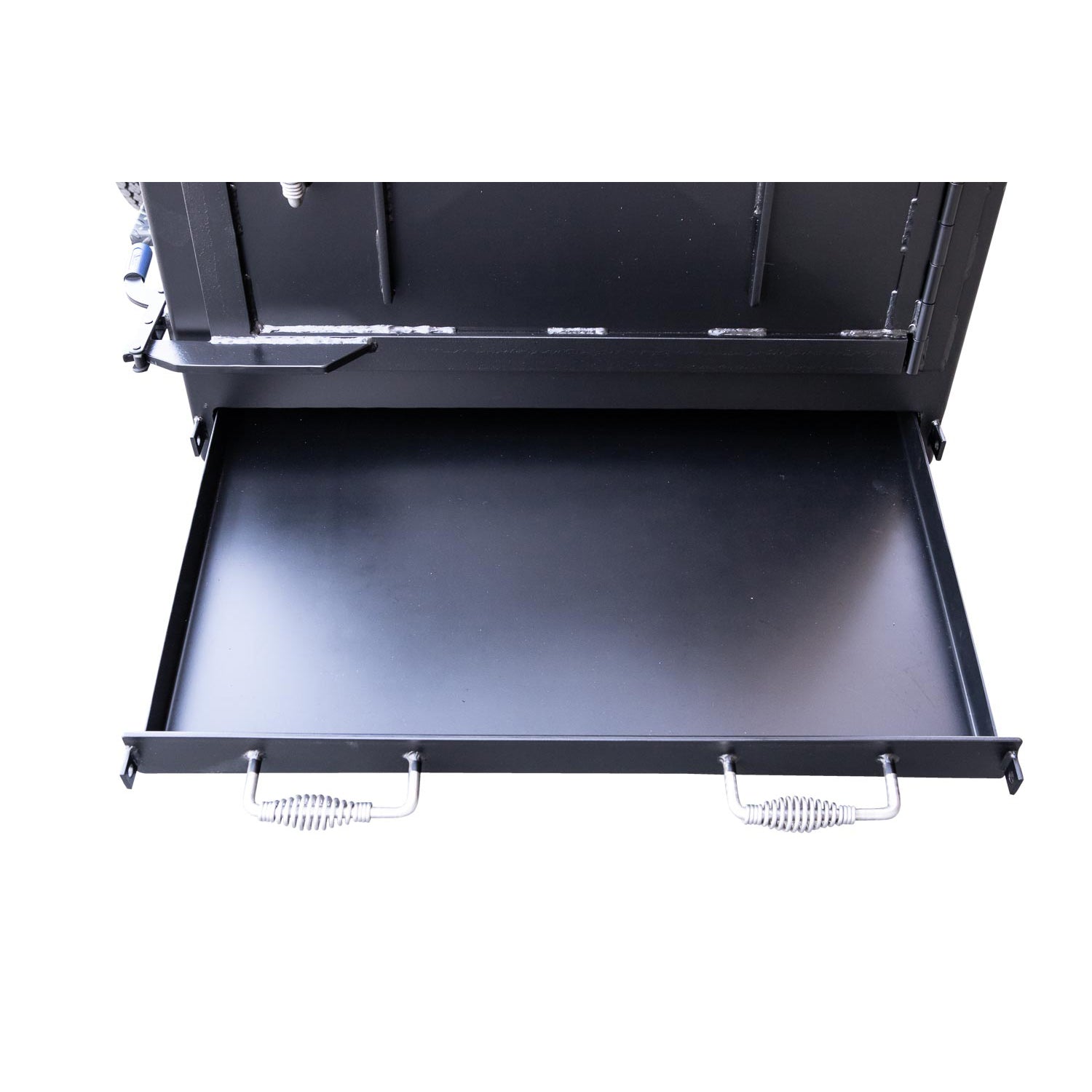

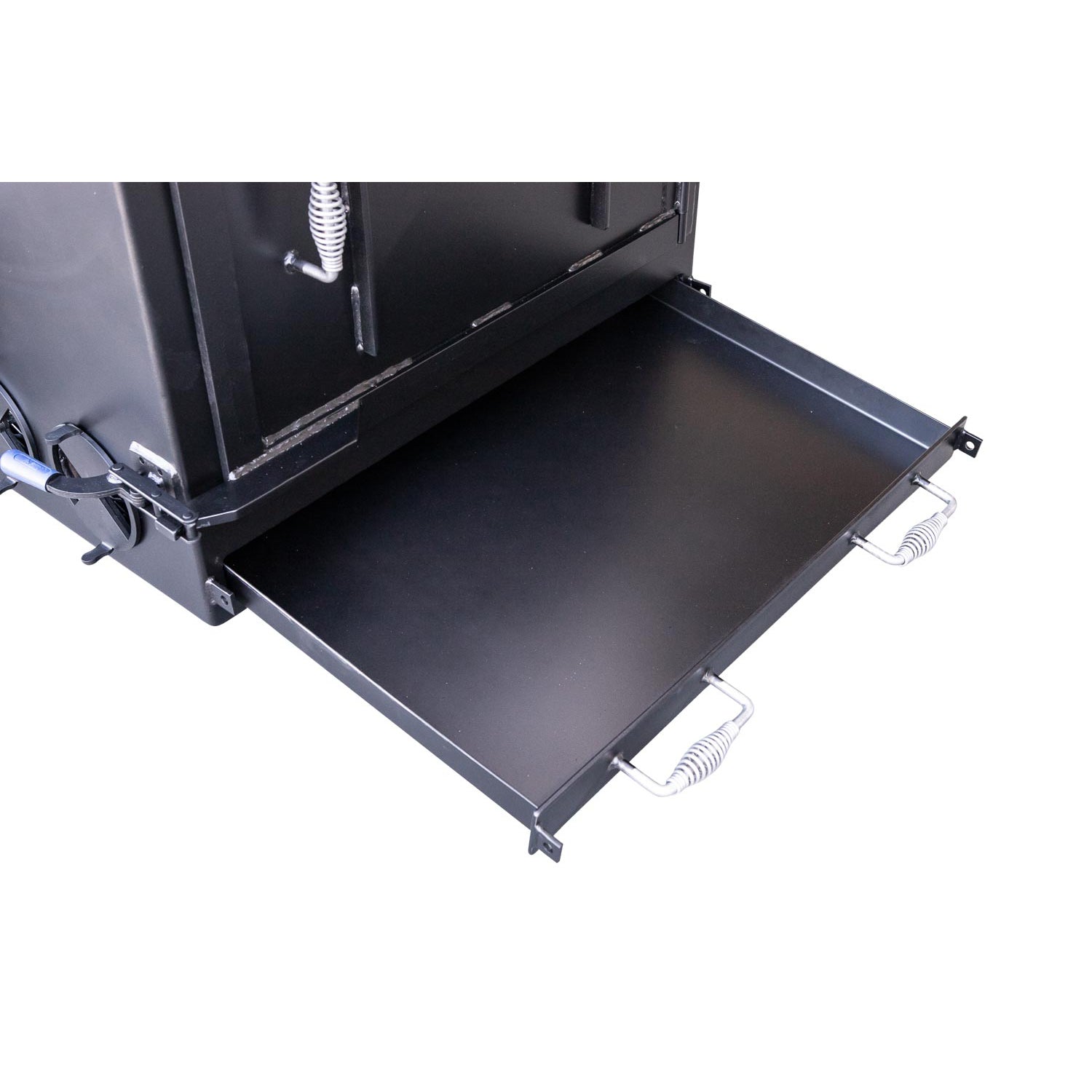

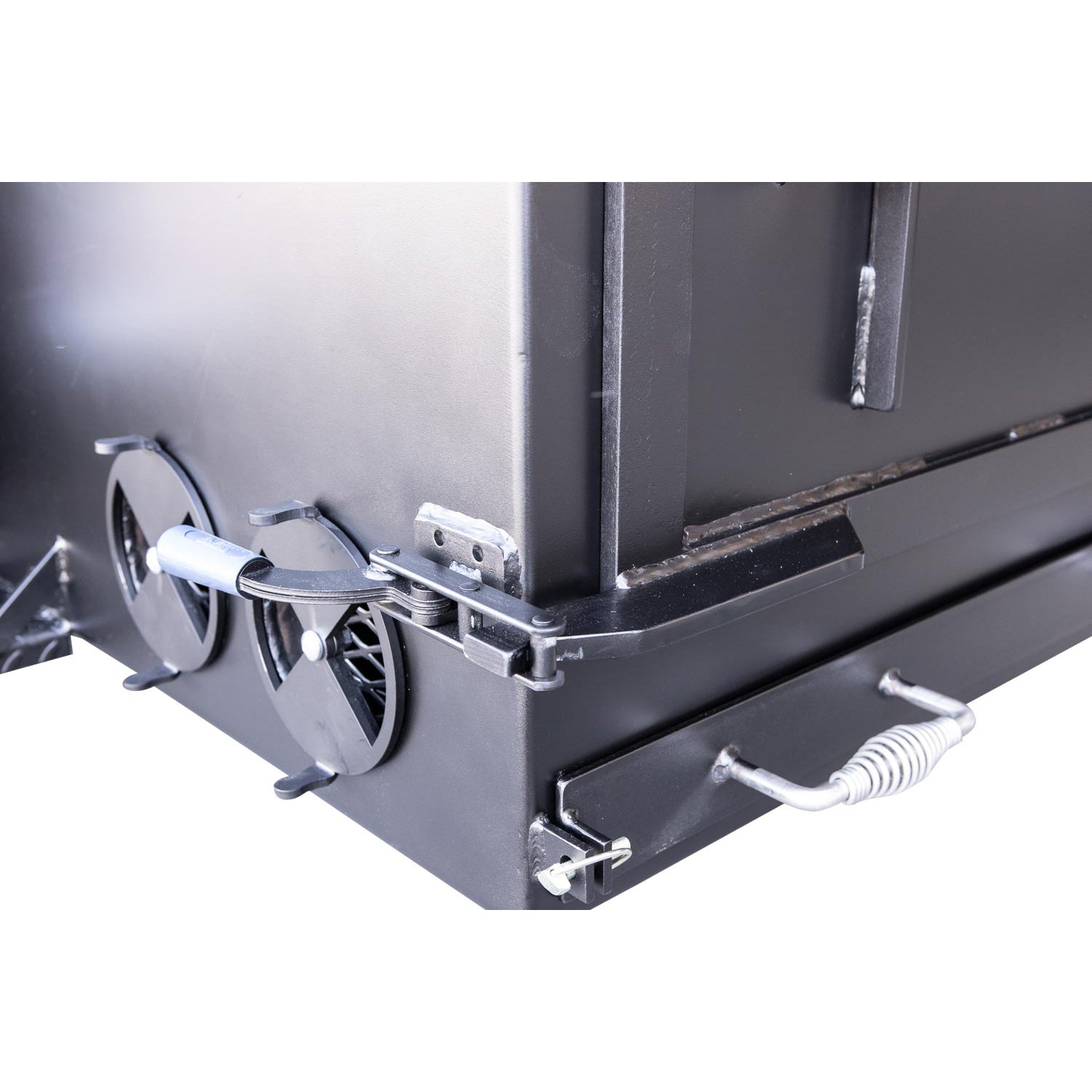

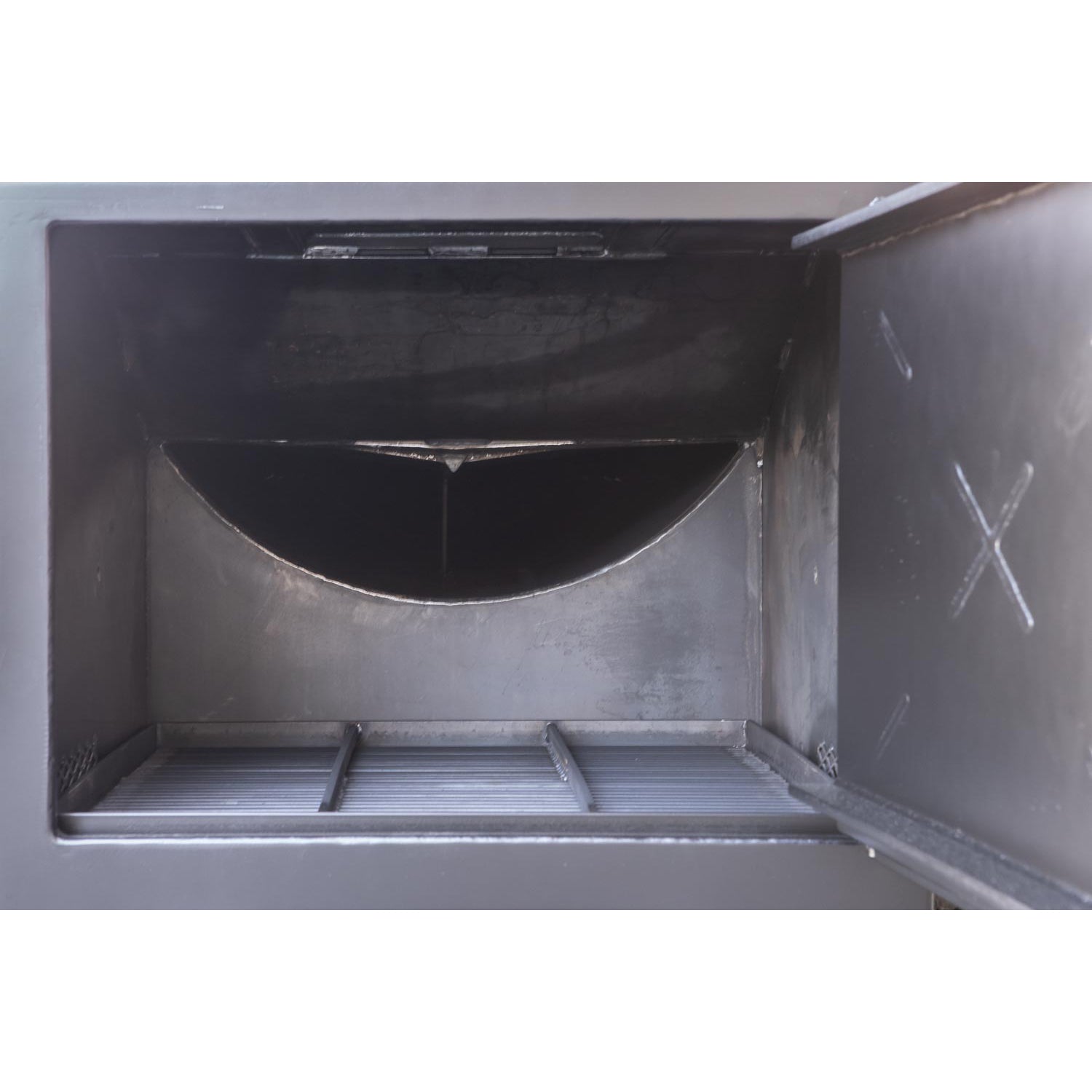

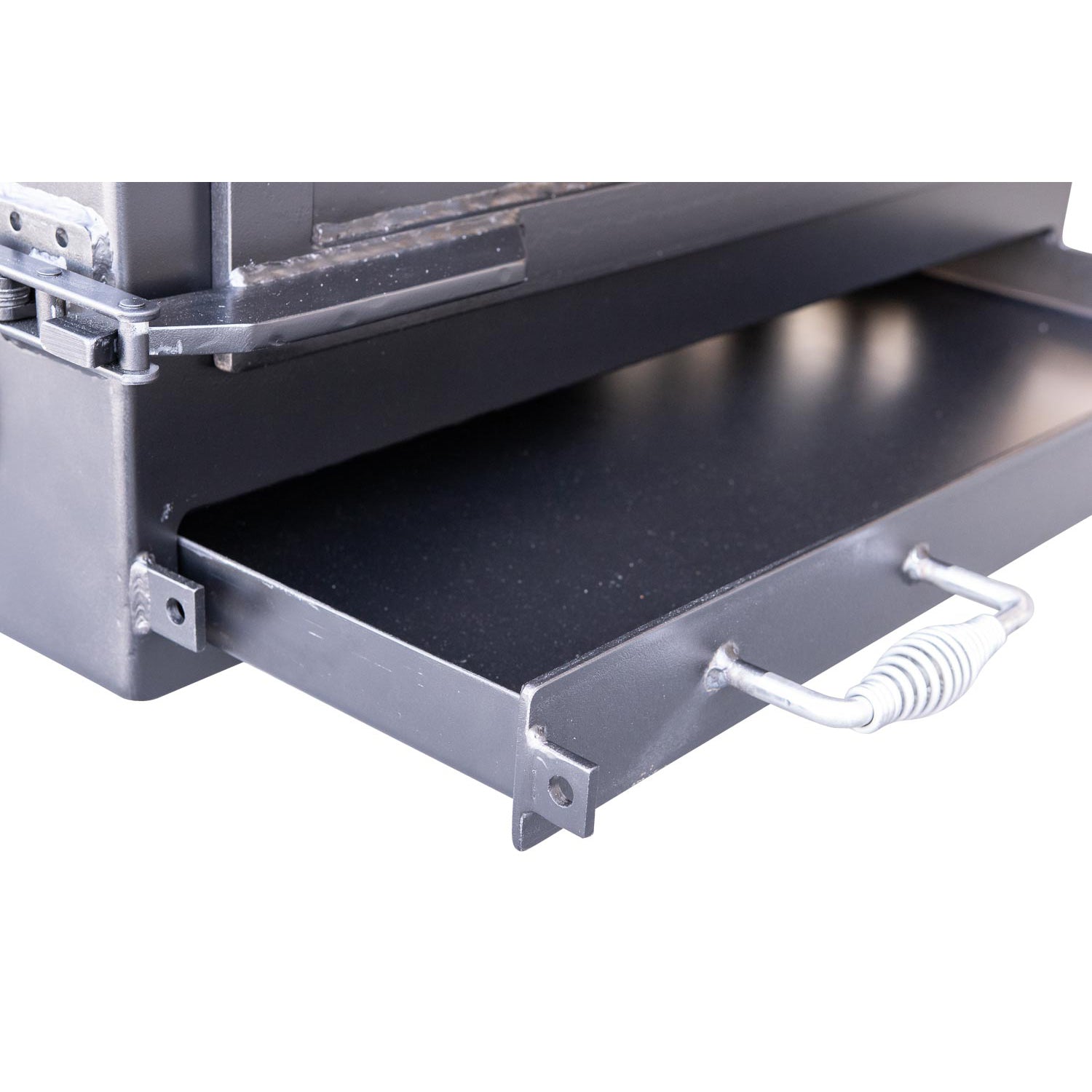

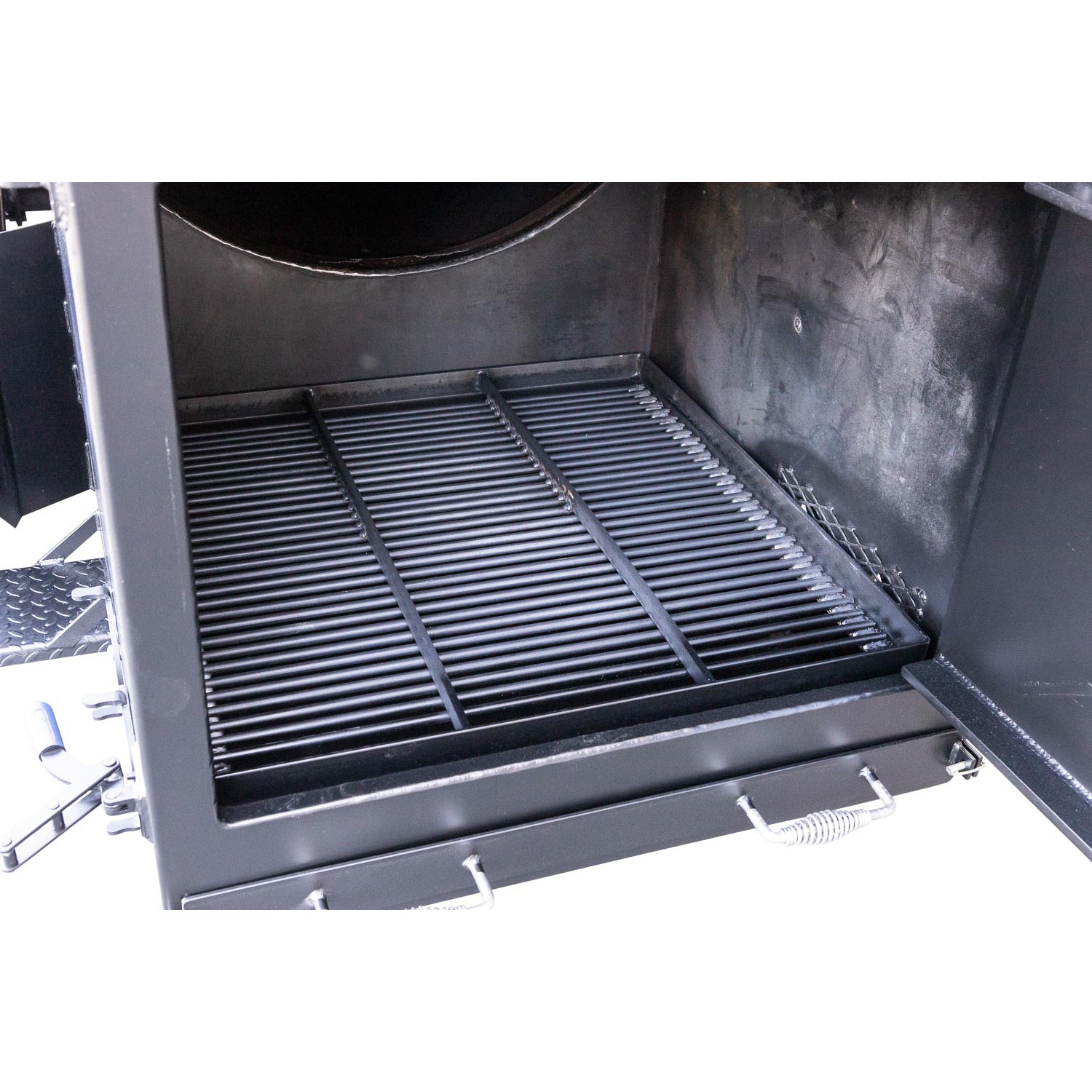

- Grate in firebox with slide-out ash pan

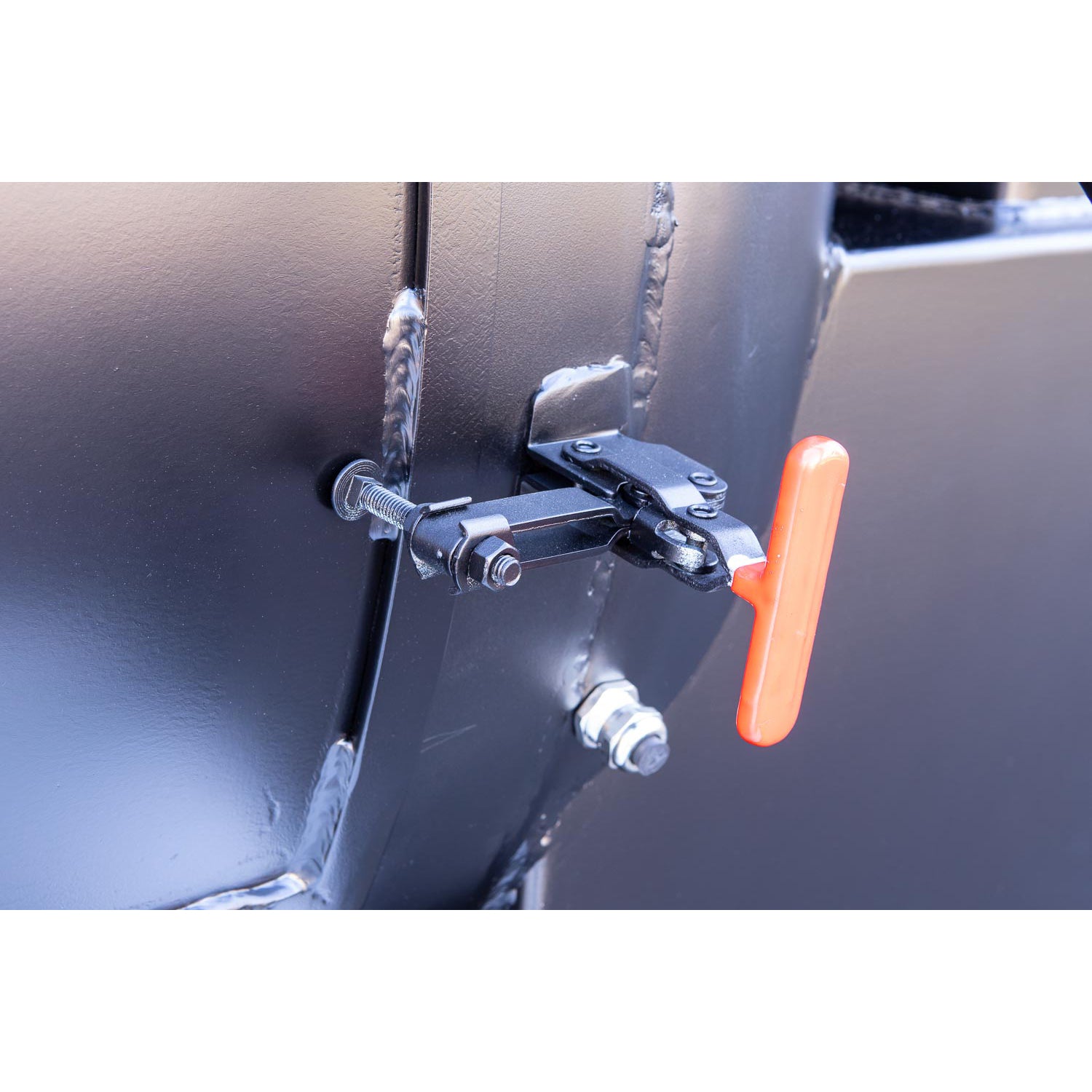

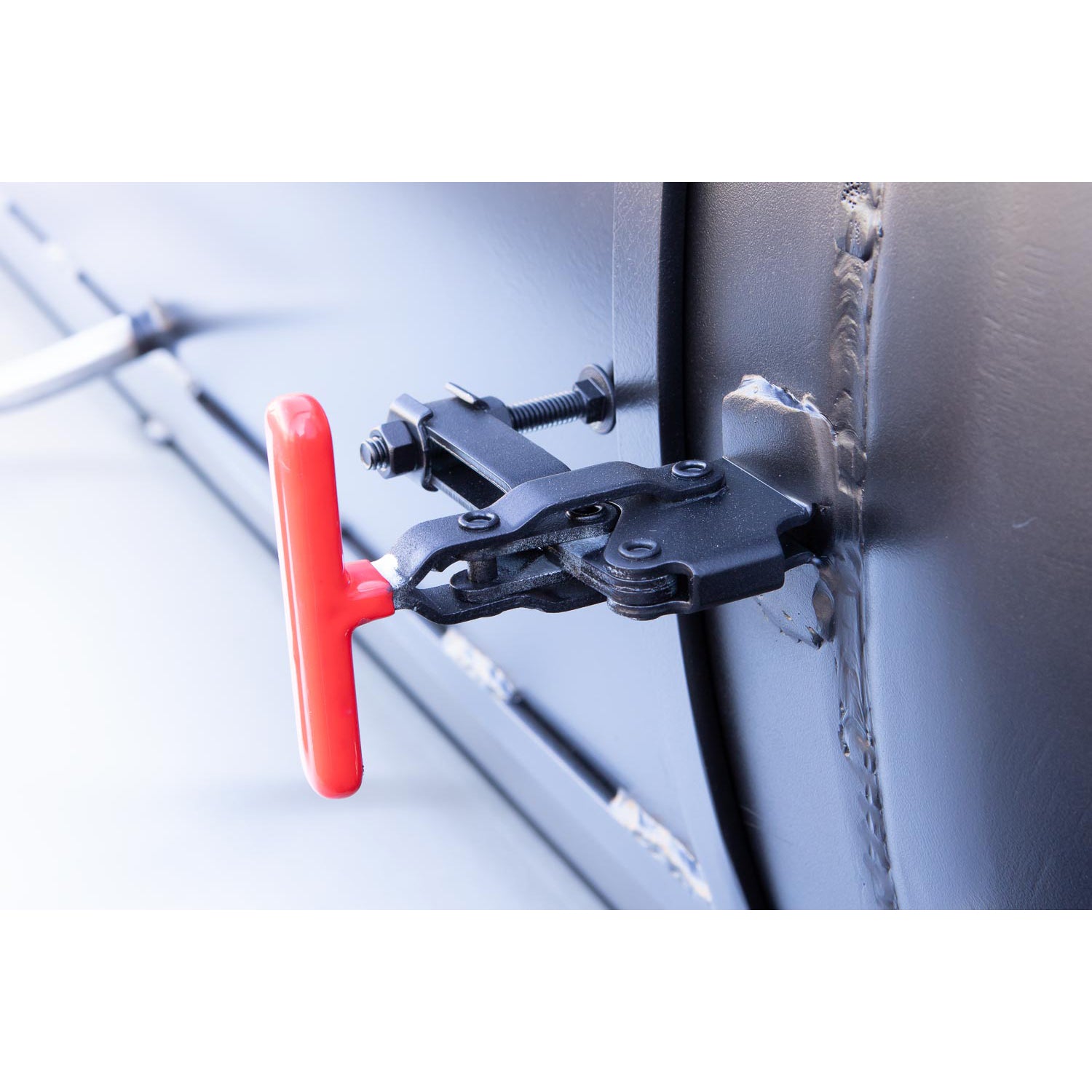

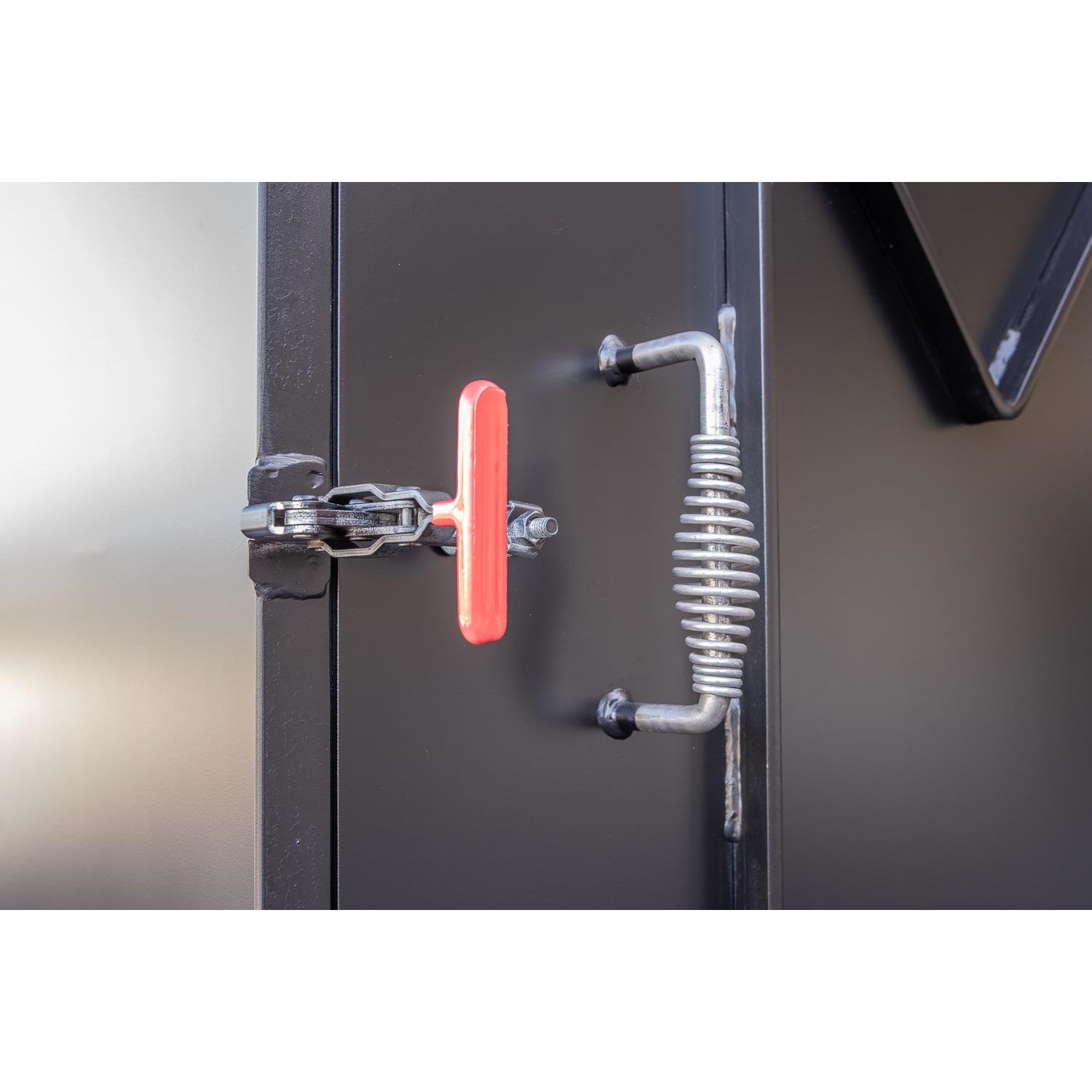

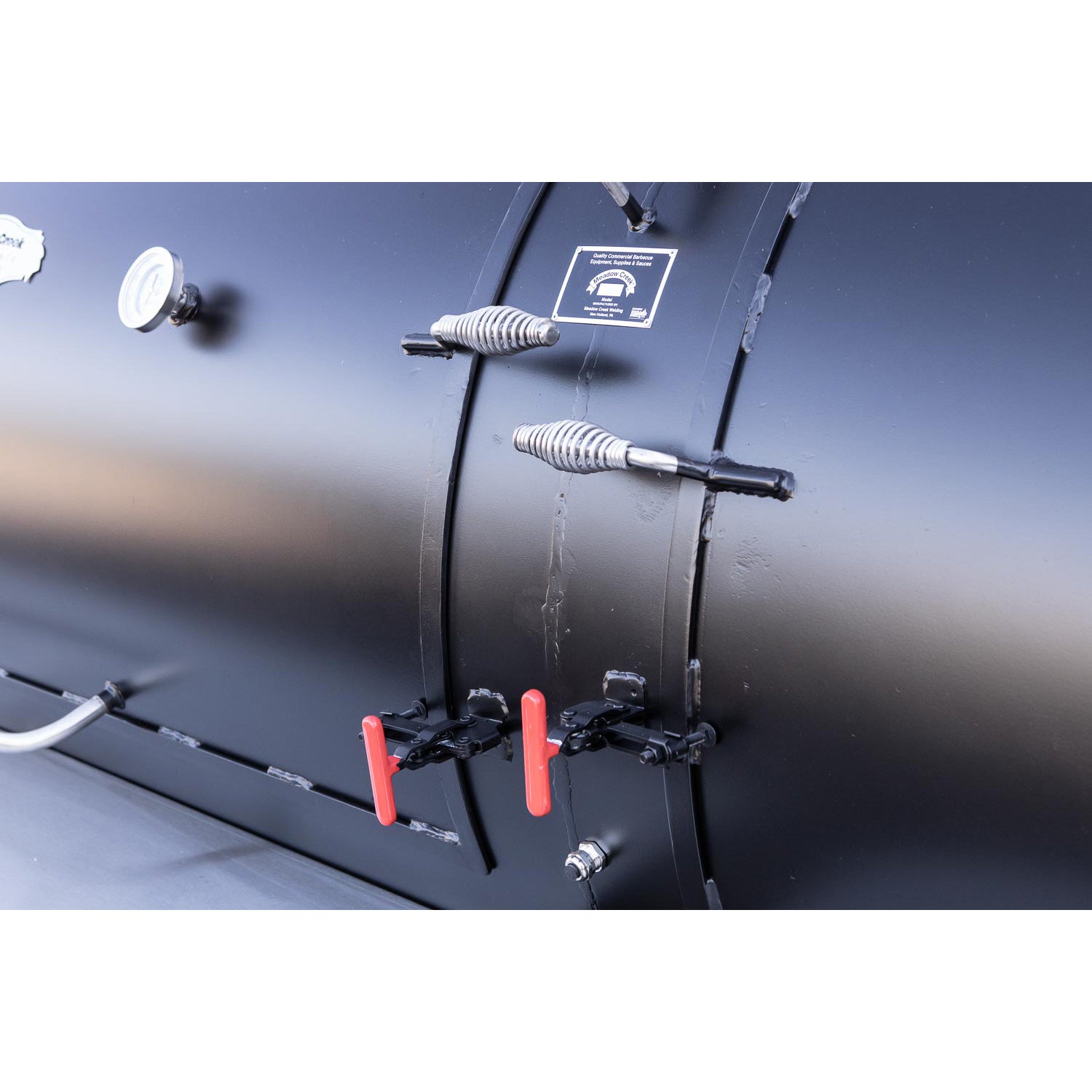

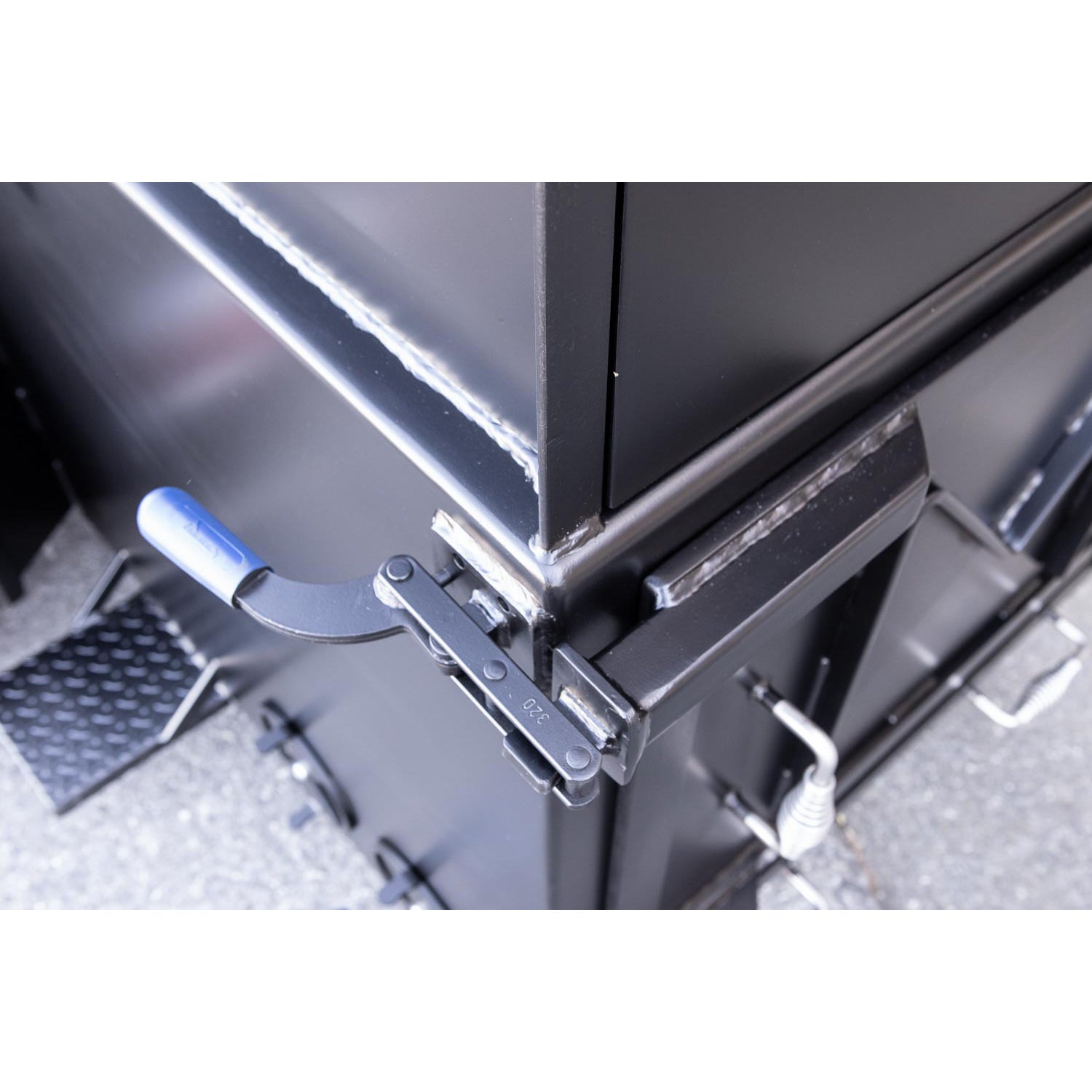

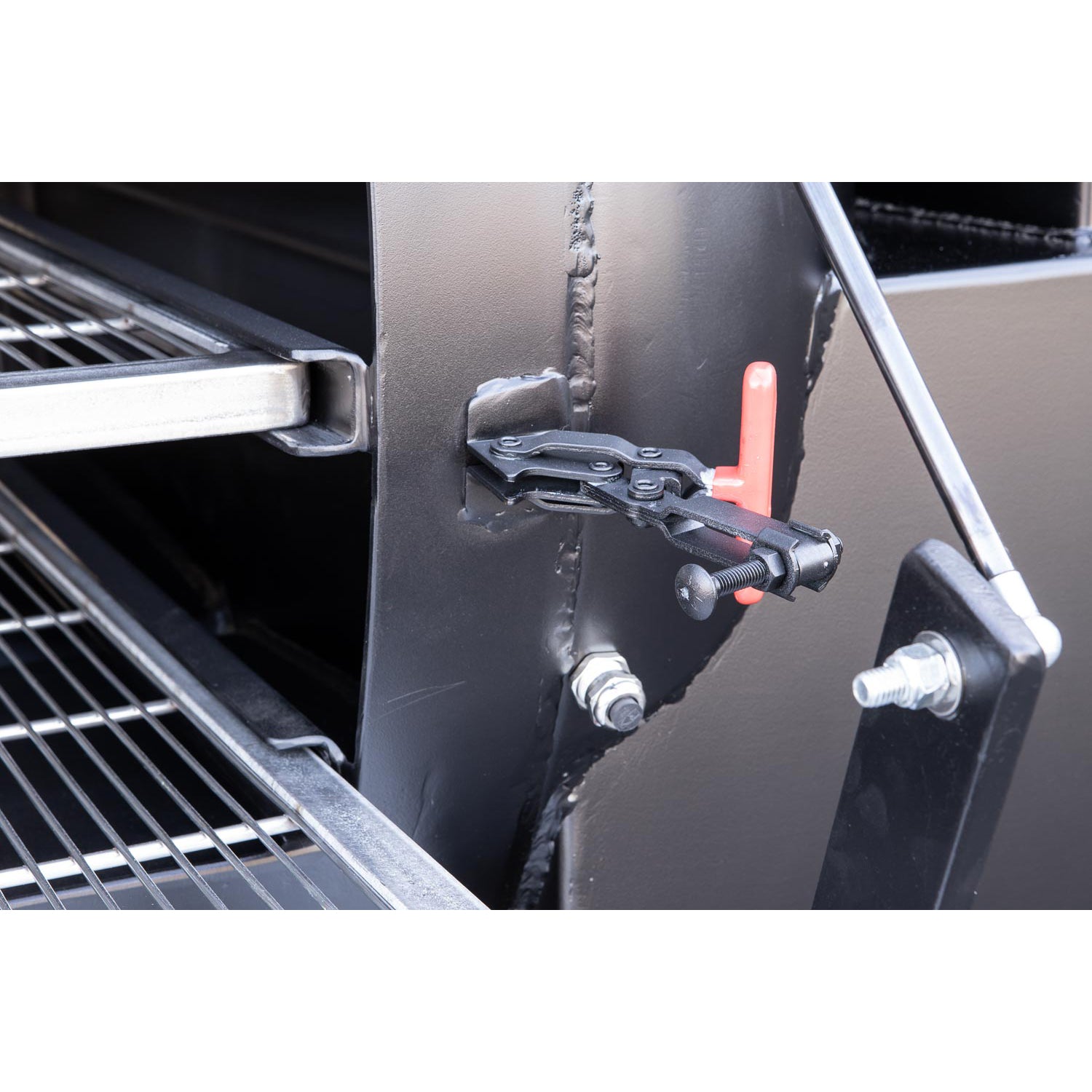

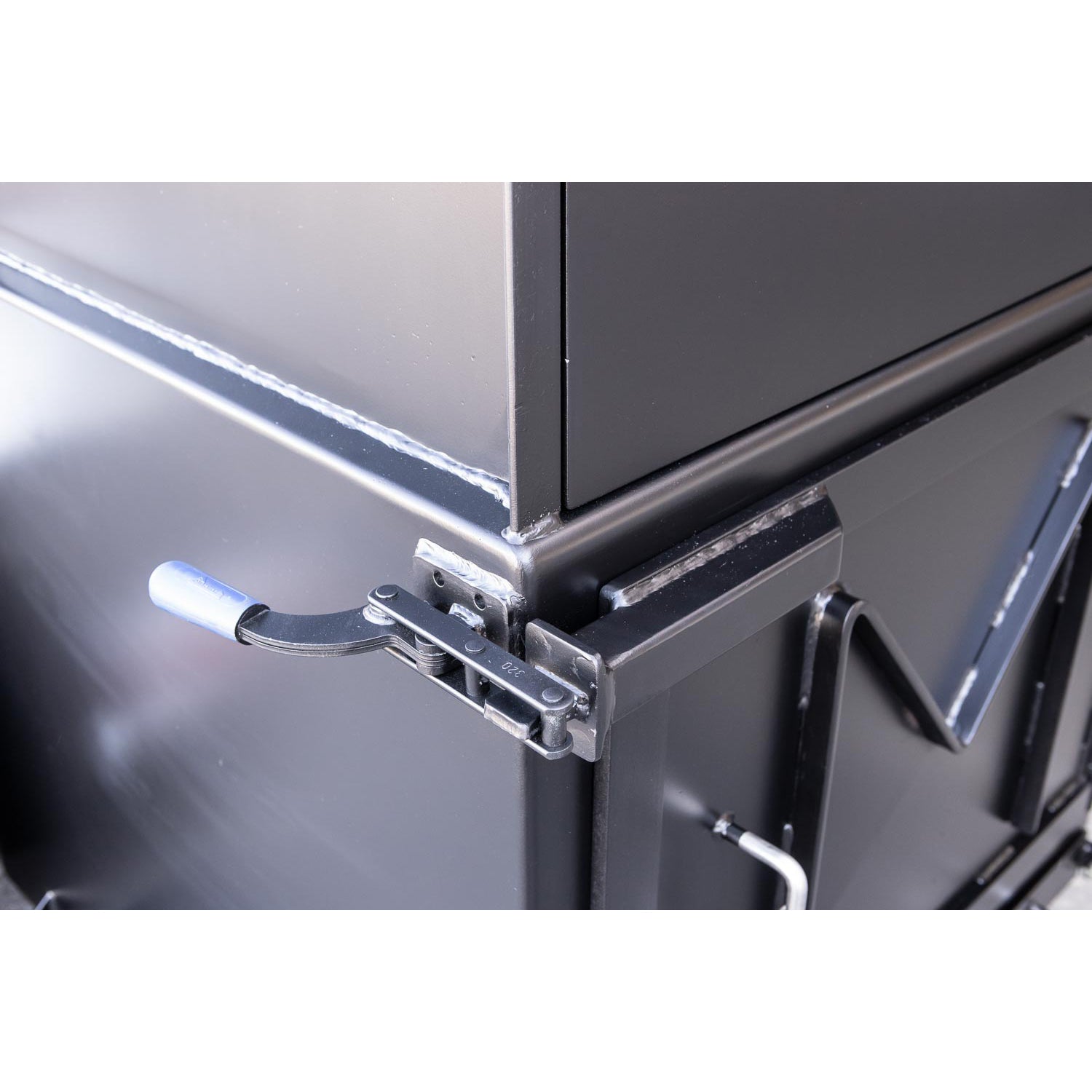

- Positive-lock latches on all doors

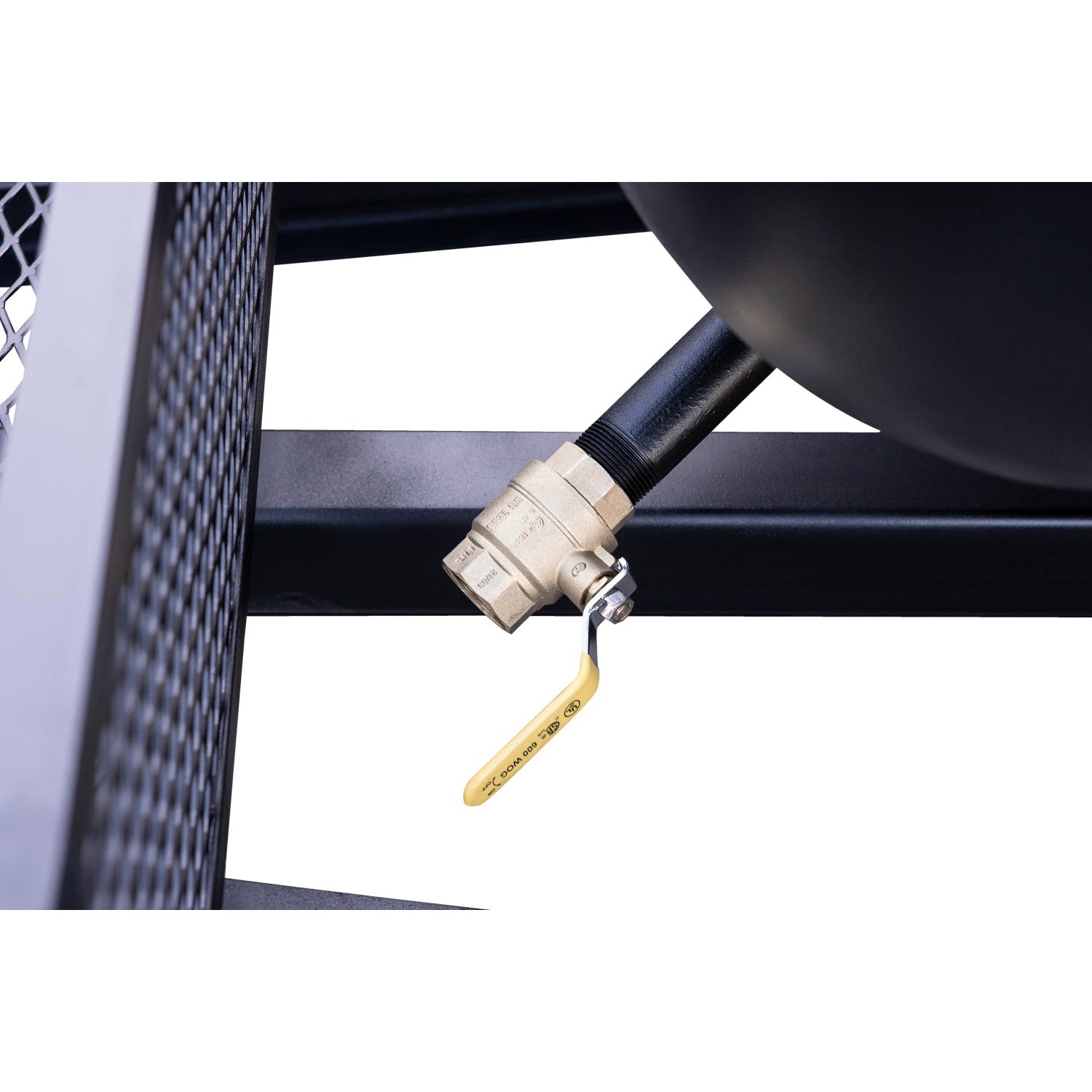

- Drain with ball valve for draining the tank

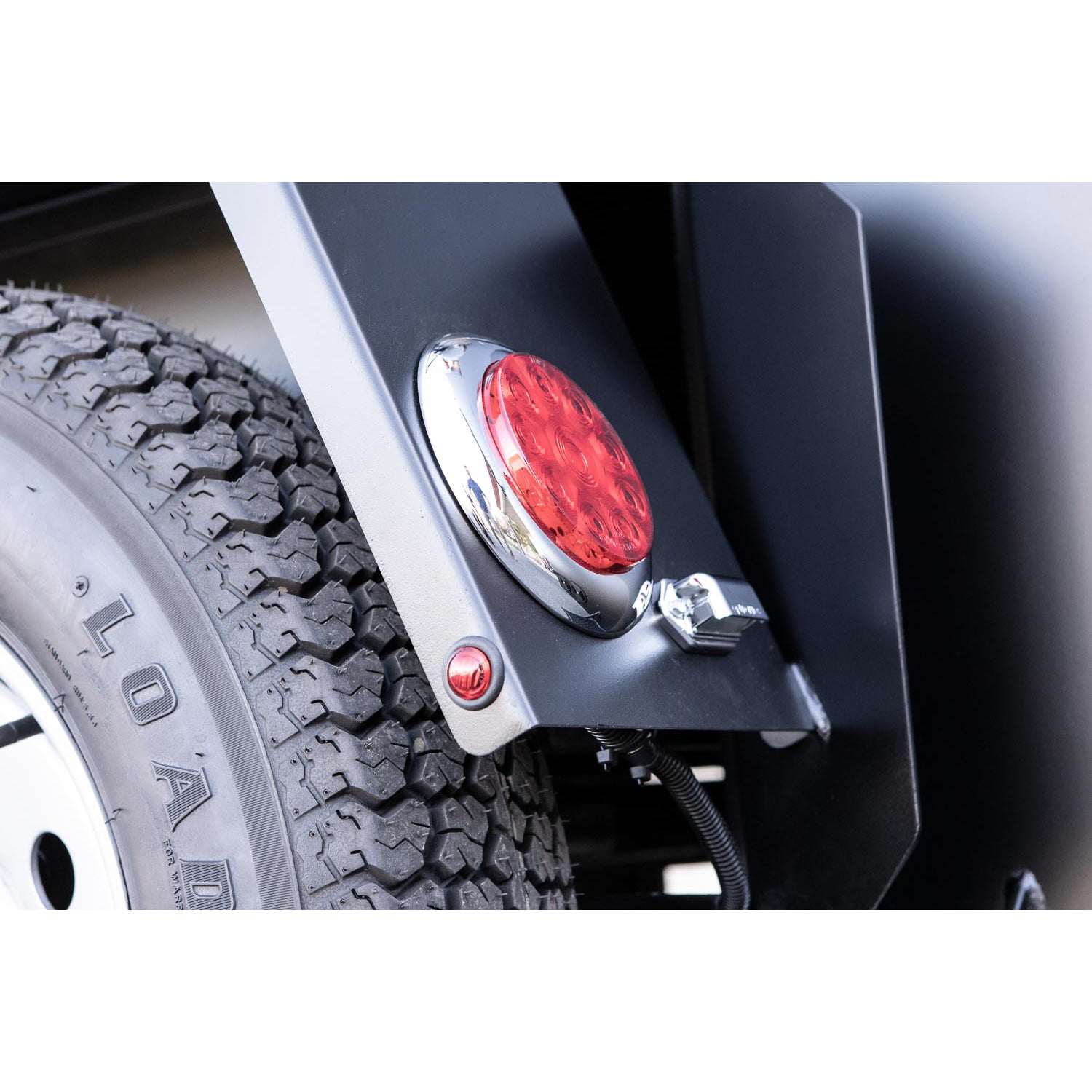

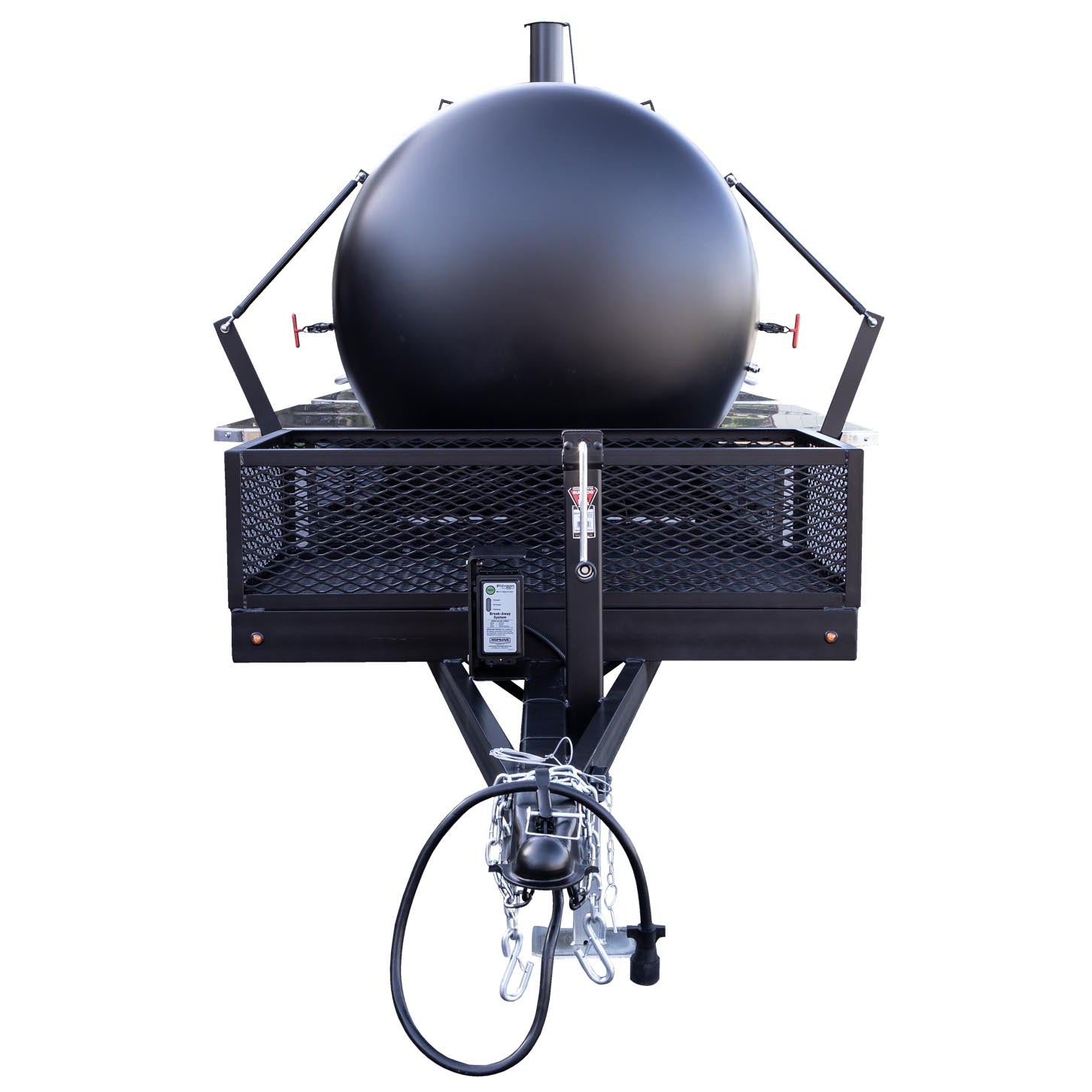

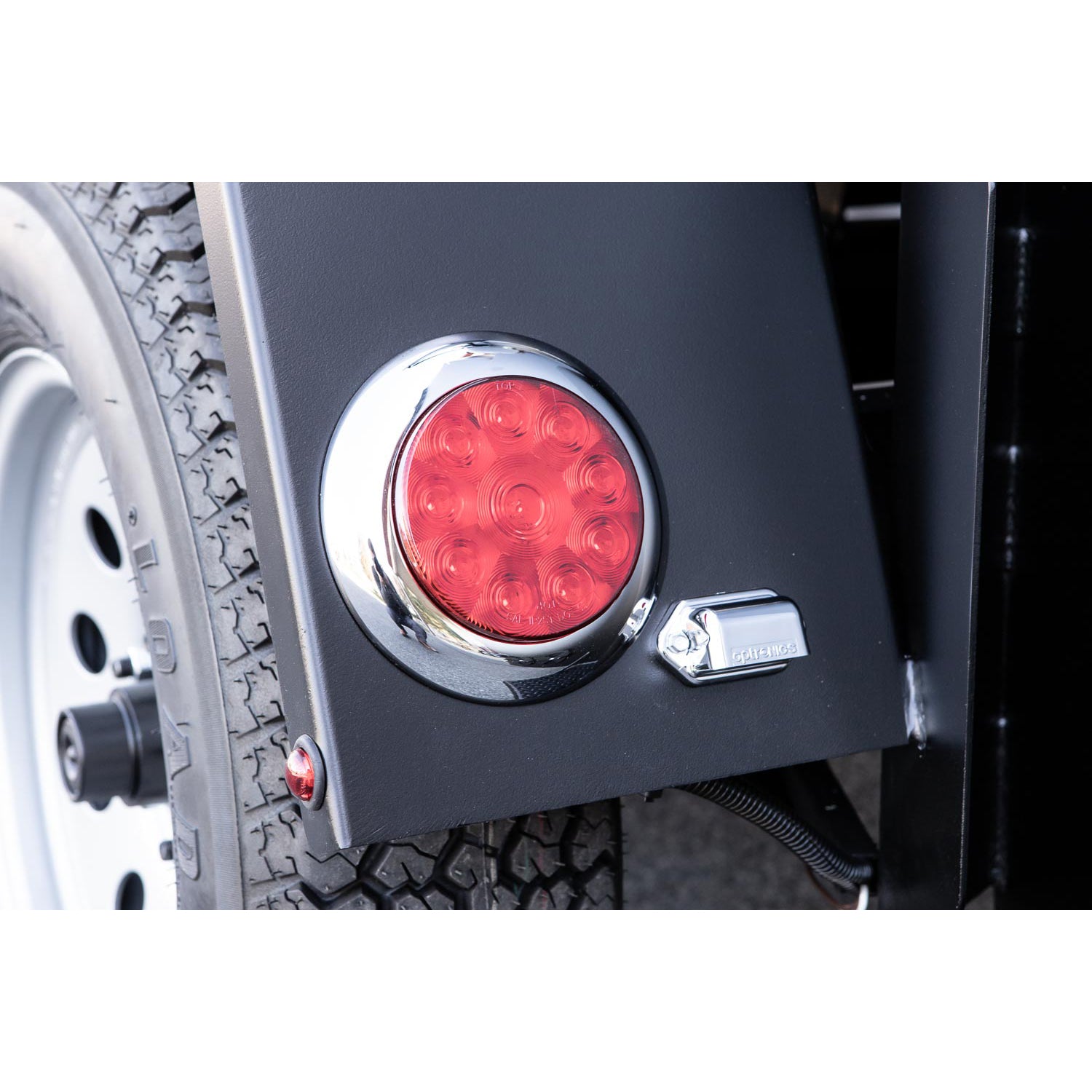

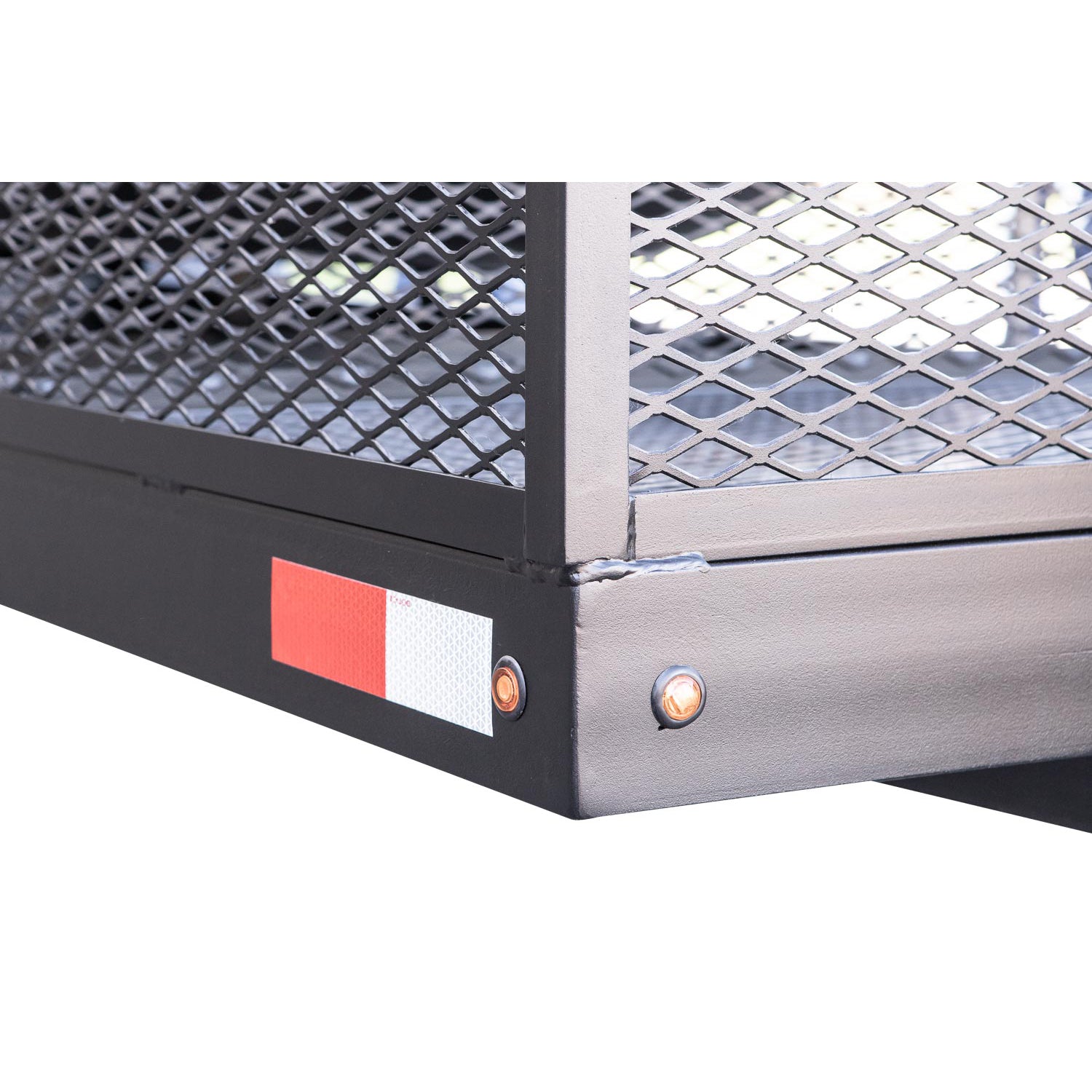

- Trailer models are built on a tubular frame and feature a 2” ball hitch and safety chains, heavy-duty wheel jack, rubber torsion axles, road tires, and DOT-compliant flush-mount LED lights, reflector strips, and VIN plate. We are a licensed trailer manufacturer and can provide a certificate of origin for trailer models.
Specifications
| Overall Dimensions | 278”l x 72”w x 97”h |
| Cooking Area | 130.81 sq. ft. (18,837 sq. in.) |
| Grate Dimensions | 2 – 33” x 63”, 4 – 39.75” x 63”, 2 – 37” x 63” |
| Space Above Top Grate | 5.5" |
| Space Between Grates | 5.5" |
| Grate Style | Wire Grid With 1/2” Spacing |
| Tank Dimensions | 41” x 168” (1000-gallon) |
| Metal Thickness on Tank | 0.25" |
| Fire Box Dimensions | 38.5” Cube (Inside: 38” x 38” x 34”) |
| Metal Thickness on Fire Box | 0.25” |
| Warming Box Dimensions | 26” x 34.25” (Inside) |
| Warming Box Grate Dimensions | 26” x 34.25” |
| Space Between Grates in Warmer | 8.5” |
| Net Weight | 5,000 lbs. |
| Capacity of Pork Butts | 178-182 |
| Capacity of Baby Back Ribs | 140-165 |
| Capacity of Spare Ribs | 100-110 |
| Capacity of Whole Briskets | 130-140 |
| Capacity of Whole Chickens | 280-290 |
Gas Assist Add On
The Taste of Wood: The Convenience of Gas
Do you love traditional wood and charcoal smokers, but wish you could “cheat” once in a while? How would you like to throw away your weed burner and preheat your smoker with the flip of a switch? Or start an all-night cook and go to sleep, knowing your temp will stay rock-solid even after the coals burn down?
Meadow Creek’s revolutionary gas-assist option turns a TS or BX smoker into a shape-shifting jack-of-all-trades. Driven by a powerful Wayne burner, it can preheat your smoker, light your wood or charcoal, and lock in your pit temp within 5 degrees of your set point.
It’s like having two pits in one. Smoke the traditional way with just coals and wood, cook on gas alone, or perfect your favorite hybrid approach for the best of both worlds. You’ve never smoked like this before.
Features
- Weatherproof housing
- Electronic thermostat with digital readout
- Connects to 110-volt power with a regular extension cord
- Low-pressure gas regulator and gas quick attach
- Connects to a regular LP gas grill tank
- Maintains consistent temperature automatically
Videos
Lead Time & Shipping
Meadow Creek products are made to order, with an estimated 2–4 week lead time.
All Meadow Creek products ship via freight. Shipping is calculated using flat-rate tiers based on product weight. Large trailers require a custom freight quote — we’ll contact you with the rate before finalizing your order.
