General Information

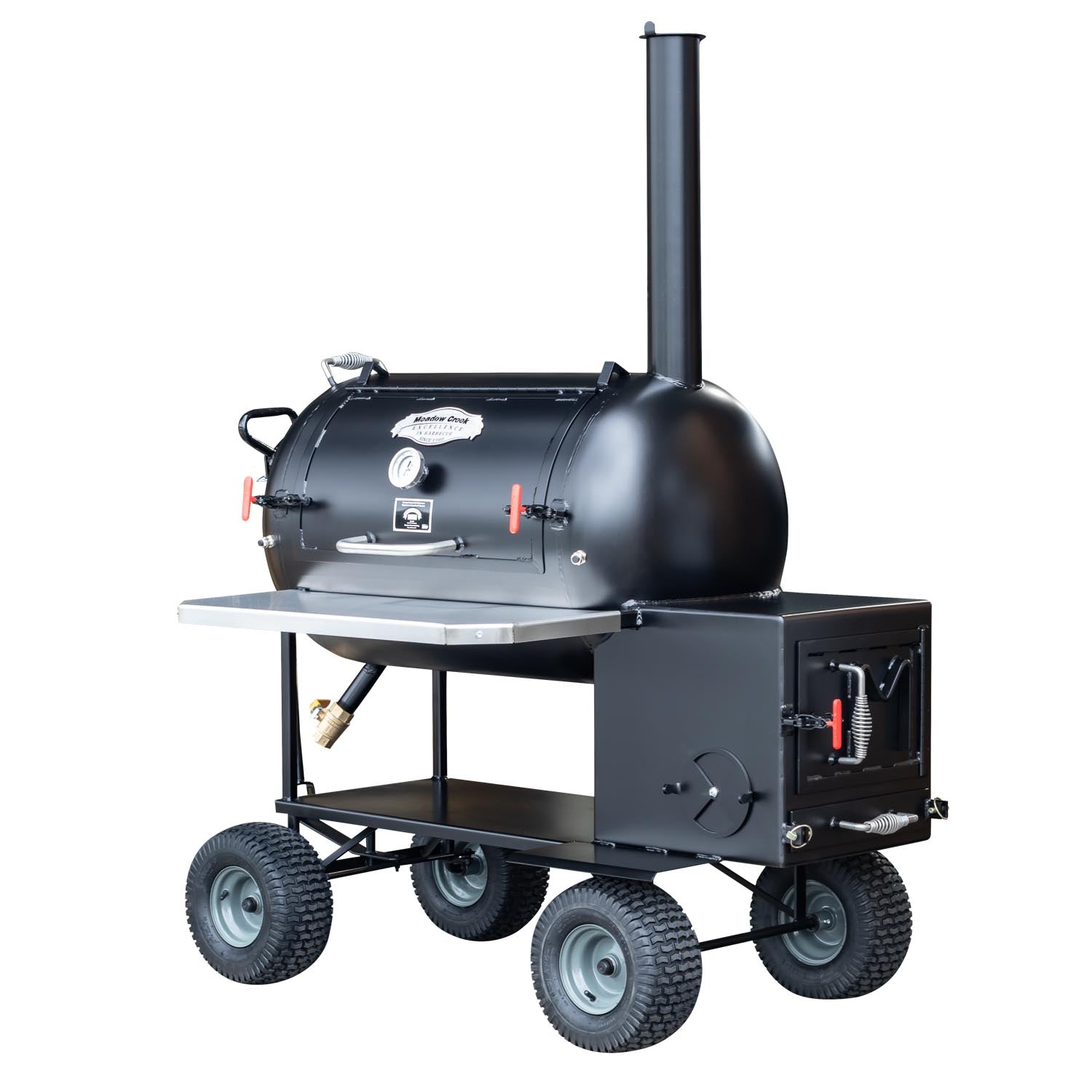

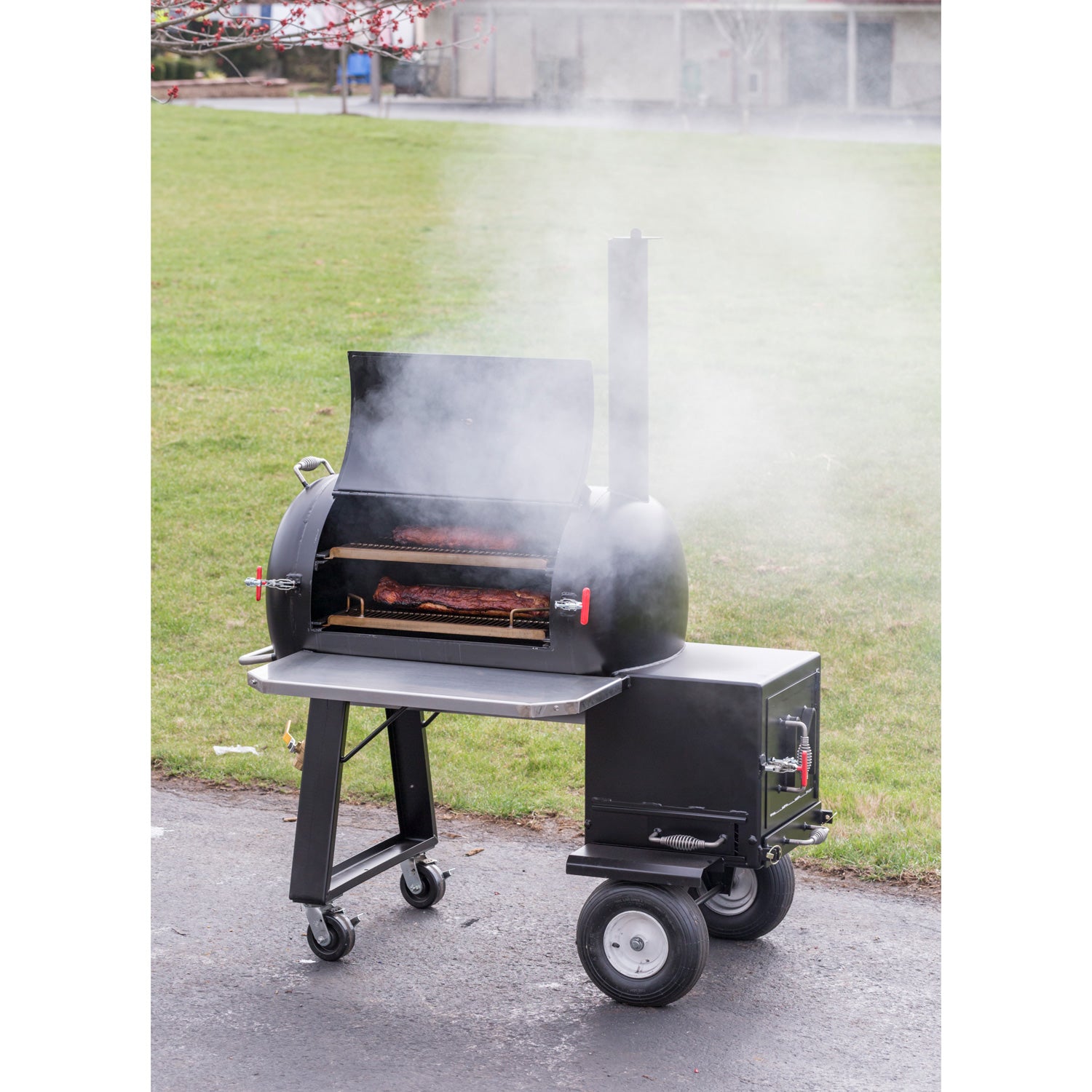

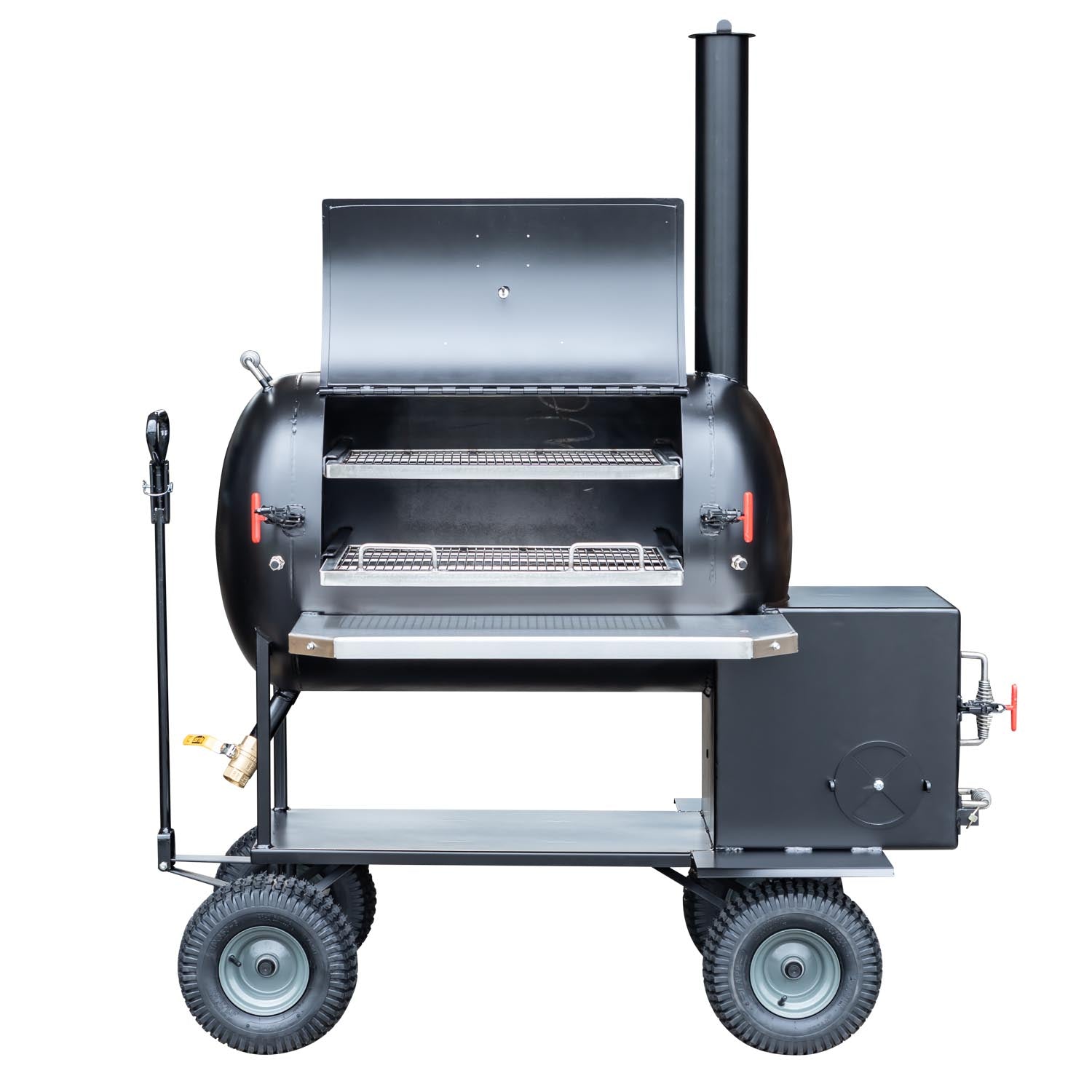

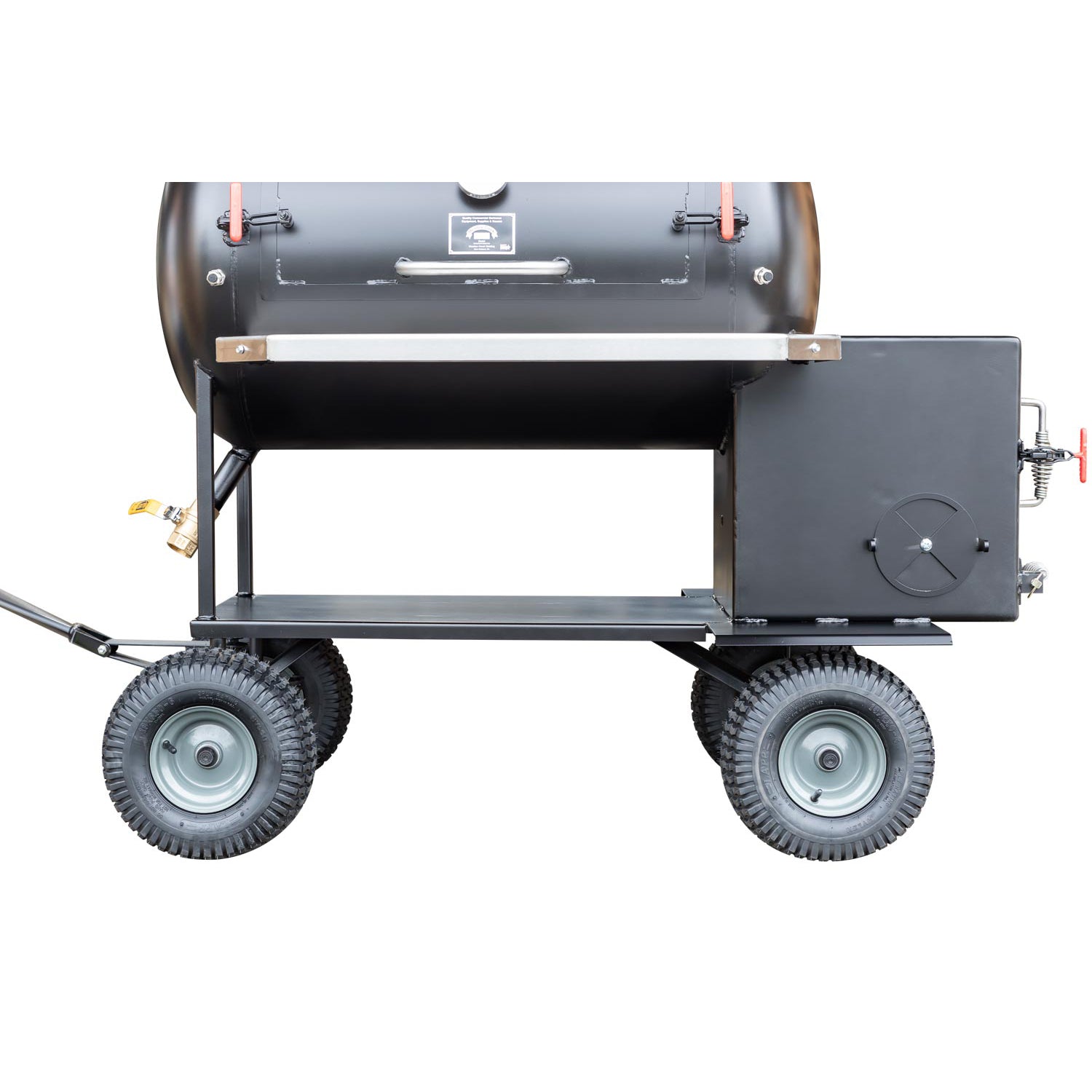

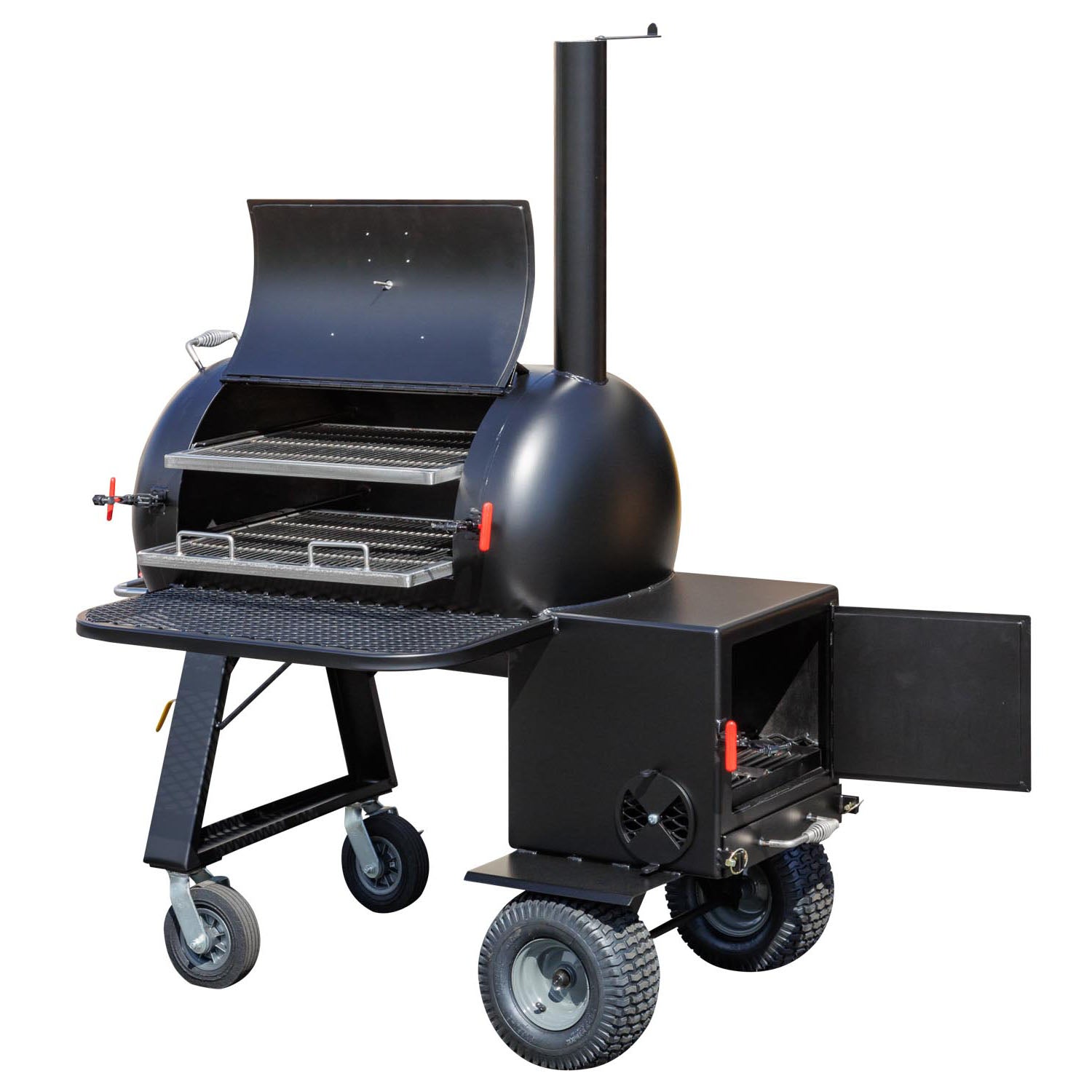

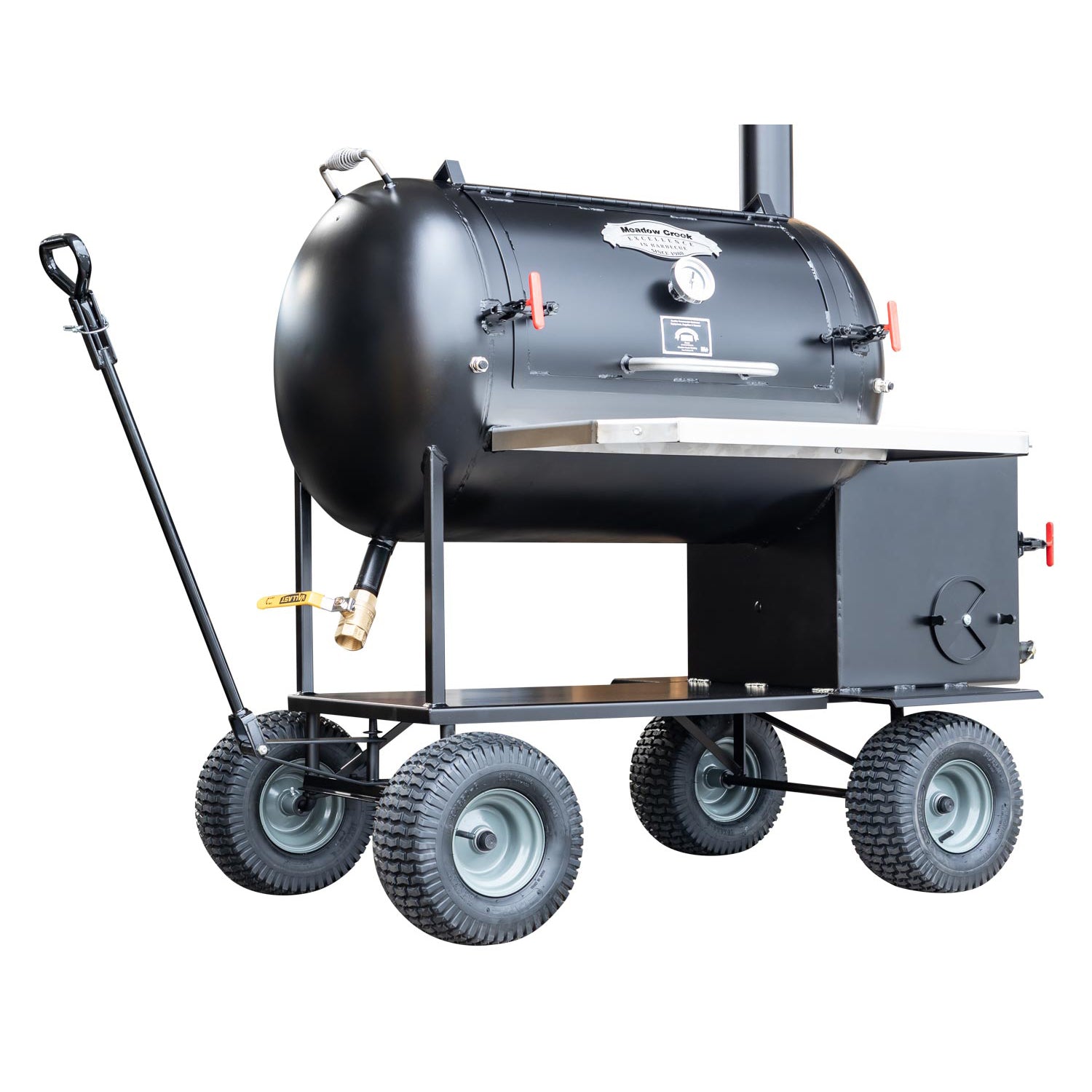

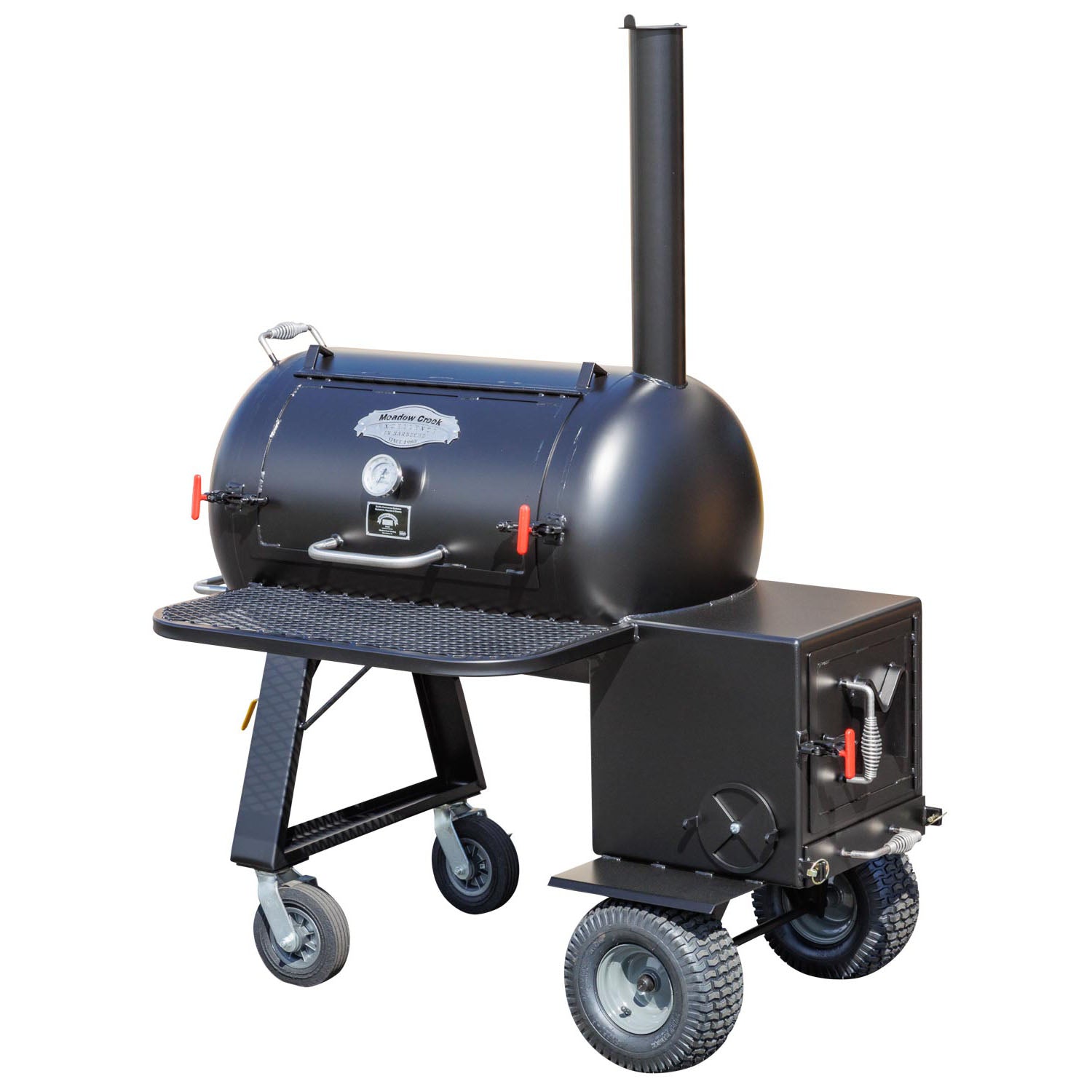

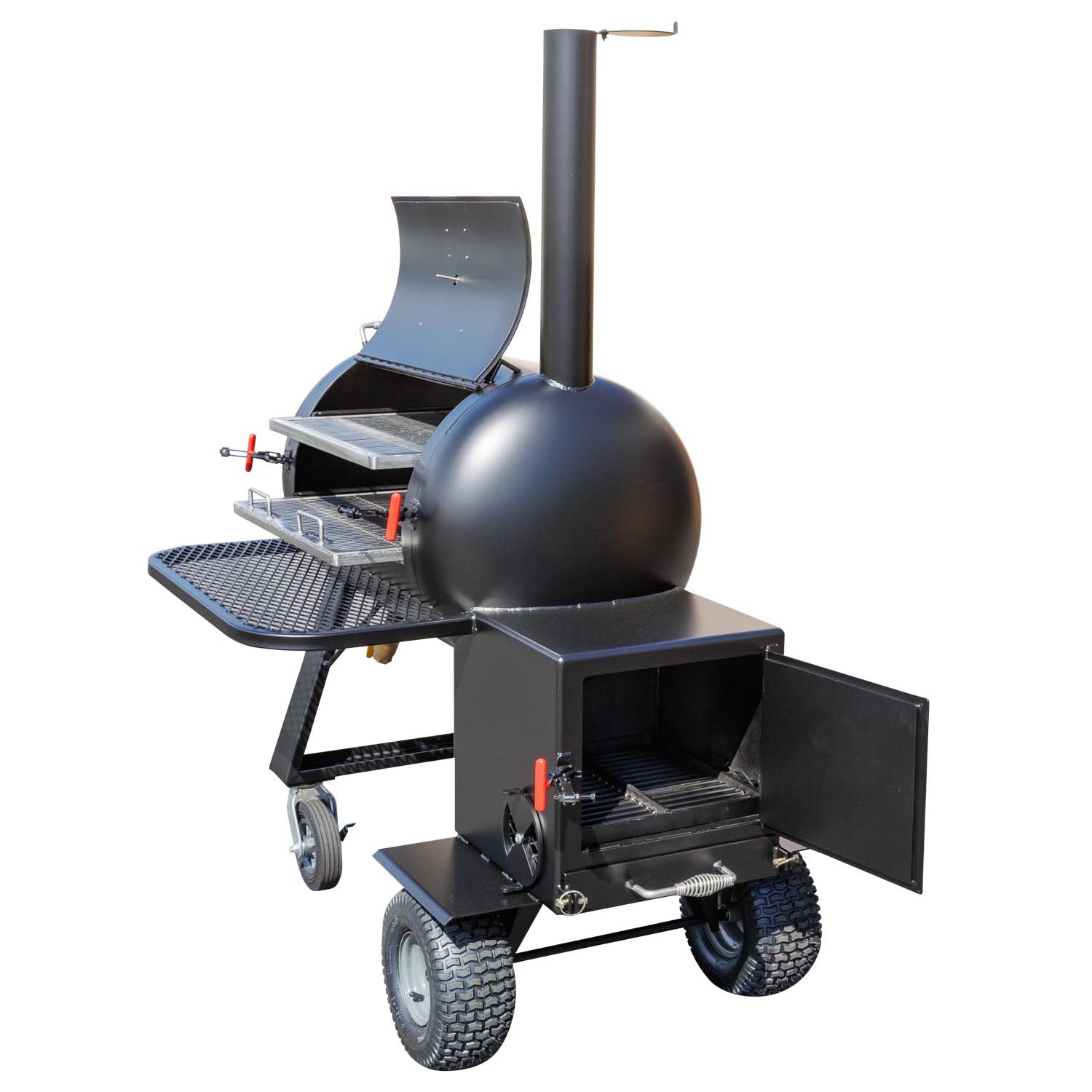

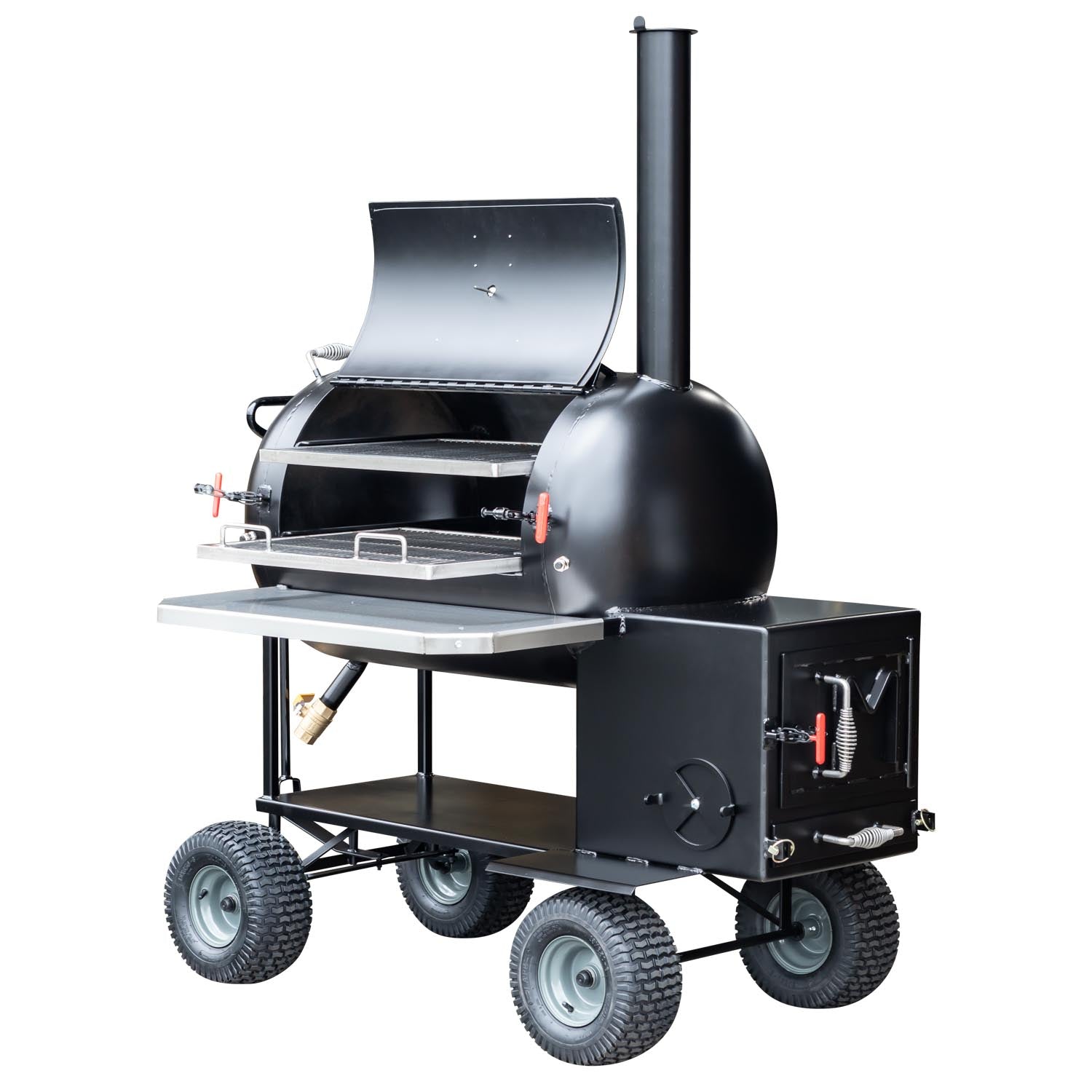

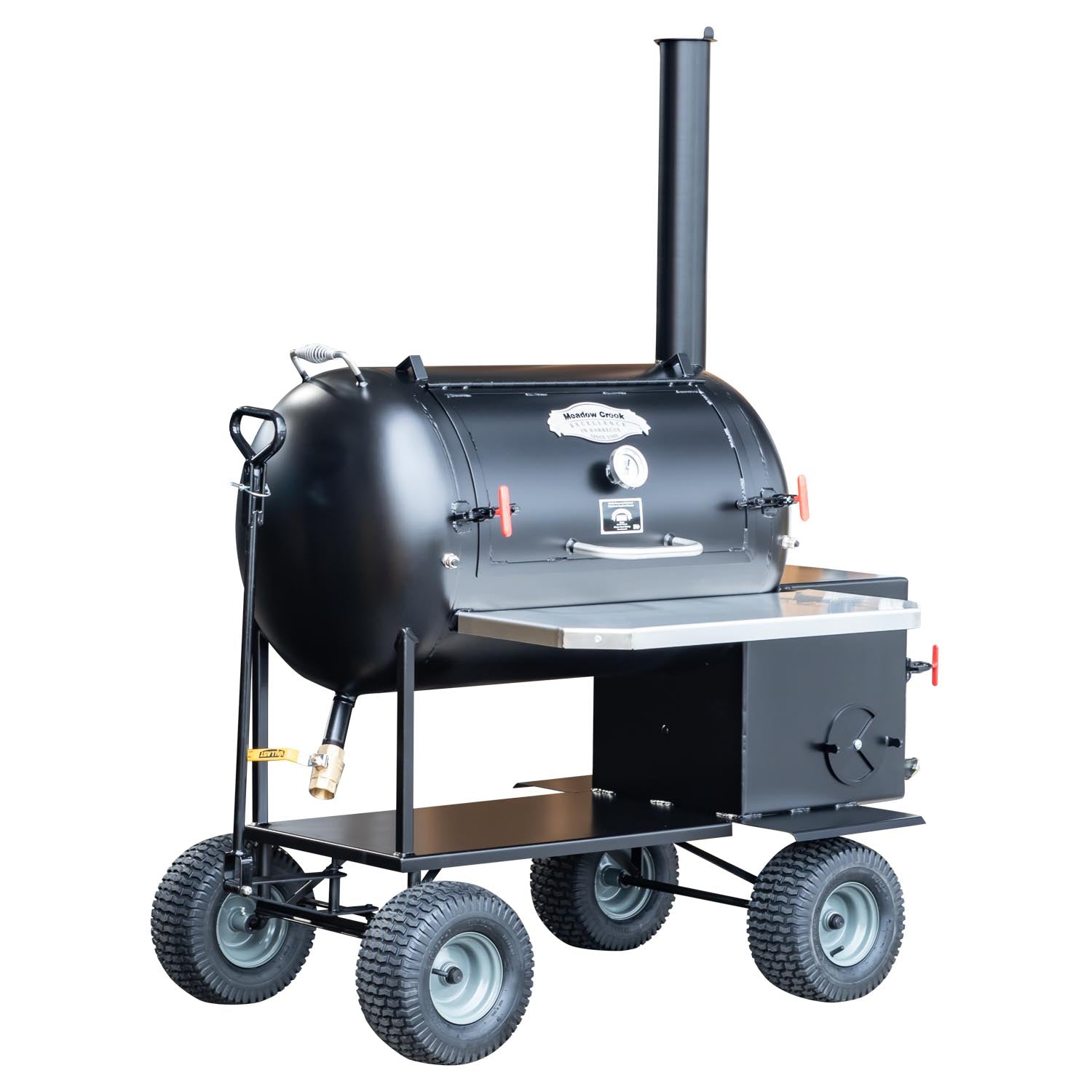

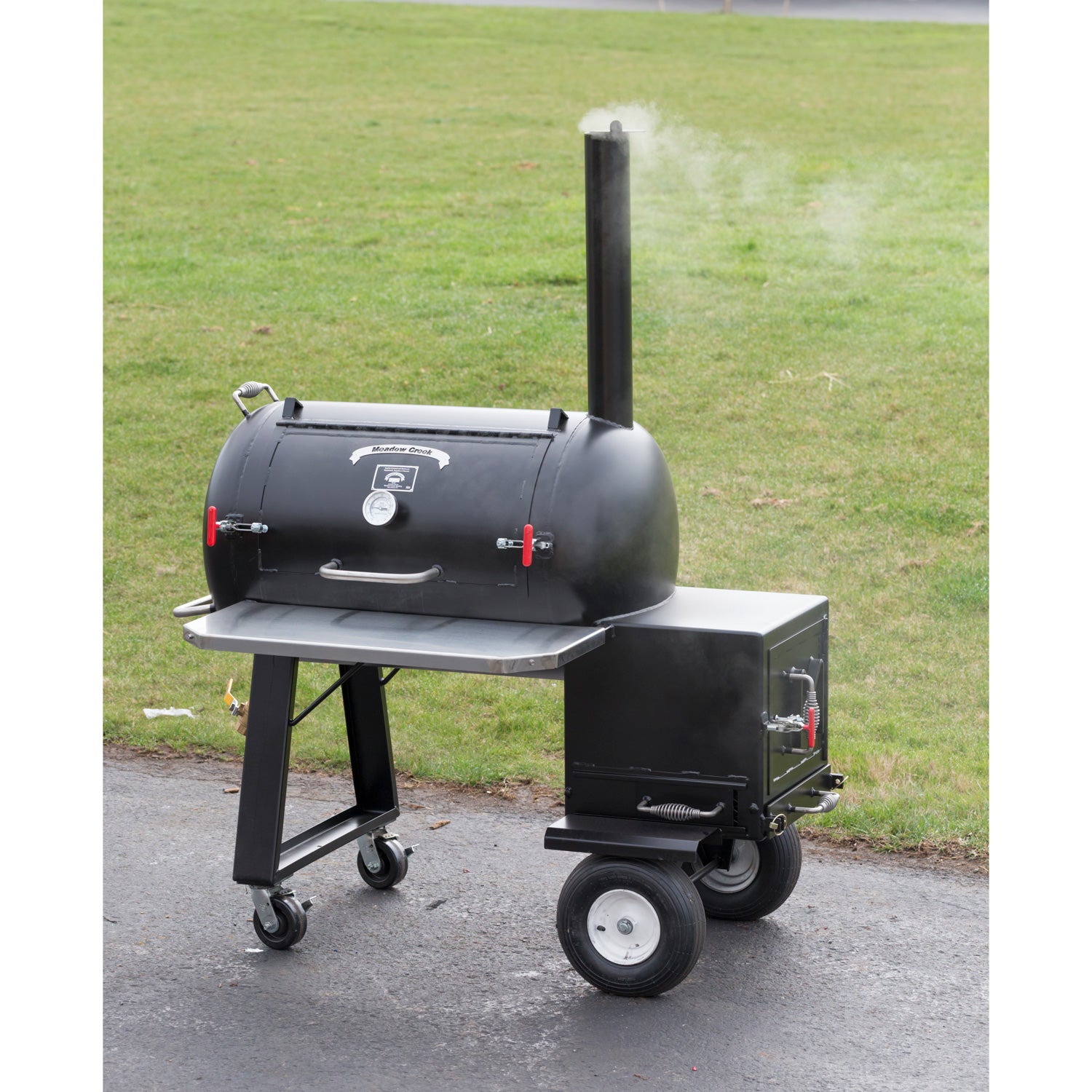

The Meadow Creek TS70P is an offset smoker for backyard or competition use. Like all of Meadow Creek’s tank smokers, the TS70P stick burner is made from a heavy steel tank and is equipped with two slide-out stainless steel grates that never rust for many years of enjoyable cooking. Reverse flow draft makes it easy to maintain a consistent and more even temperature in the smoking chamber.
If you like water smoking, the built-in water pan holds water or apple juice in the bottom of the smoking chamber to help keep your meat from drying out. After you’re done, conveniently drain all the moisture out of the bottom through the handy drain spout.
Features
- Reverse flow draft

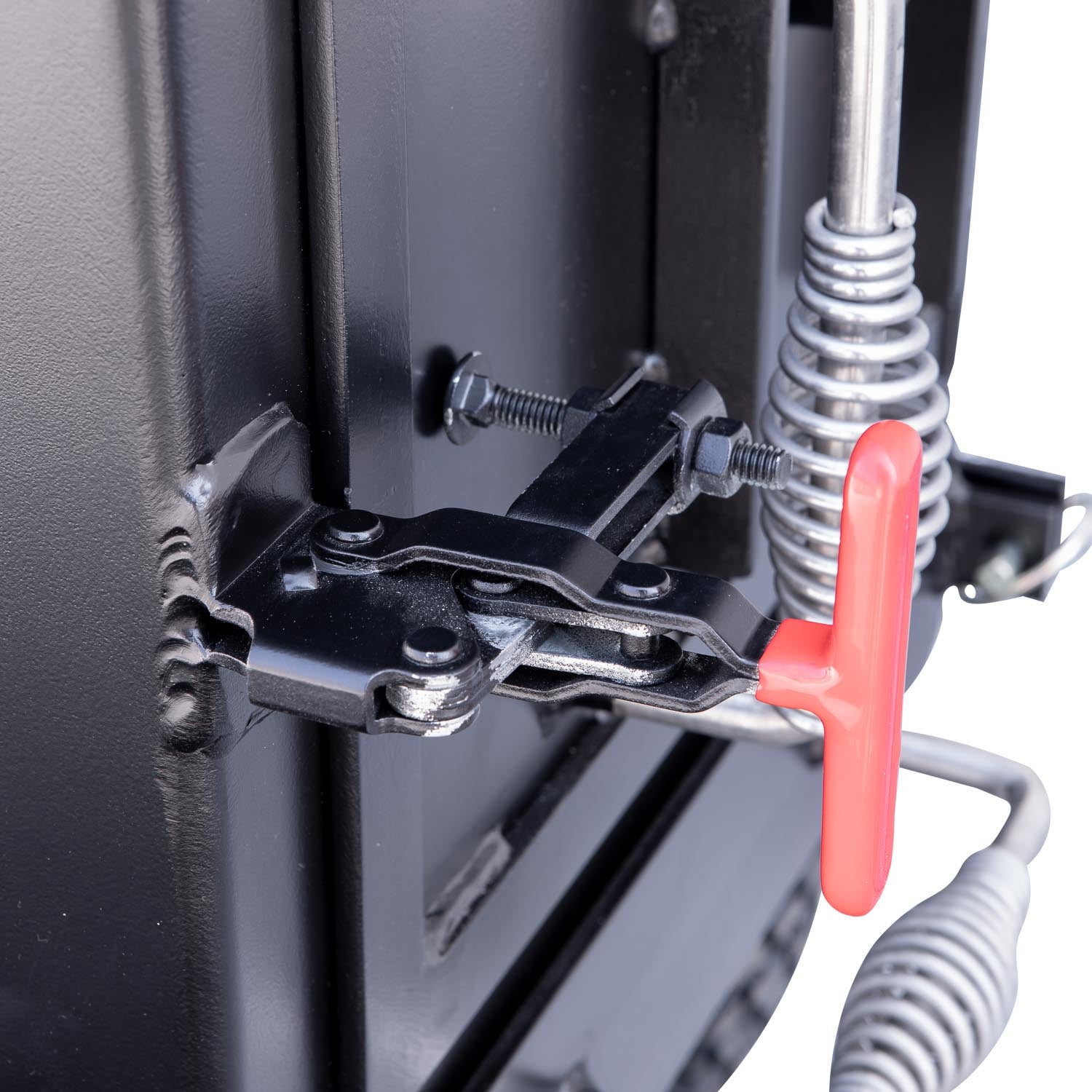

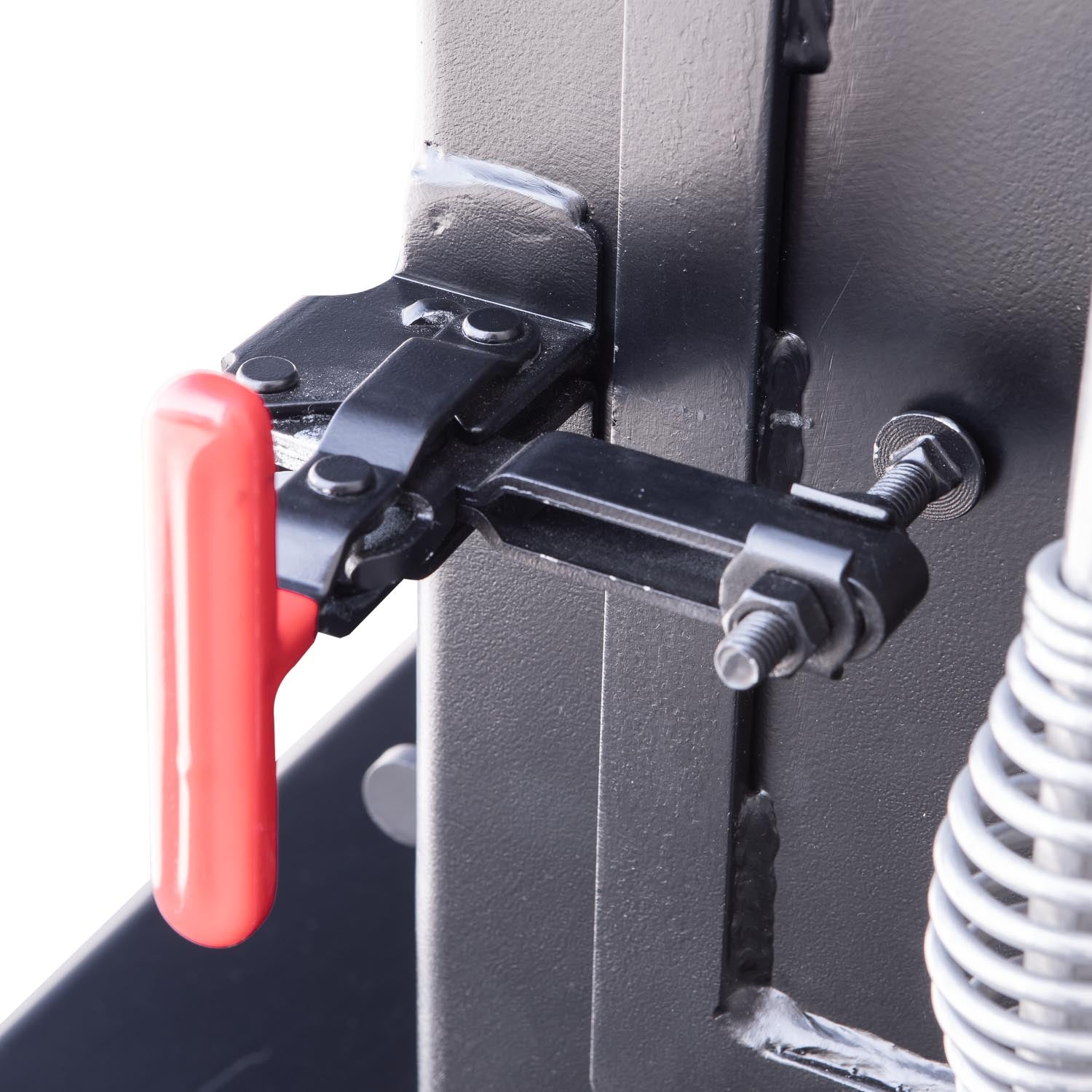

- Positive-lock latches on all doors

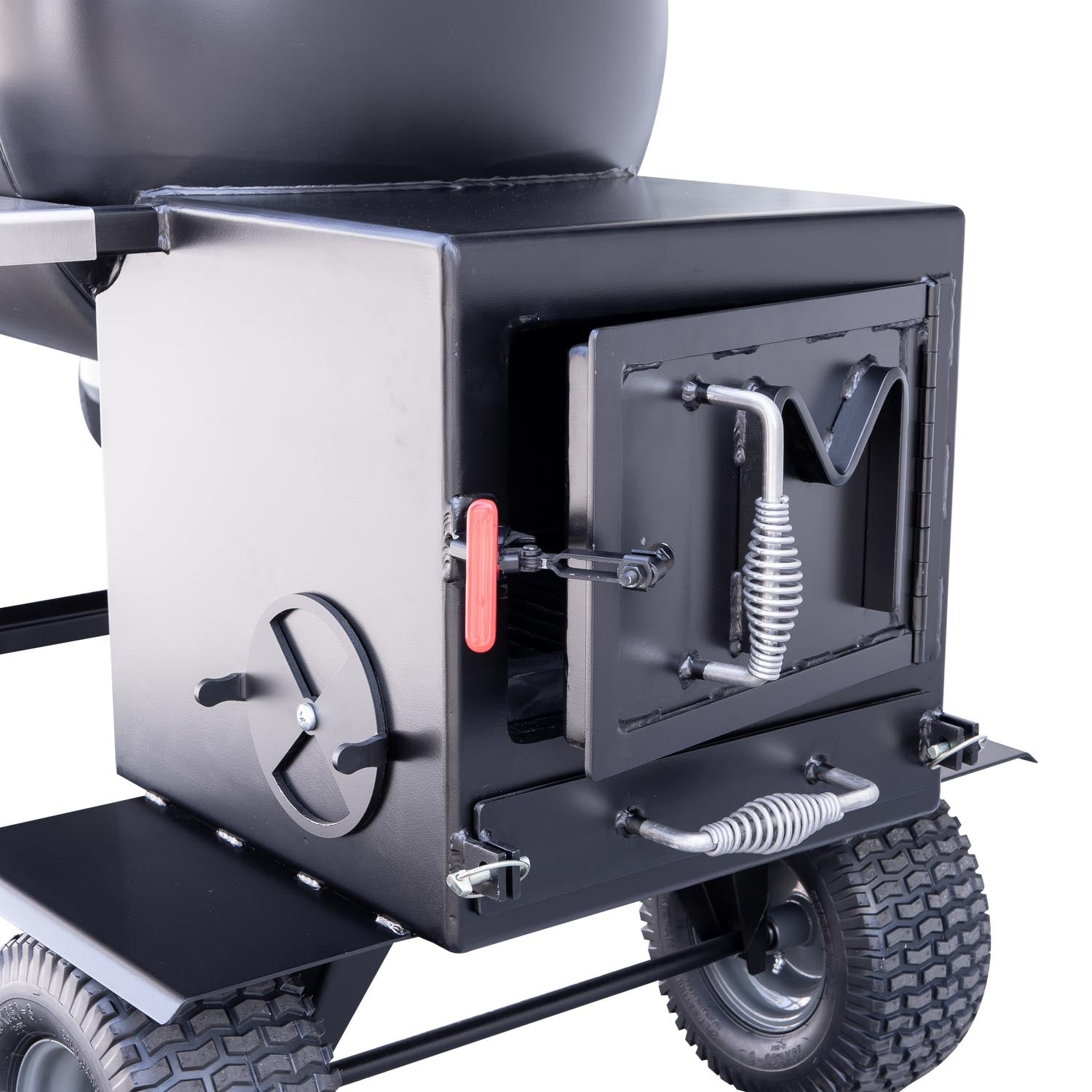

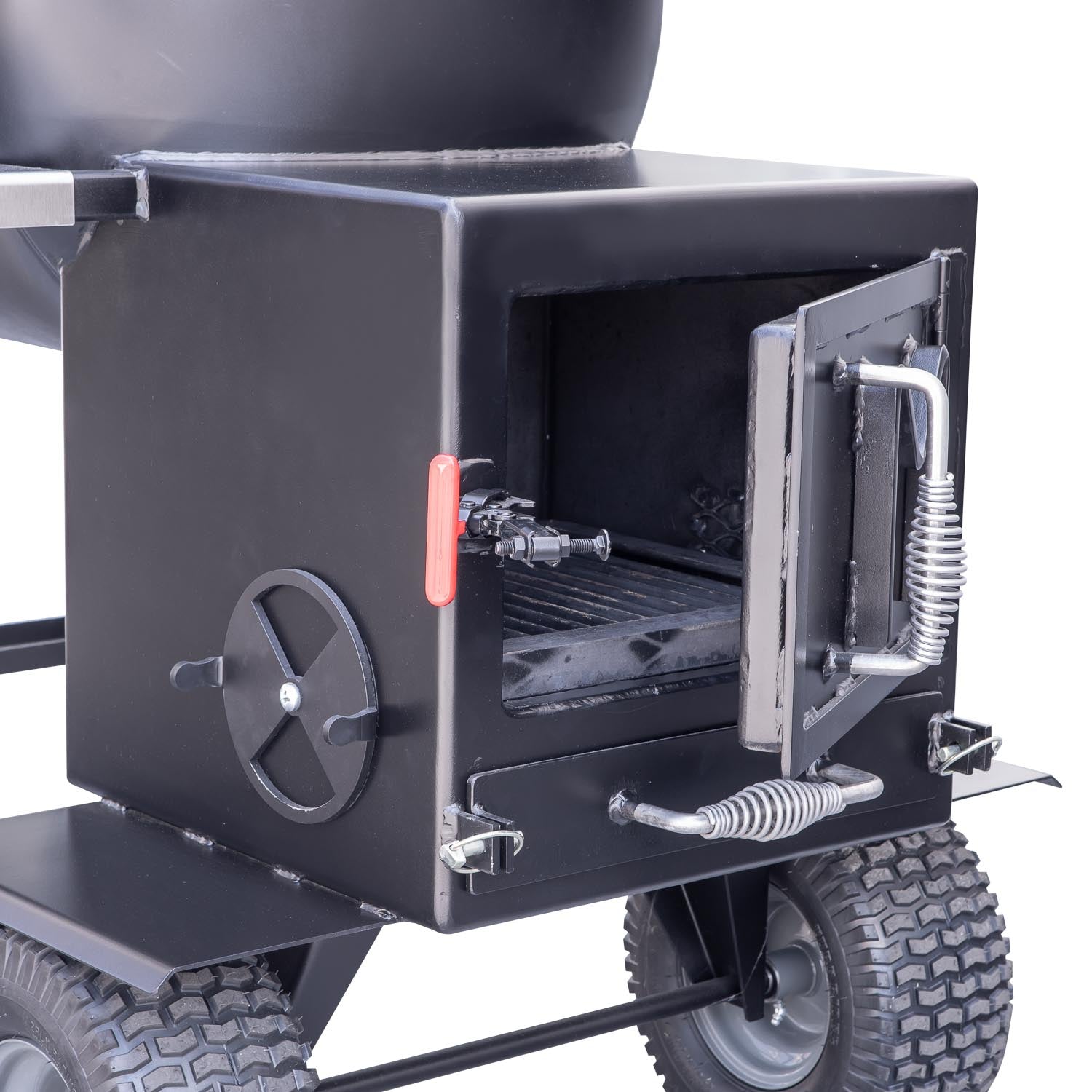

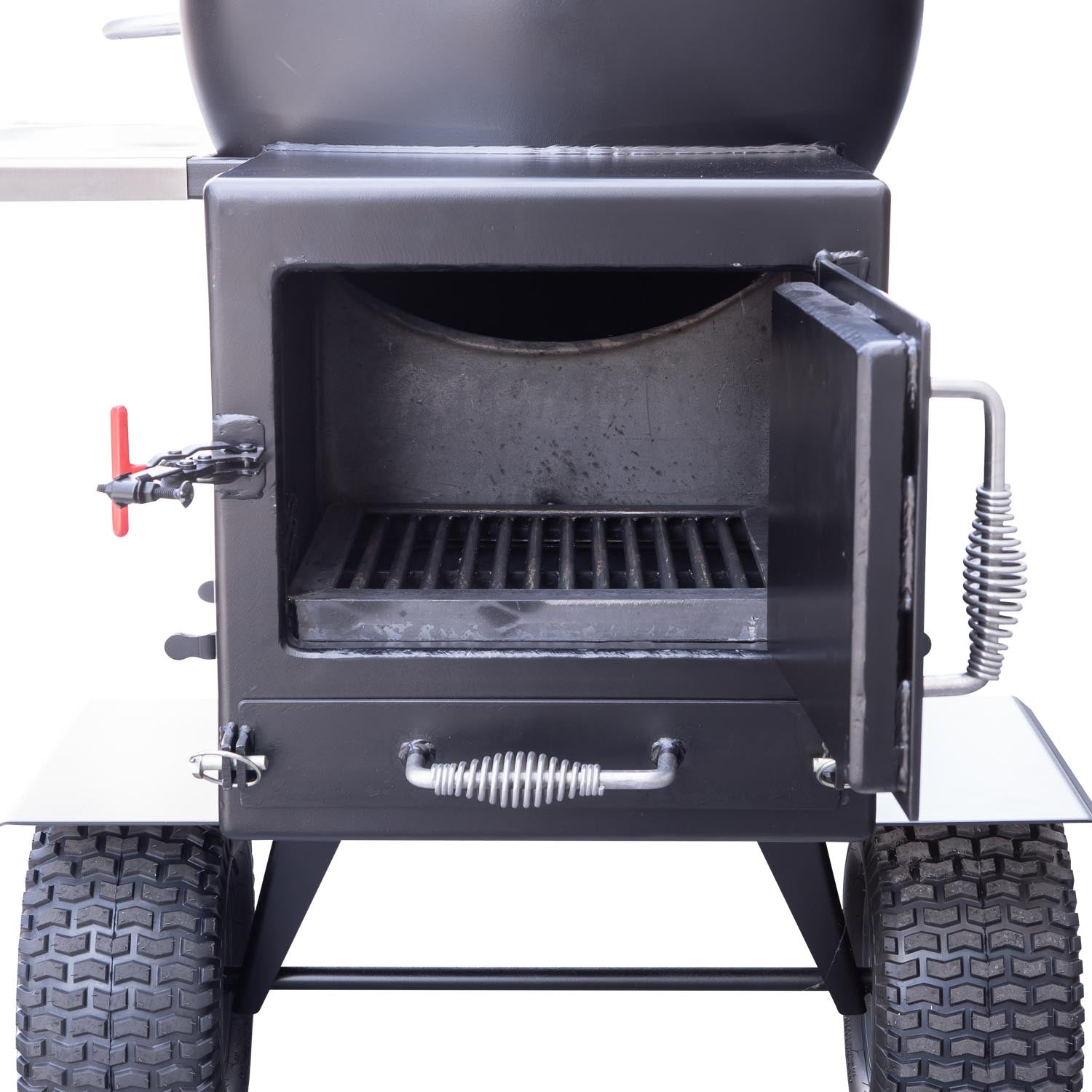

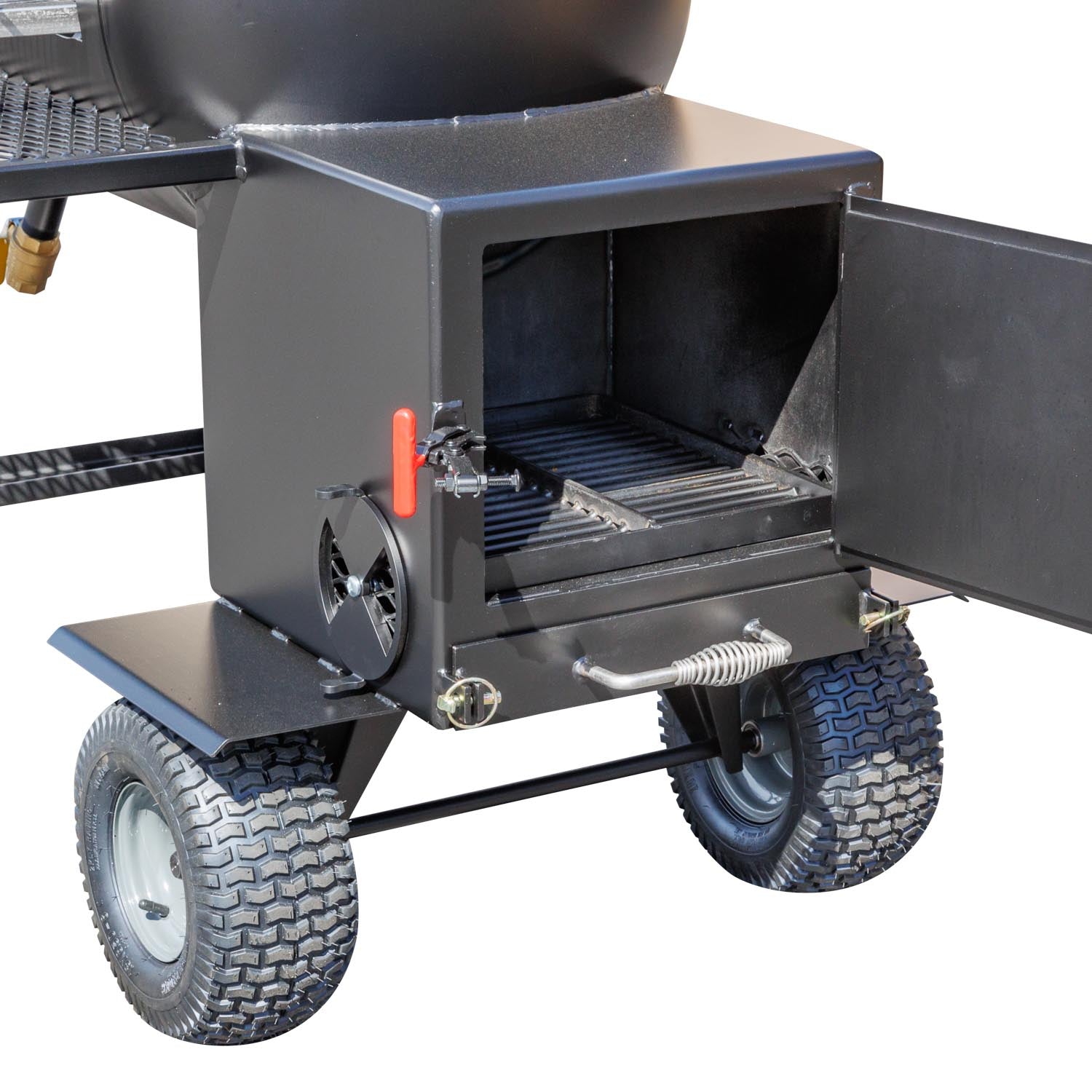

- Grate in firebox with slide-out ash pan

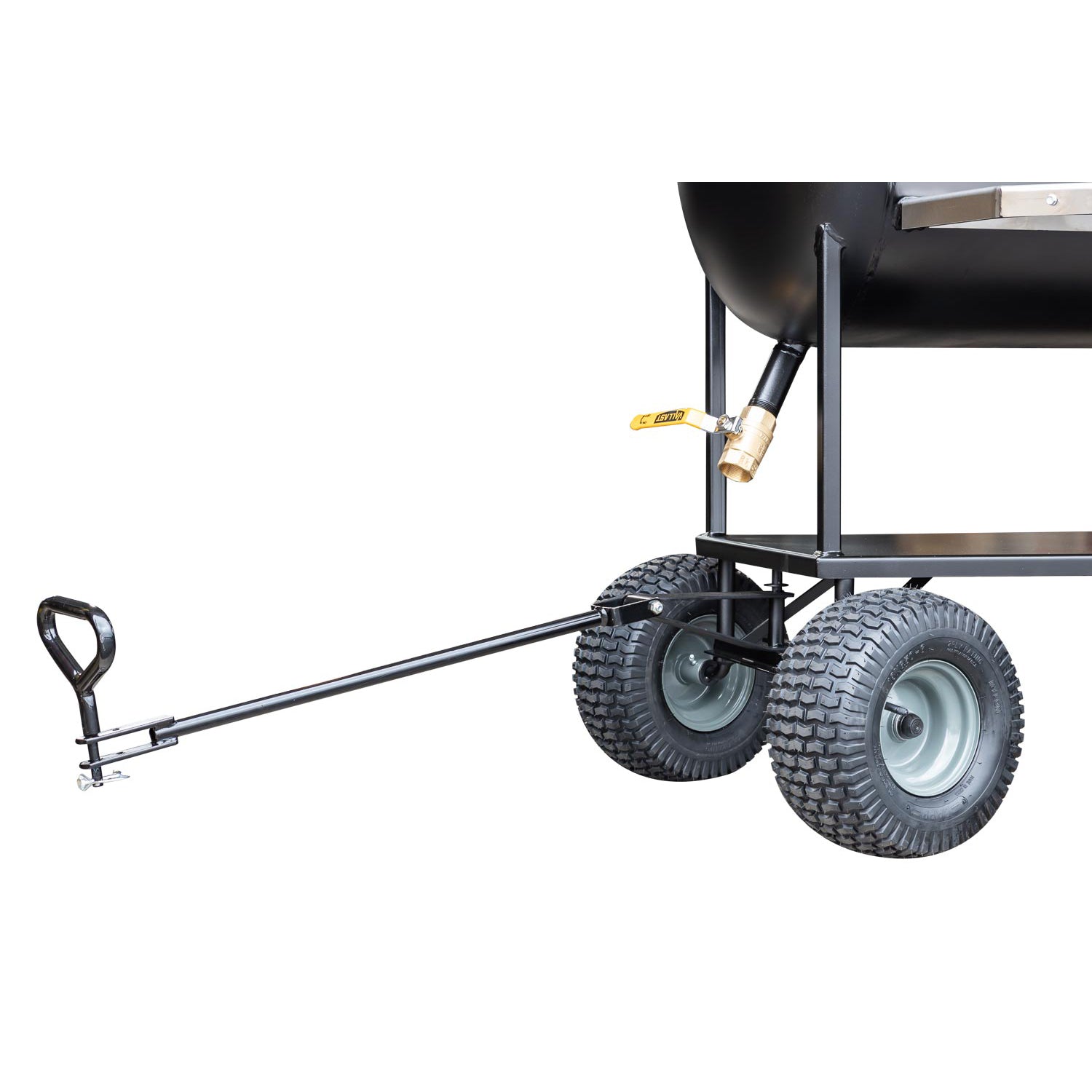

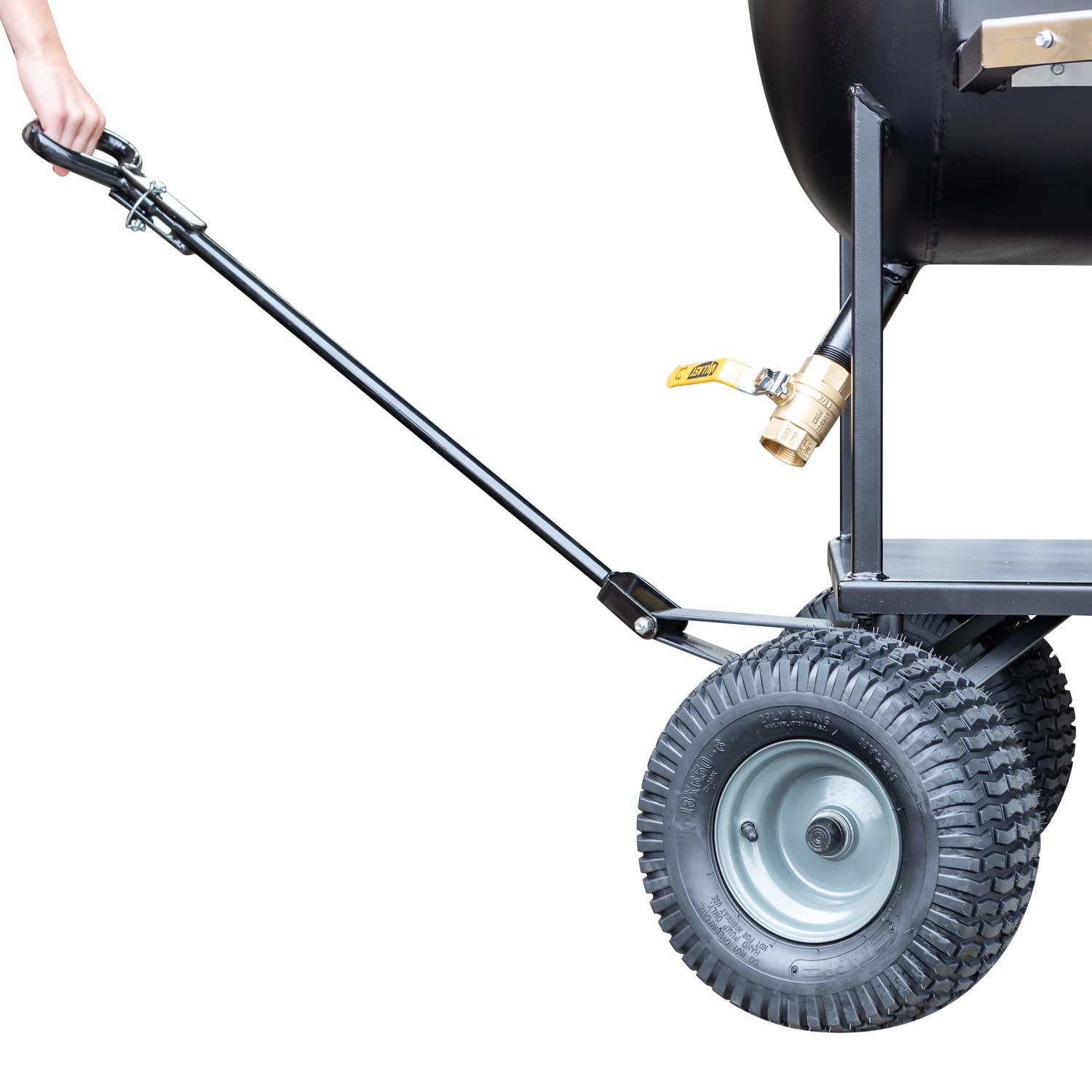

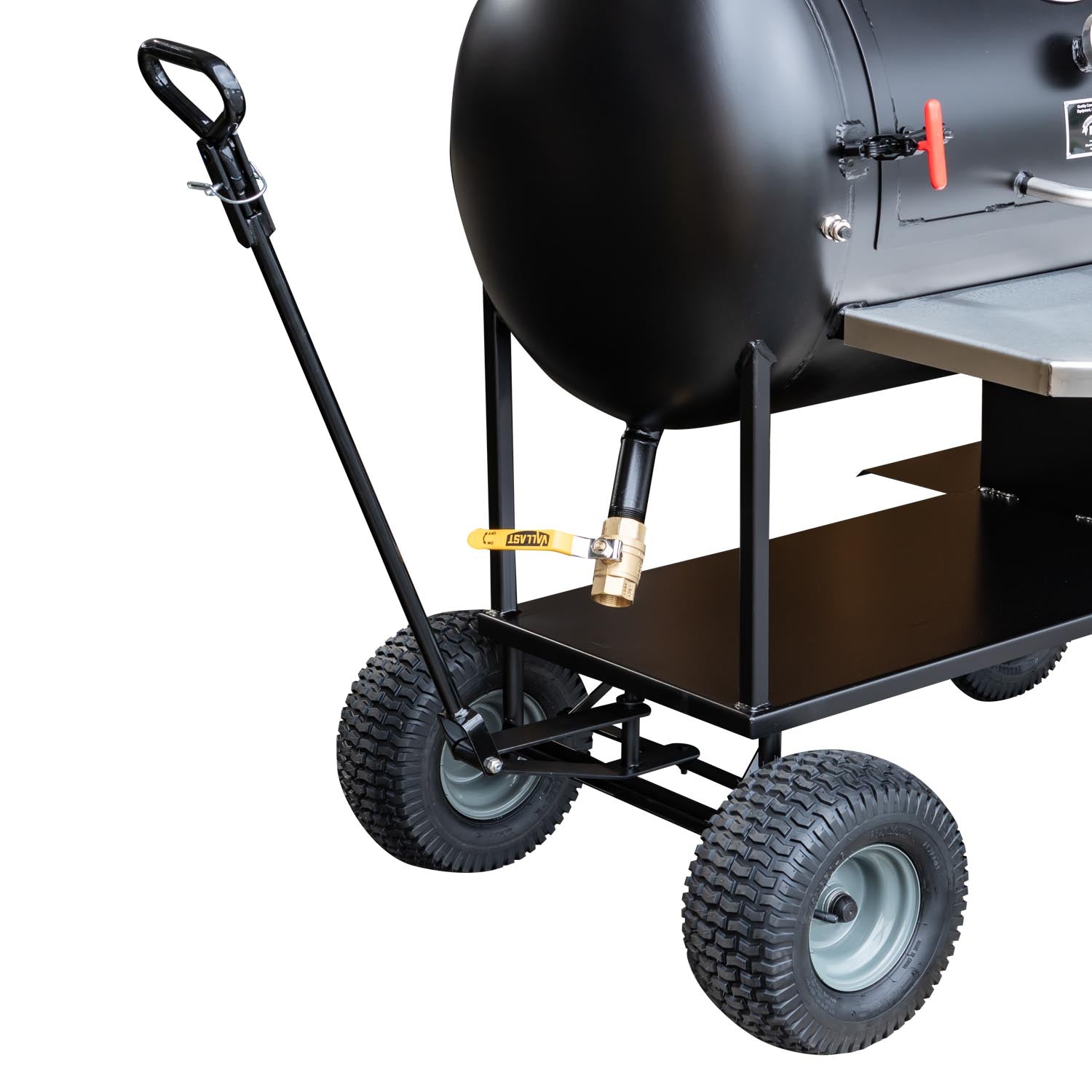

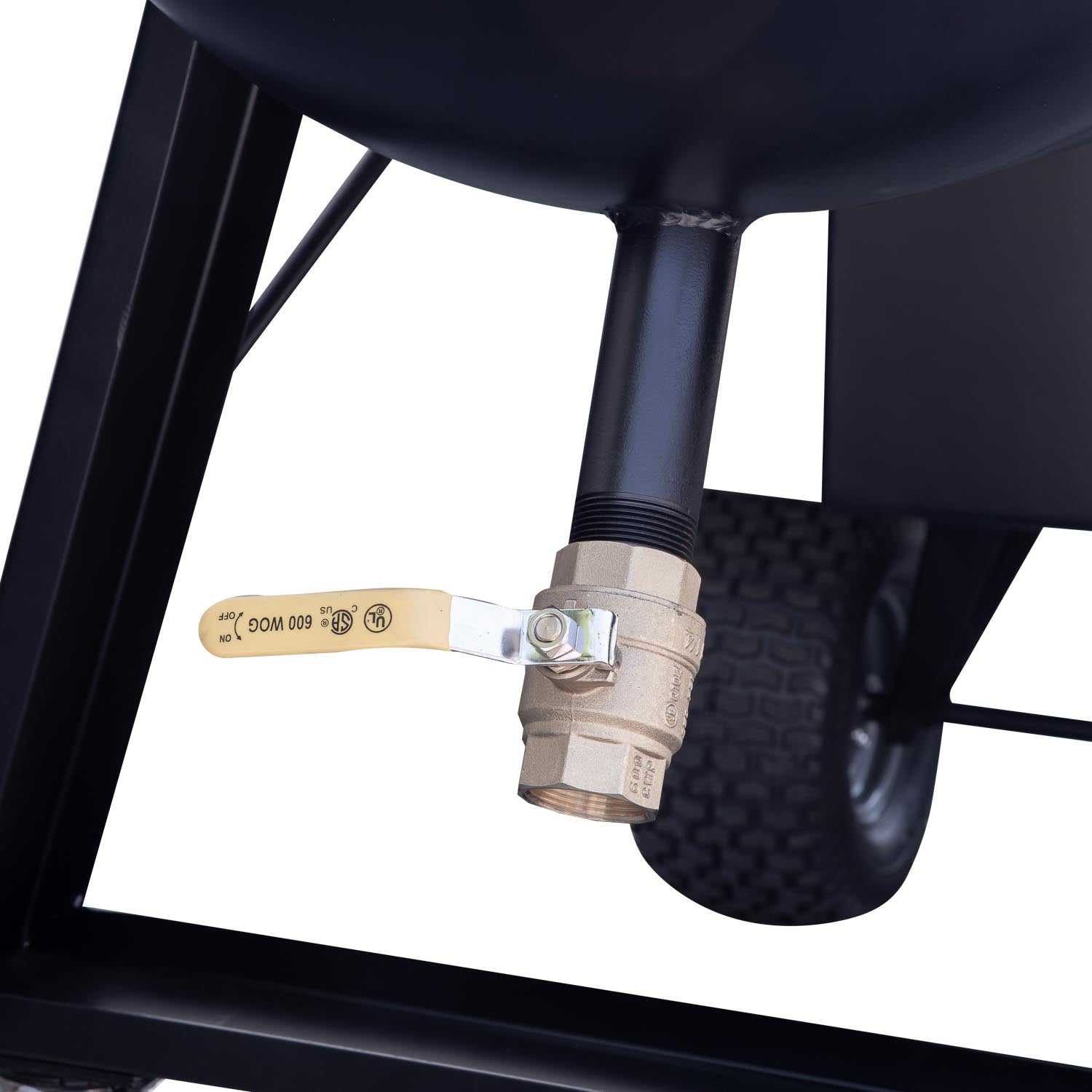

- Drain with ball valve for draining the tank
- Stainless steel handles
- Door on one side of smoker

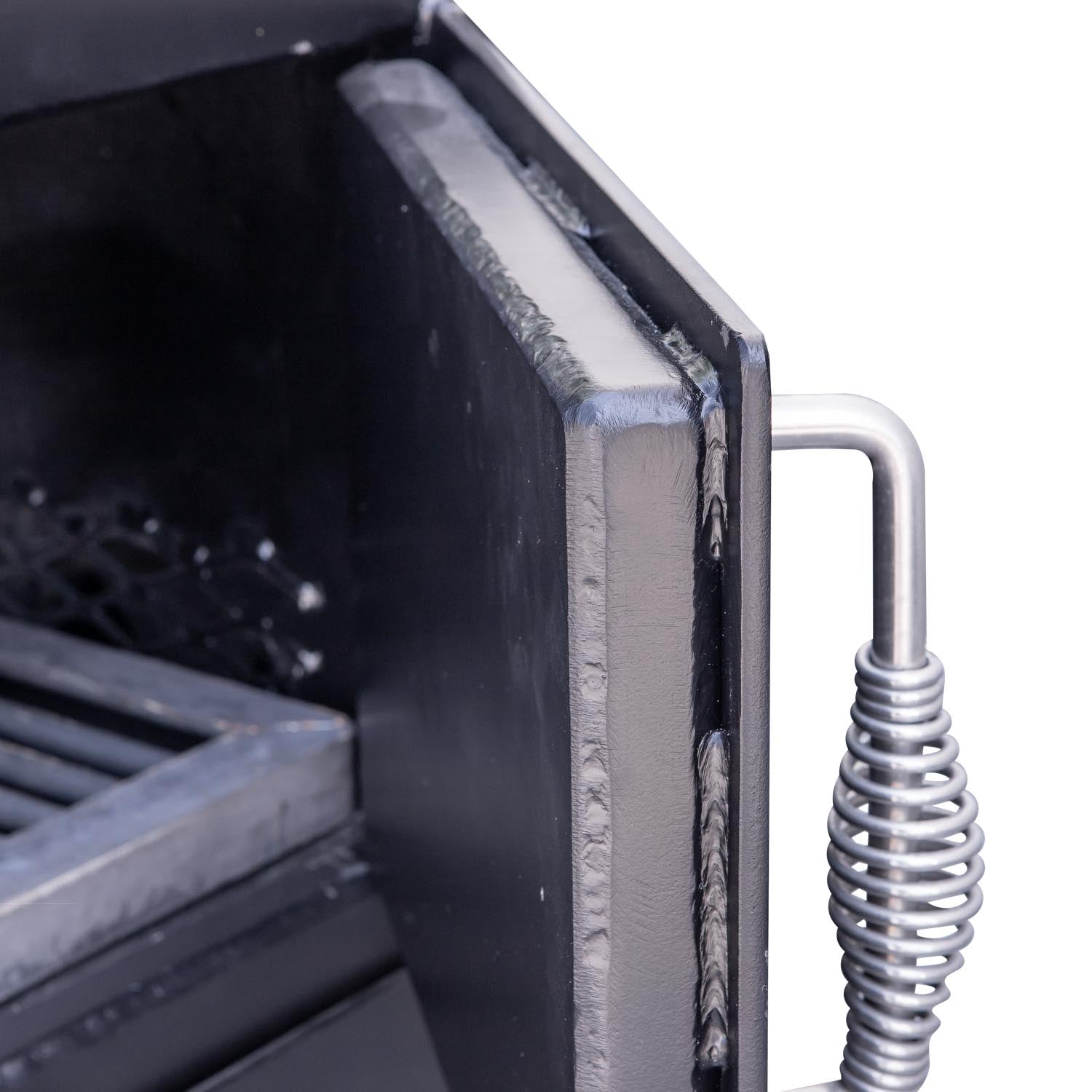

- Stay cool handles and firebox door
- Exterior work shelf
- Stainless steel calibratable thermometer

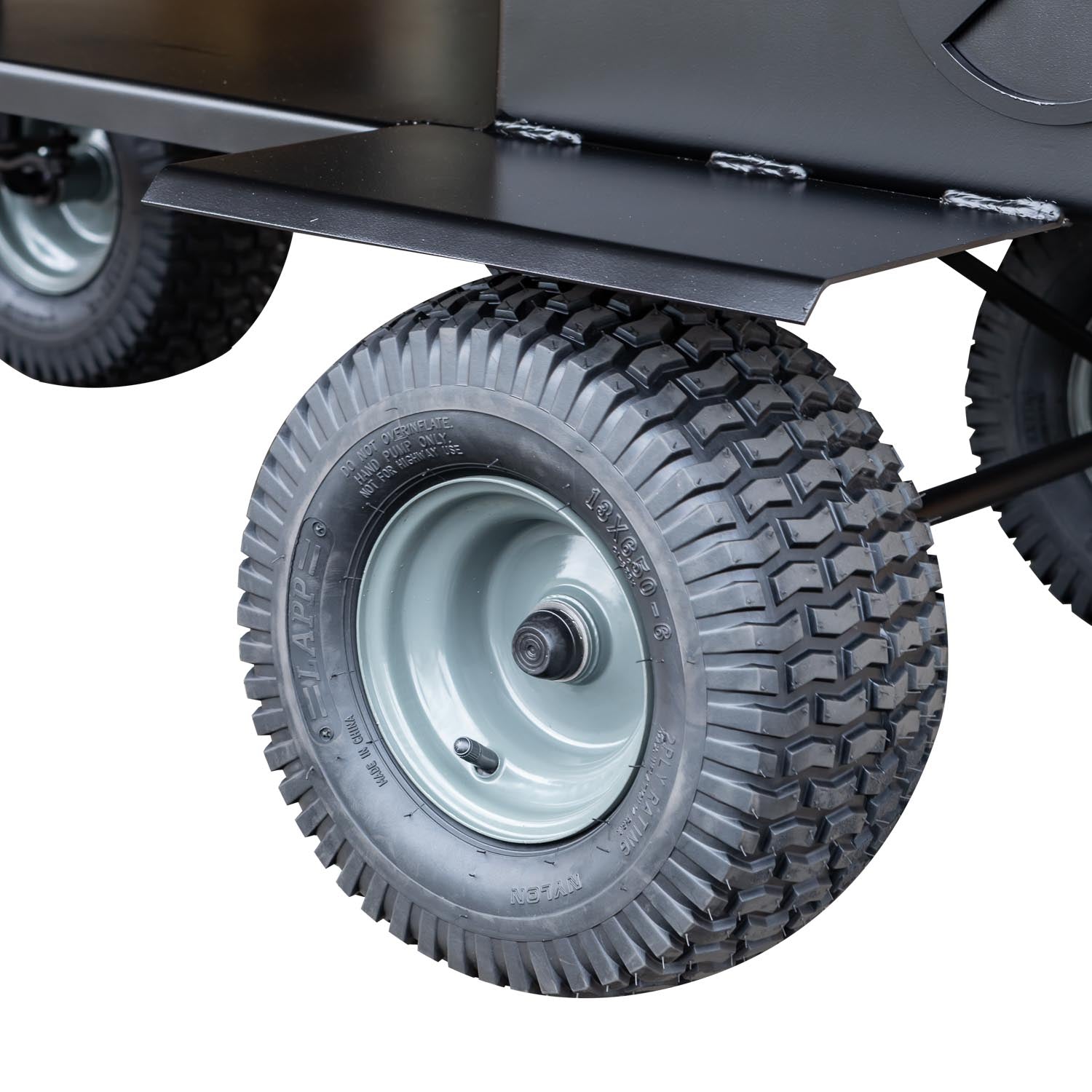

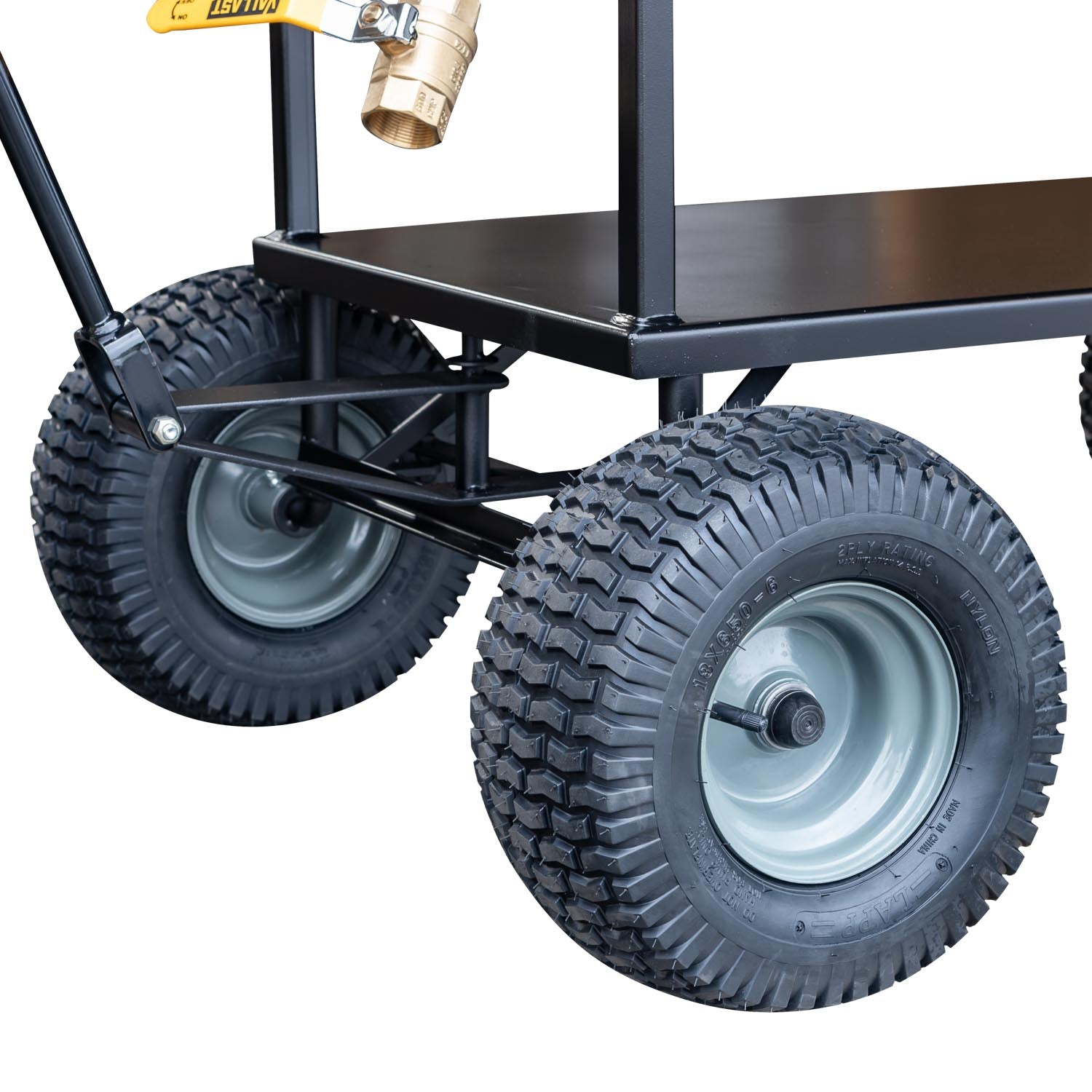

- 13" turf tires
- 8" heavy-duty locking casters
- Heat baffles on firebox protect the tires from excessive heat.

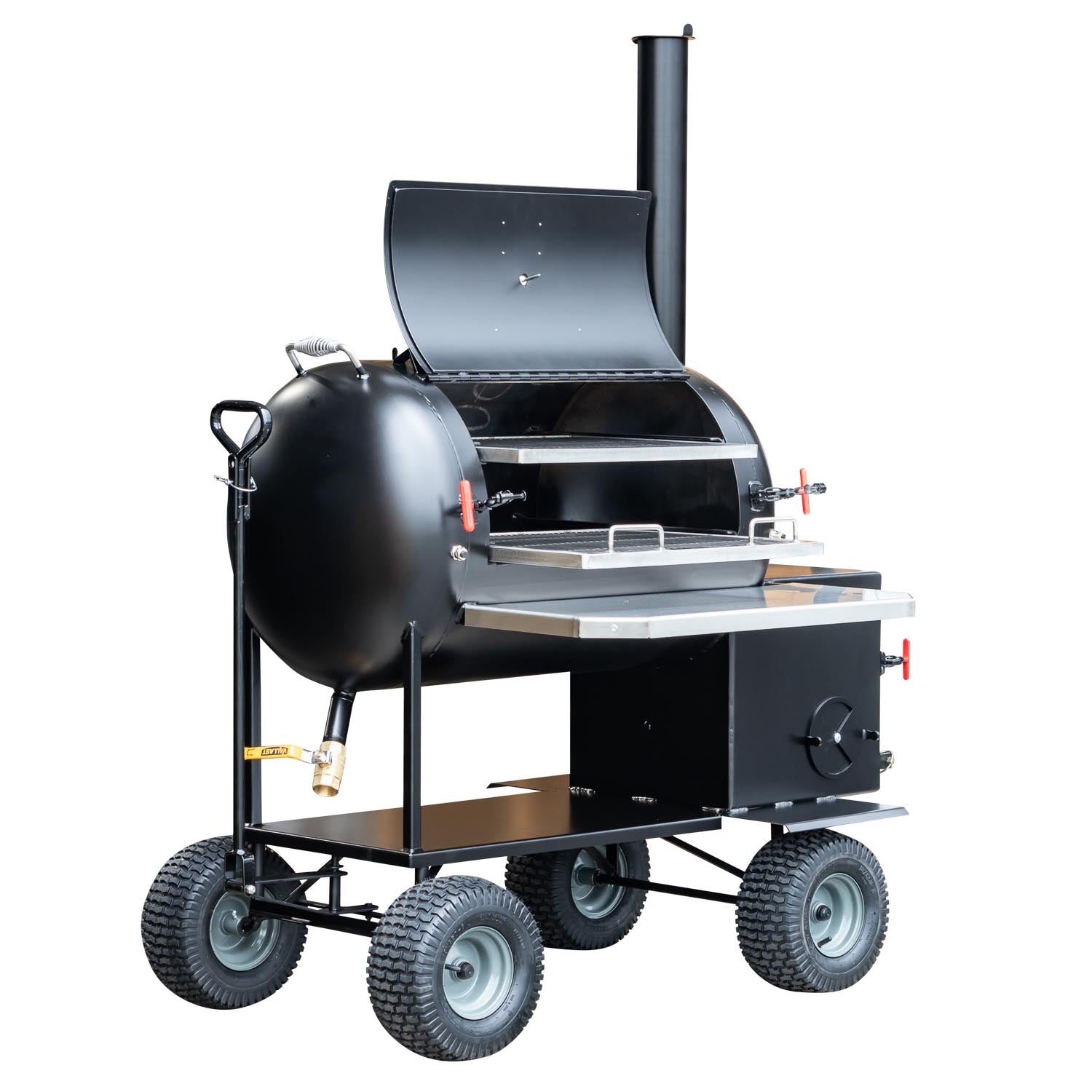

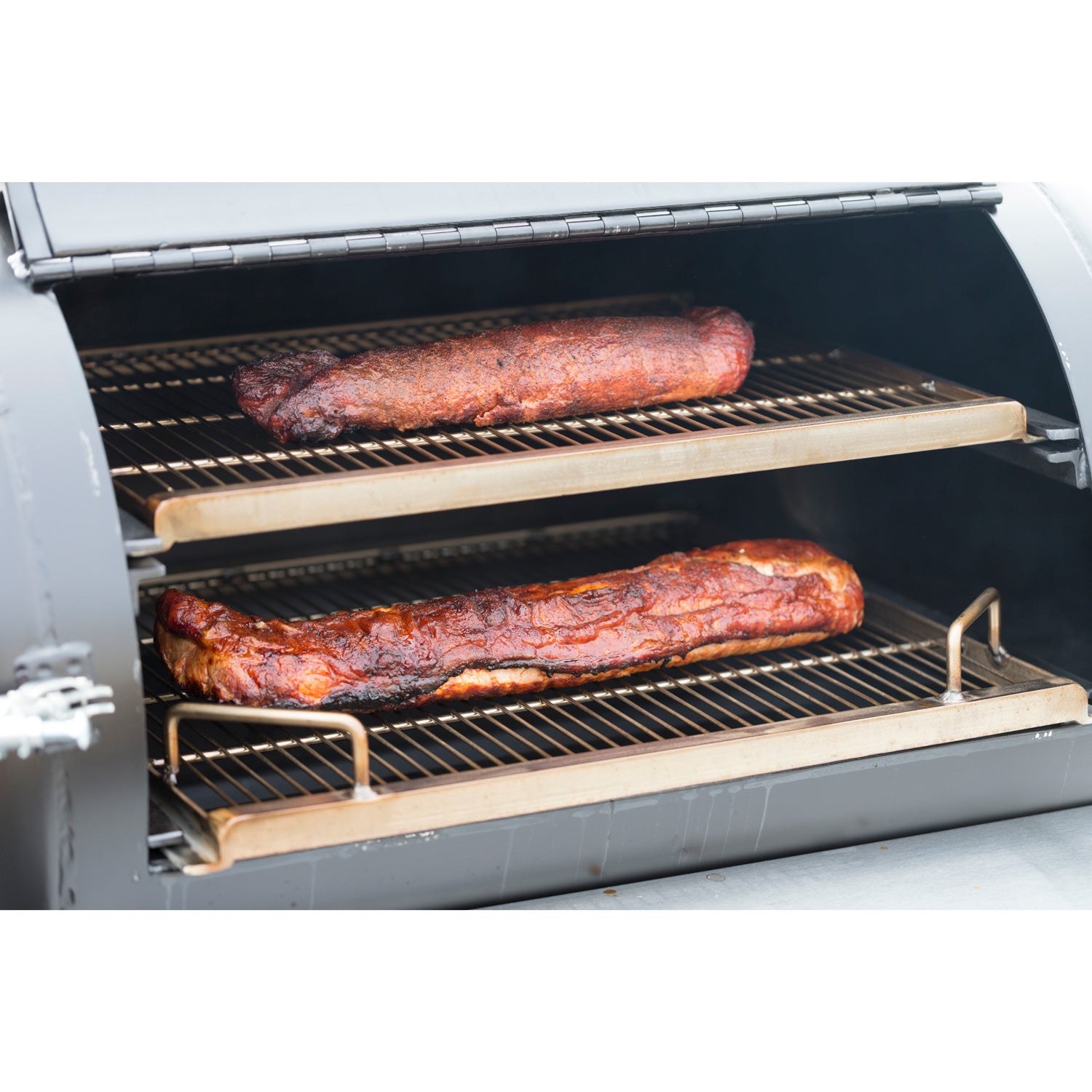

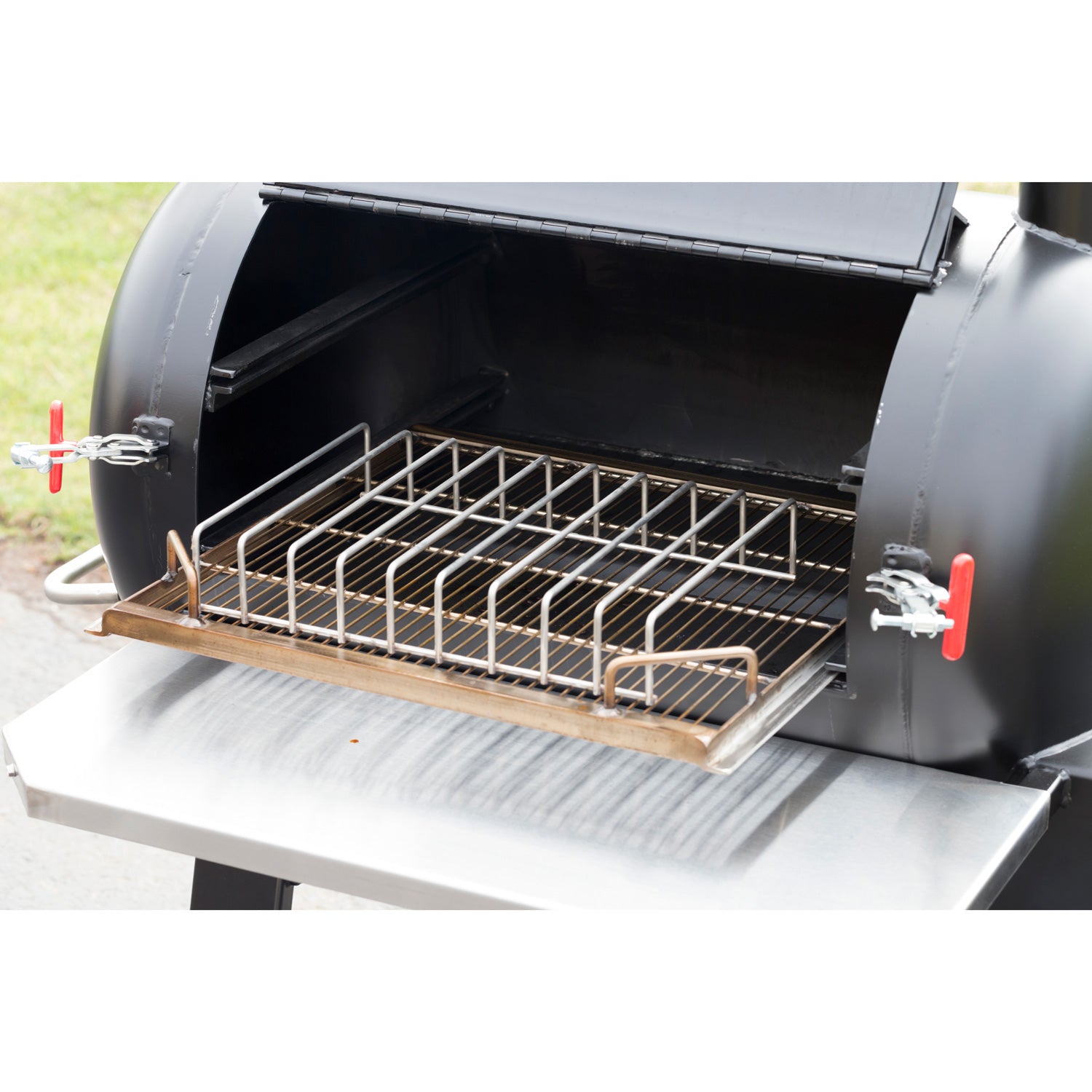

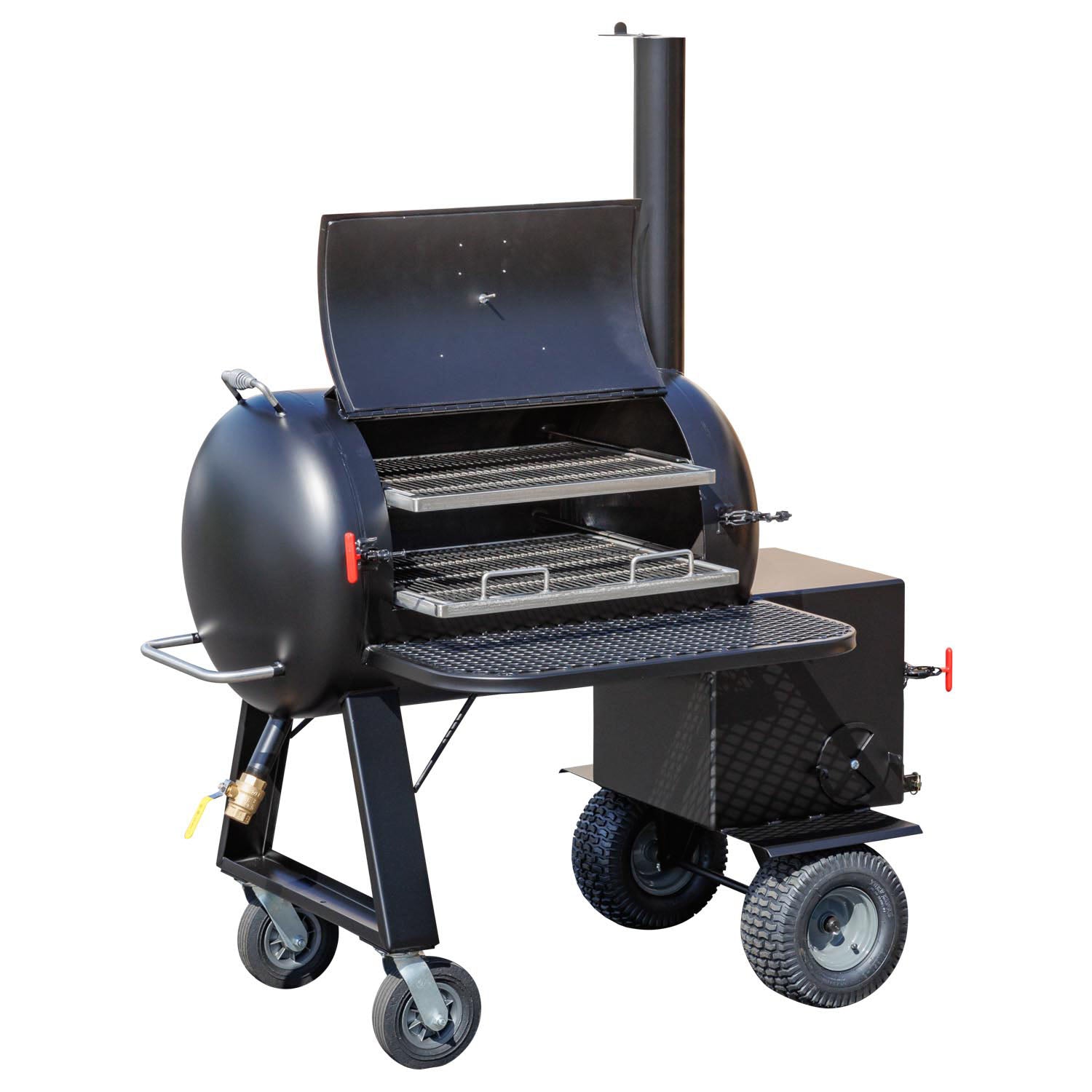

- Cooking grates are made of rust-free food-grade T304 stainless steel rod and easy to clean.
- Built-in water pan helps keep your meat moist when water smoking with apple juice or other liquid.
- Tanks are made of 3/16” plate steel and fireboxes of 1/4” plate steel and painted with black heat-resistant paint in an attractive matte finish.
Specifications
| Overall Dimensions | 76”h x 64”l x 44”w |
| Cooking Area | 7.29 sq. ft. (1050 sq. in.) |
| Top Grate Dimensions | 25" x 20" |
| Space Above Top Grate | 4.5” |
| Bottom Grate Dimensions | 25" x 22" |
| Space Between Grates | 5.5” |
| Grate Style | Wire Grid With 1/2” Spacing |
| Tank Dimensions | 23.375” x 43.25” (70-gallon) |
| Metal Thickness on Tank | 0.1875” |
| Fire Box Dimensions | 18.5” Cube (Inside: 18” x 18” x 13”) |
| Metal Thickness on Fire Box | 0.25” |
| Net Weight | 535 lbs. |
| Shipping Weight | 635 lbs. |
| Capacity of Pork Butts | 7-8 |
| Capacity of Baby Back Ribs | 7-8 |
| Capacity of Spare Ribs | 6 |
| Capacity of Whole Briskets | 5-6 |
| Capacity of Whole Chickens | 12 |
| Capacity of Whole Pigs | 20-25 lbs. |
Lead Time & Shipping
Meadow Creek products are made to order, with an estimated 2–4 week lead time.
All Meadow Creek products ship via freight. Shipping is calculated using flat-rate tiers based on product weight. Large trailers require a custom freight quote — we’ll contact you with the rate before finalizing your order.
